Диагностический сканер C501 для автомобилей BMW, OBD2, для выявления неисправностей, трансграничный

Описание

C501 可以代替C110+ C310+ C500,BMW检测仪产品,多语言,有英文,繁体中文,德文

Creator C501 is an original multi-system scanner for BMW, Mini and OBDII/EOBD, it is multi-language available, update online.

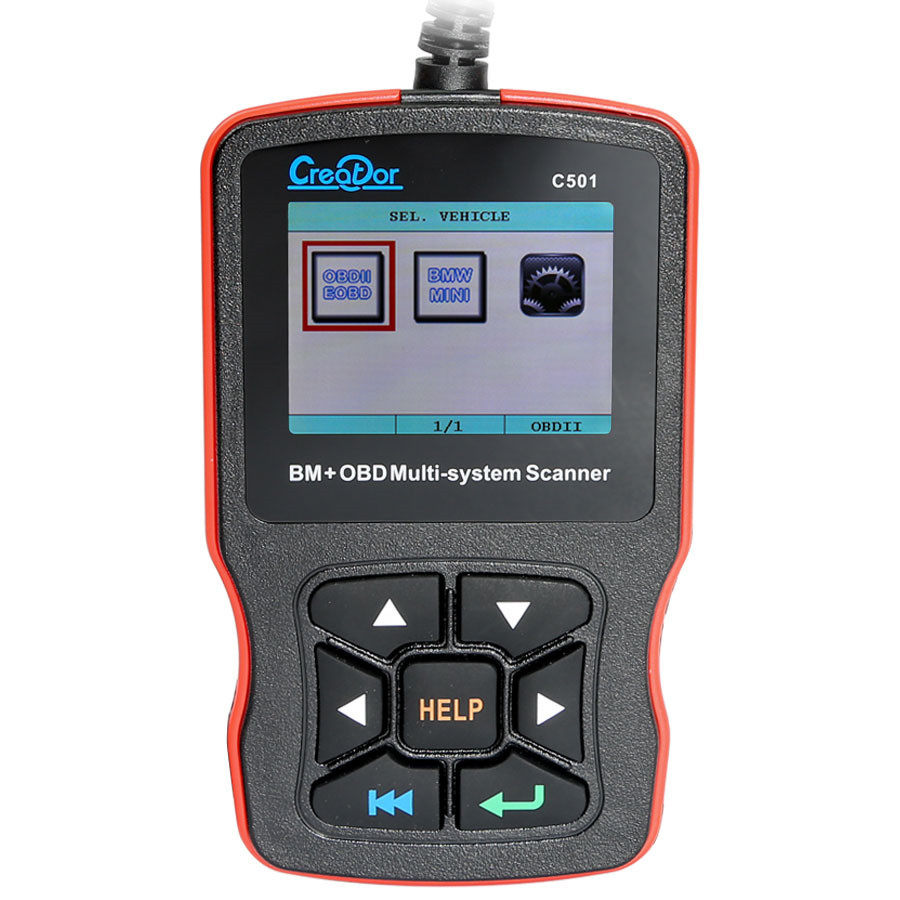

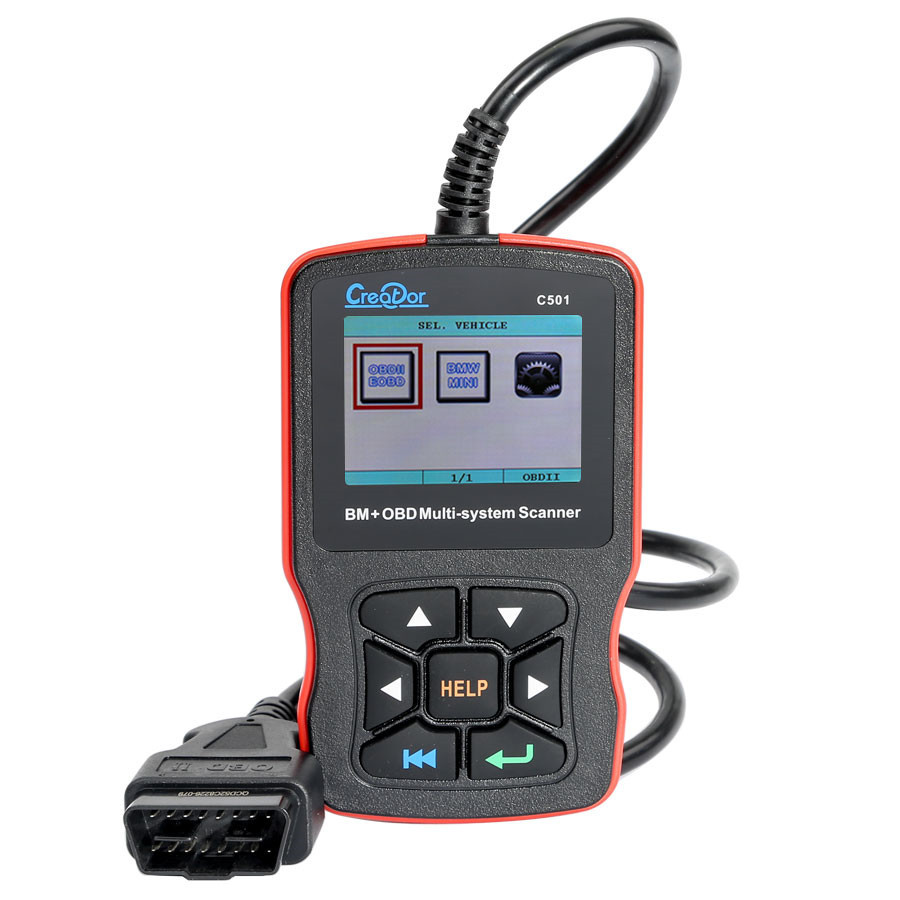

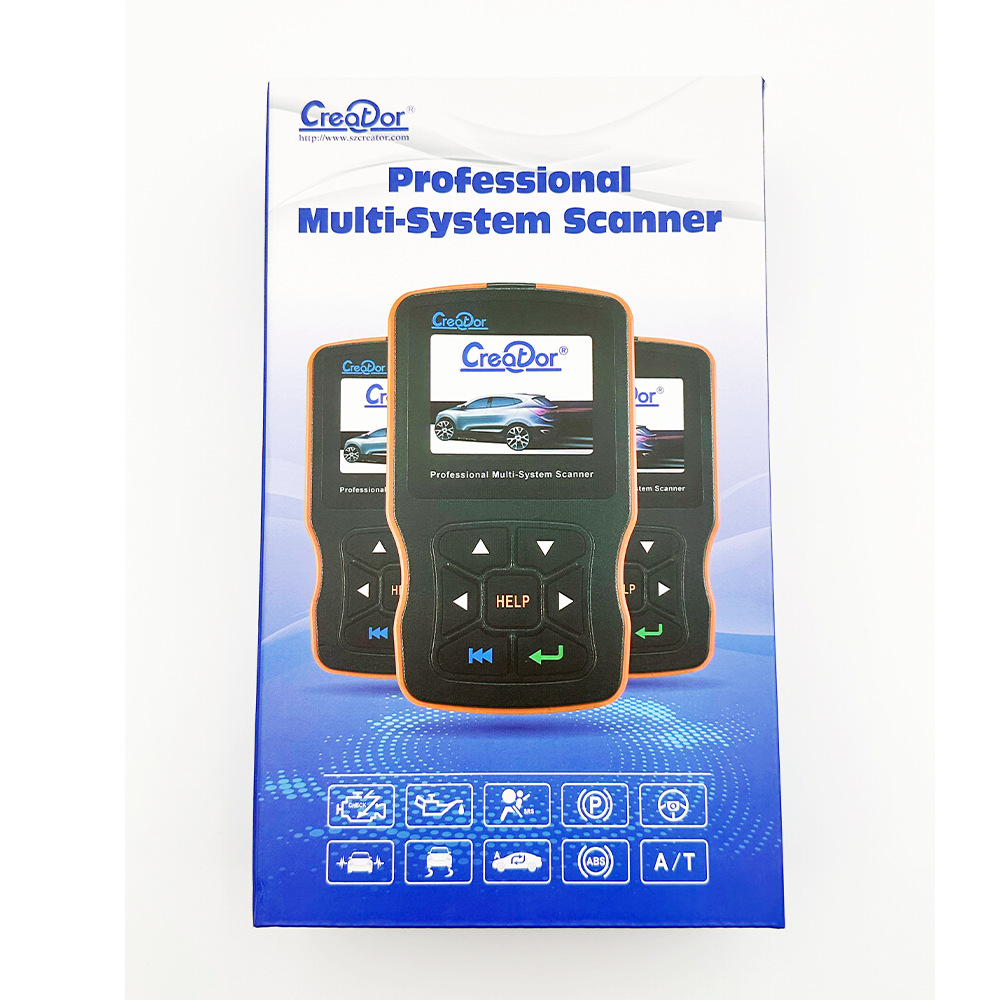

Creator C501 BMW & OBDII/EOBD Multi-System Scanner

C501 BMW Software Description:

Works on the BMW between 2001 to 2016
1 Series: 1'_E81/E81/E87/E88,1'_F20/F21
2 Series: 2'_F22/F23,2'_F45/F46,2'_F87
3 Series: 3'_Z3_E36,3'_E46,3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35,3'_F80
4 Series: 4'_F32/F33/F36,4'_F82/F83
5 Series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 Series: 6'_E63/E64,6'_F06/F12/F13
7 Series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71, X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z Series: 3'/Z3_E36,Z4_E85/E86,Z4_E89
I Series: I'_I01/I02
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56

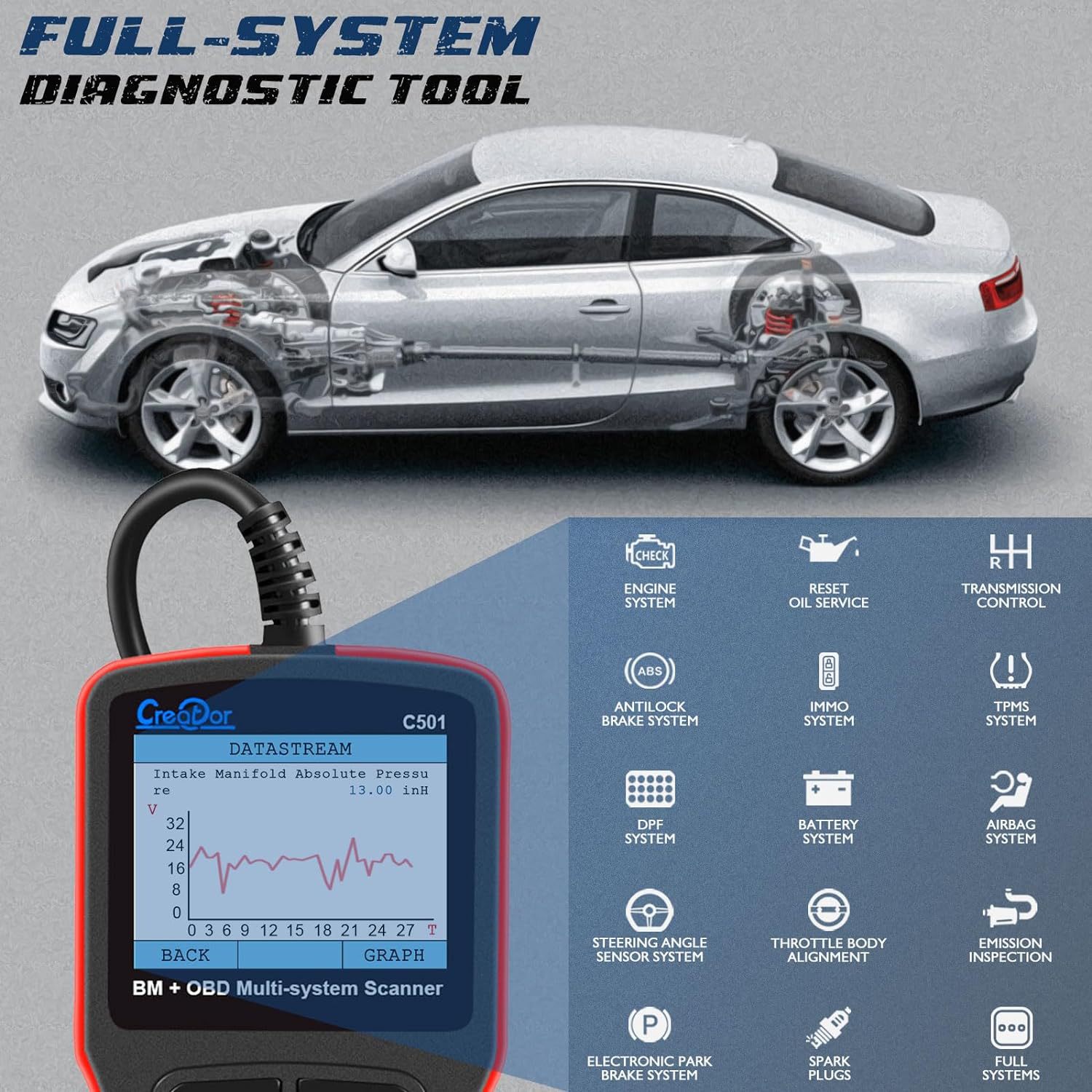

Compatible ECU systems: Drive , Chassis and Body all system
Functions: read trouble codes, clear trouble codes, display live data stream and graph display and vehicle version information.

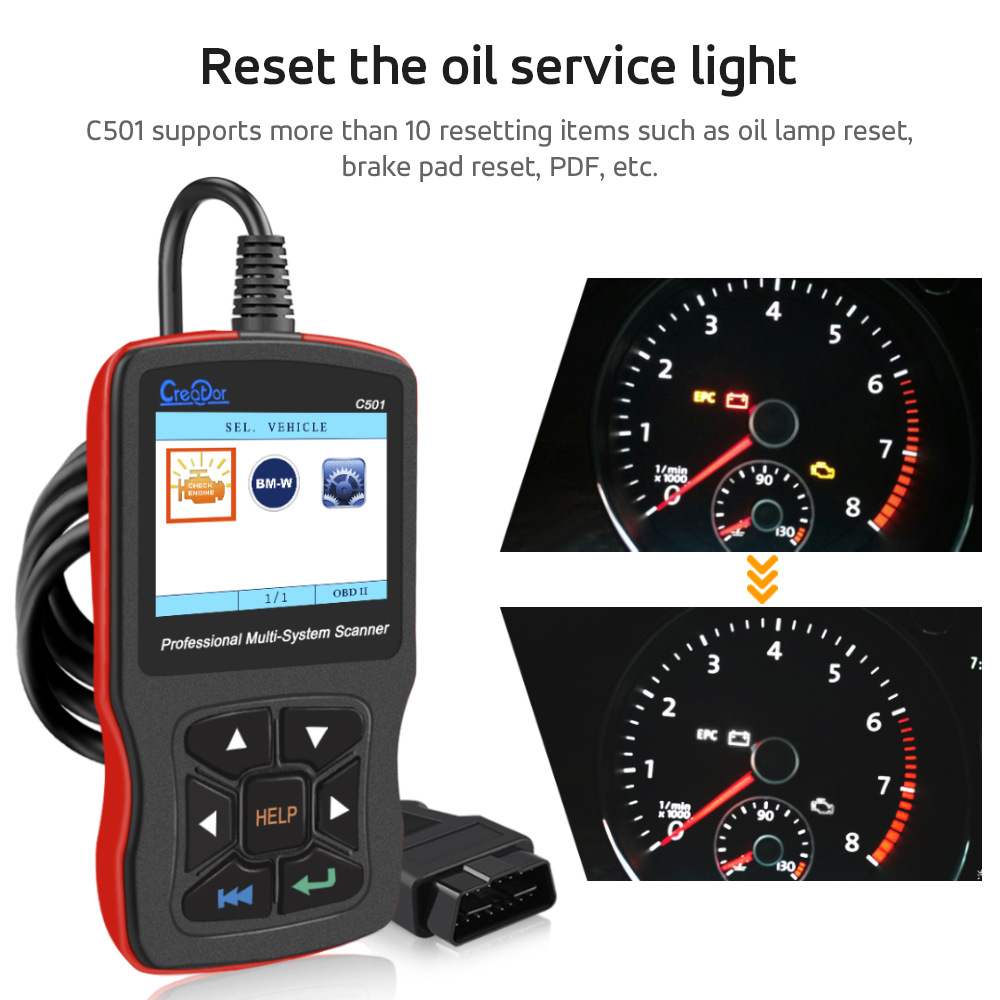

Clear adaptation, reset Engine oil

C501 OBD software language available: English, Chinese (Traditional), Spanish, German, Vietnamese

C501 BMW software language available: English, Chinese(Traditional), German

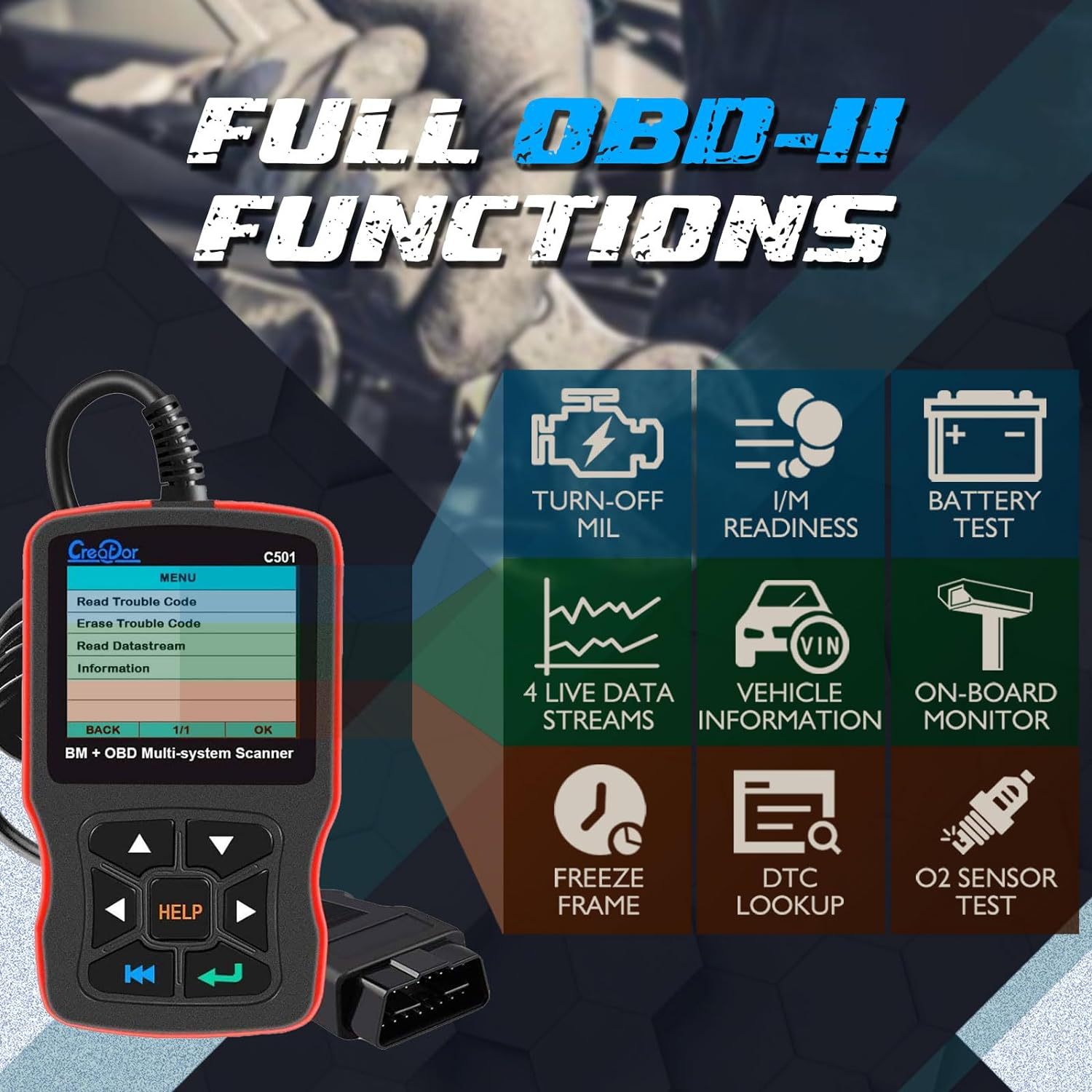

OBDII & EOBD Software Description:

Works on all 2001 and later OBDII compliant PETROL European vehicles
Works on all 2004 and later OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII compliant US and Asian vehicles
Easily determines the cause of the "Check Engine Light ( MIL)"
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Read I/M Readiness Status
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBD-II protocols

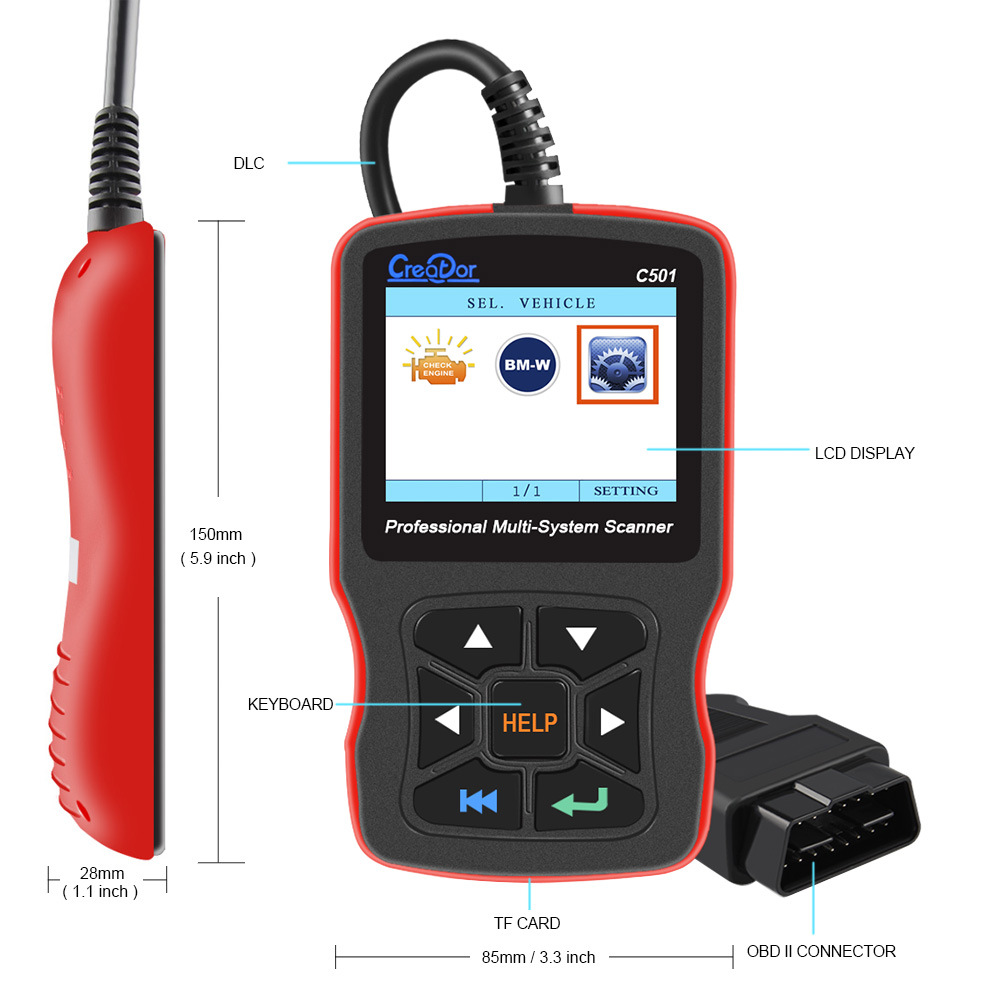

Creator C501 Specifications:
A) Display: Color, 320 x 240 pixel display with contrast adjustment
B) Operation Temperature: - 20 ℃ -- 75 ℃
C) Storage Temperature: -40 ℃ -- 120 ℃
D) Power: 8V -- 24V

Product Troubleshooting
Vehicle Linking Error

A communication error occurs if the scan tool fails to communicate with the vehicle's ECU (Engine Control Unit).

You need to do the following to check up:
A) Verify that the ignition is ON;
B) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
C) Verify that the vehicle is OBD2 compliant;
D) Turn the ignition off and wait for about 10 seconds. Turn the
E) Ignition back to on and continue the testing.
F) Verify the control module is not defective

Scan Sool Soesn't Power Up

If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
A) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
B) Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
C) Check vehicle battery to make sure it is still good with at least 8.0 volts.

Package iList:

1pc x C501 Machine
1pc x User's Manual
