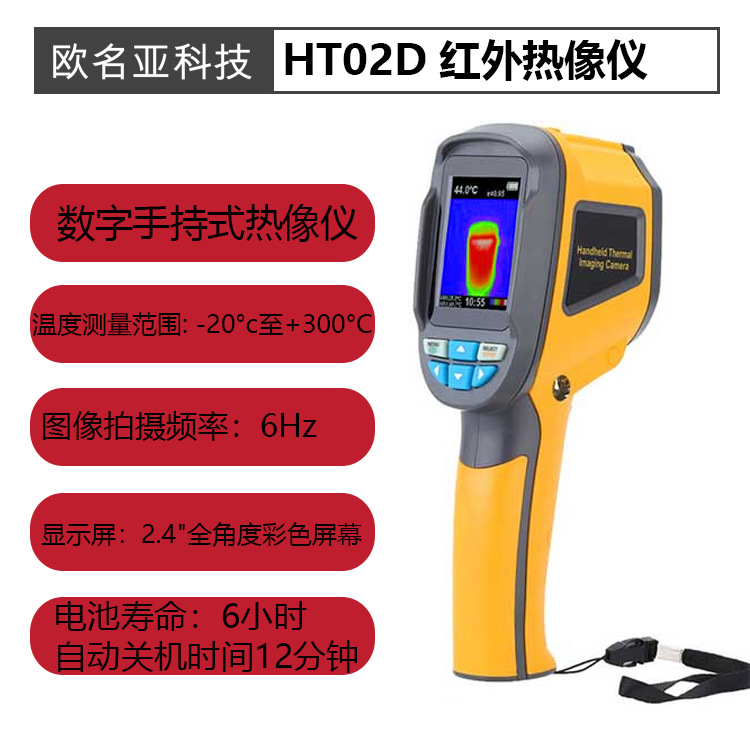

HT02D цифровой портативный инфракрасный тепловизионный прибор 6 Гц частота изображения 1024 общая пиксельная инфракрасная визуализация

Описание

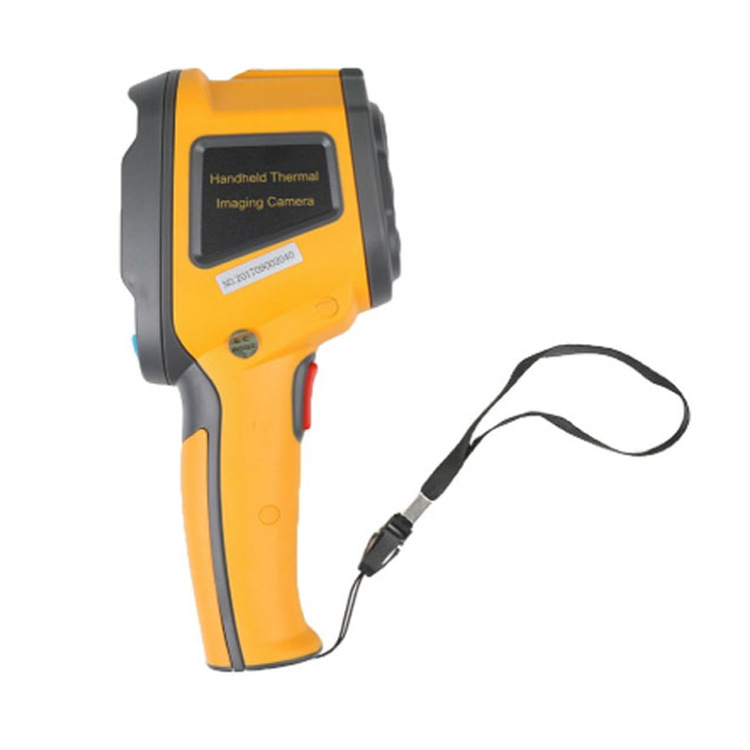

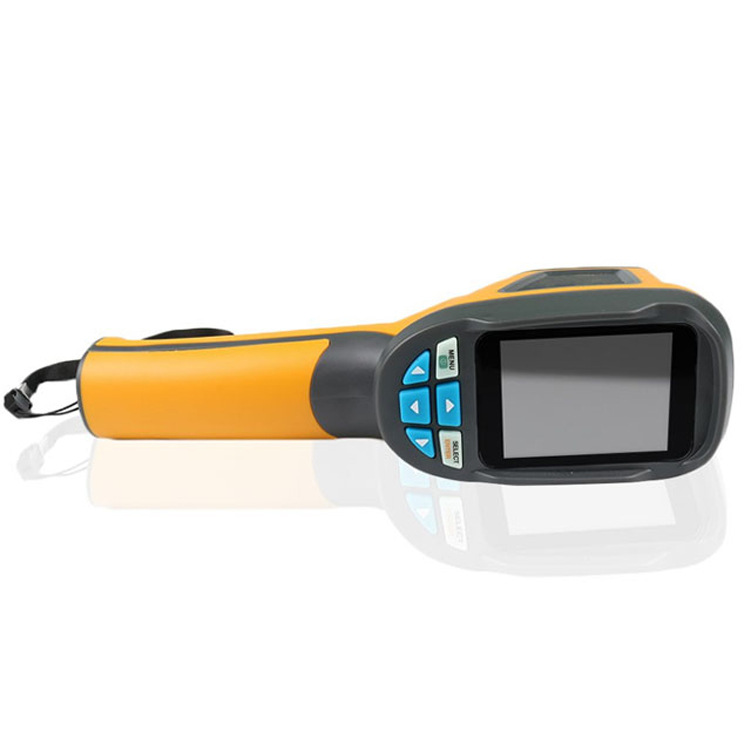

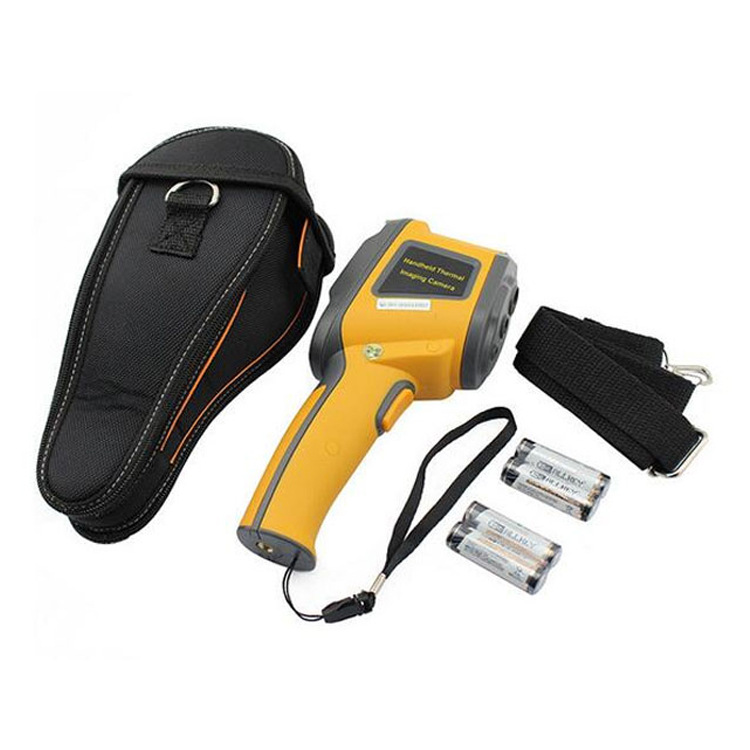

HT02D digital handheld thermal imager

description:

*2.4-inch full-angle high-resolution color screen, easy to see the screen
*The resolution of infrared image/visible light image is 32×32 (1024 pixels)/0.3 megapixels
*Viewing options are 5 kinds of full infrared to full vision, mixed Visible light and infrared
*Suitable for overhaul of automobile engine, line maintenance of transformer room, air-conditioning maintenance, etc.
*Handheld thermal imaging cameras are widely used in electric power manufacturing industry, automobile industry, medical treatment, transportation, agriculture and other fields.

specification:

*Product size: 212*95*62mm

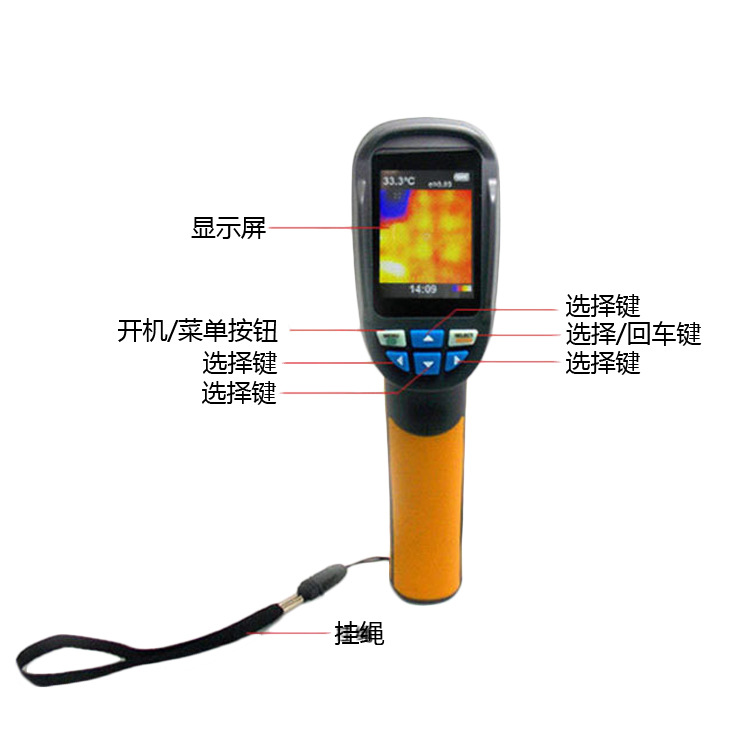

*Display: 2.4-inch full-angle high-resolution color screen
*Infrared image resolution: 32×32 (1024 pixels)
*Visible image resolution: 0.3 million pixels
*Field angle/minimum focal length ：33×33/0.5m
*Thermal sensitivity: 0.15°C
*Temperature test range: (-20°C-+300°C)
*Test measurement accuracy: +/-2% or +/-2°C (+/ -2% or -4°F)
*Emissivity: adjustable 0.1-1.0
*Image acquisition frequency: 6Hz
*Wavelength range: 8-11.5um
*Focal length: fixed focal length
*Palette: iron red, rainbow, rainbow high contrast, Gray (white glow), gray (black glow)
*Memory card: small SD card
*File format: bmp
*Auto shutdown time: 12 minutes.
*Working temperature: -5°c to +40°C
*Storage temperature: -20°c to +50°C
*Relative temperature: 10%RH to 80%RH

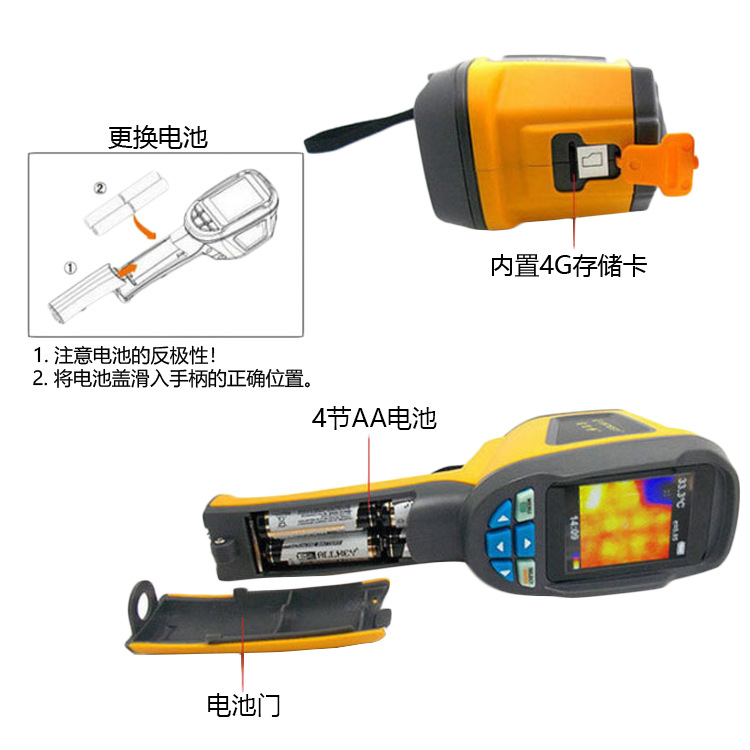

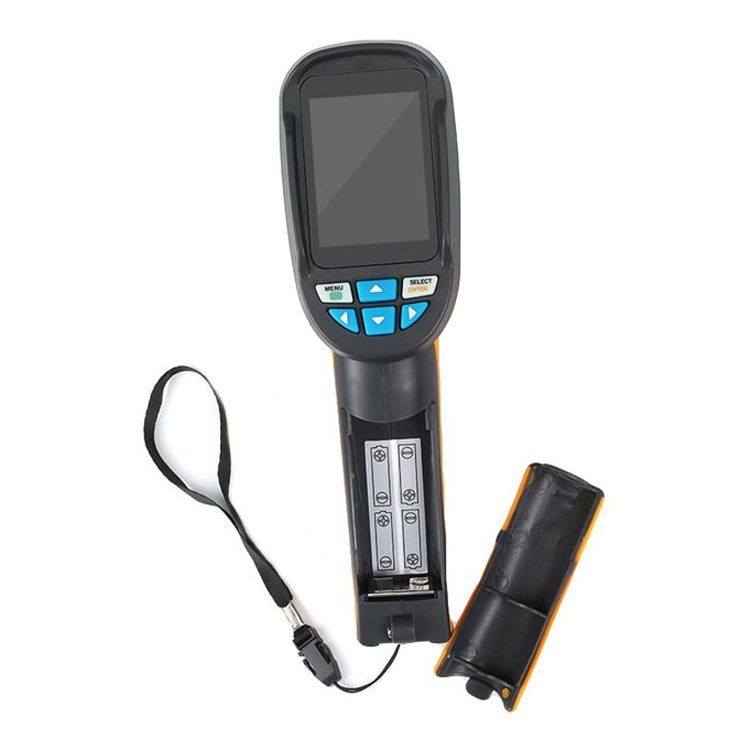

*Battery: 4xAA batteries (not included)

Note:

• If the instrument has not been used for a long time, please remove the battery.
• Do not use the instrument in an explosive, flammable, humid or corrosive environment.
• There may be slight errors due to different hand measurements.
