Бытовой интеллектуальный счетчик ватт-часов DDS662 электронный однофазный 220 В направляющая Миниатюрный цифровой дисплей кондиционер счетчик энергии

Описание

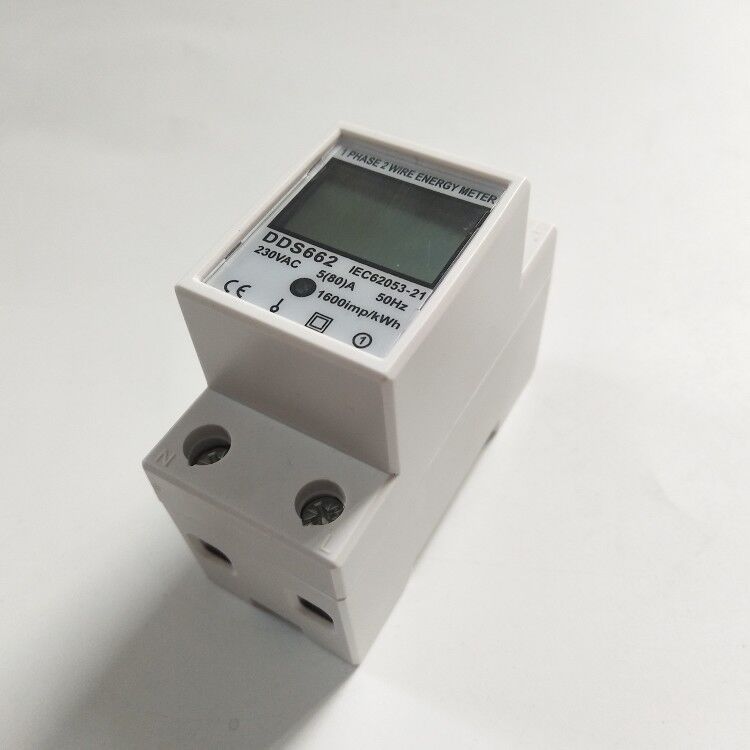

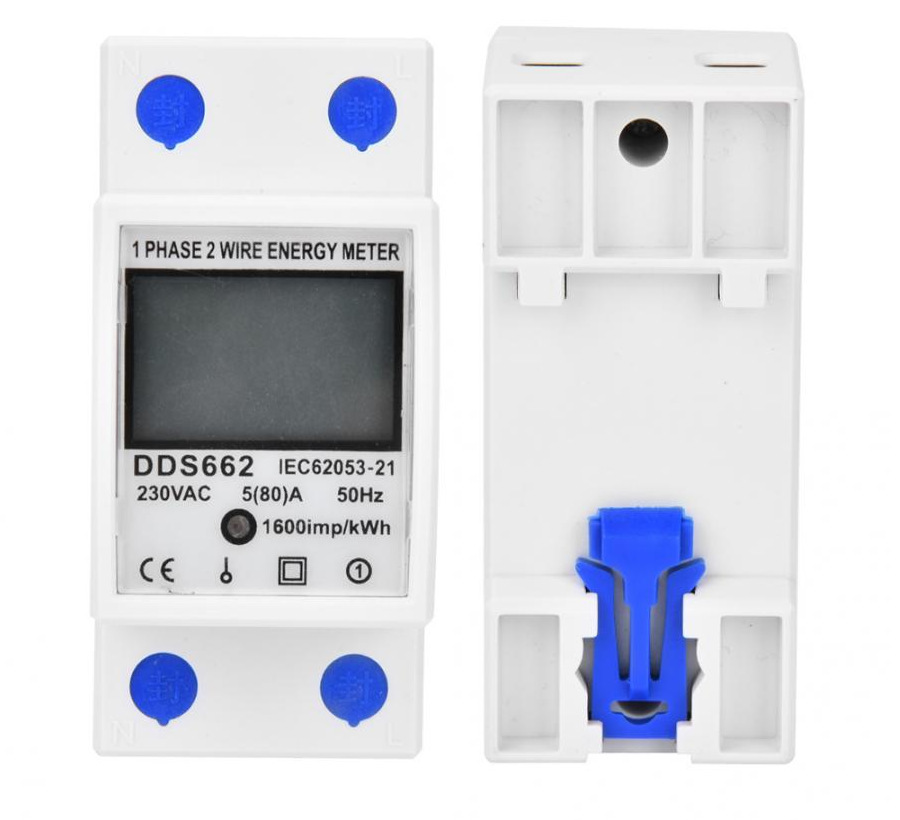

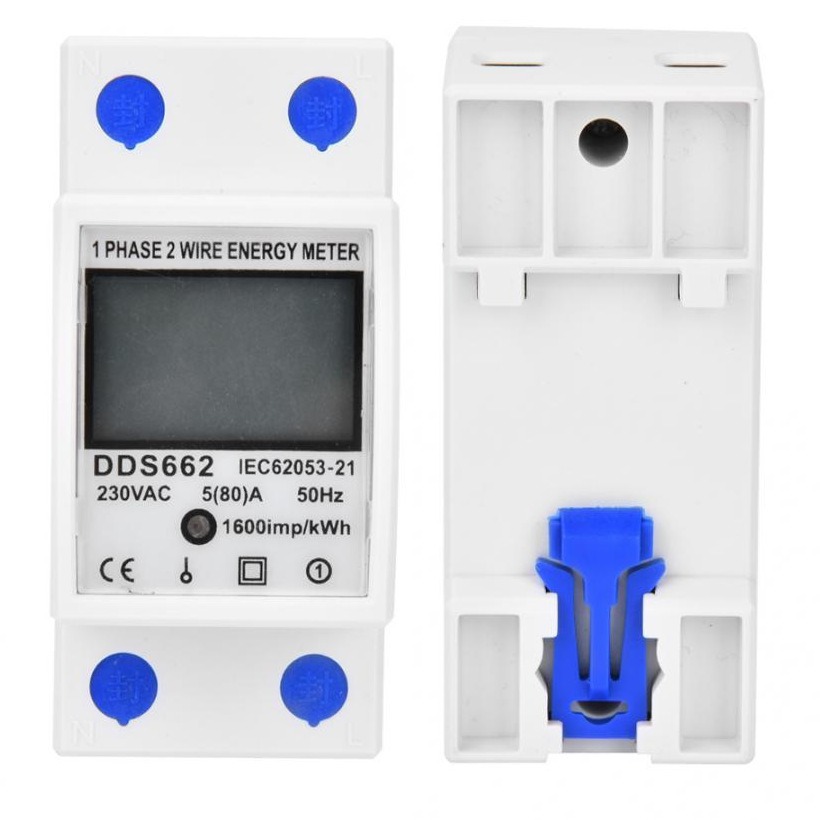

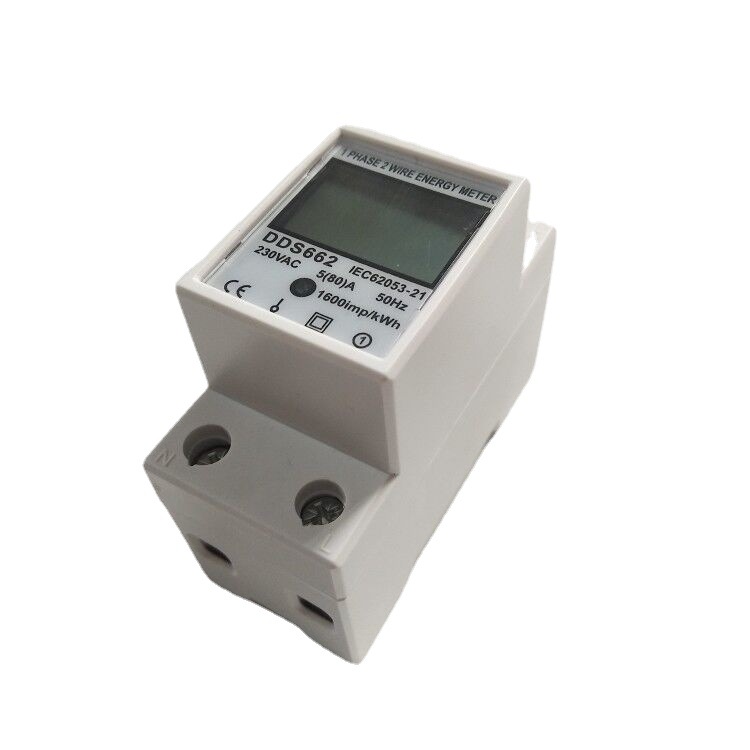

0-80A DDS662 LCD Backlight Digital Display Single Phase Electronic Energy KWh Meter

Features:
1. 35mm DIN Rail mounting meets the standards of DIN EN50022.
2. 17.5mm pole width meets the standards of DIN43880.
3. LCD backlight digital display, no reset button, to avoid human manipulation with the data.
4. It displays energy, voltage, current ,power.
5. Red LED energy pulse signal.
6. Embedded end cover, ensuring power supply safety.
7. With the features of good reliability, small size, light weight, beautiful appearance and easy installation.
8. Adopt microelectronics and digital processing technology to measure electric energy, accurate and reliable.
9. Large scale integrated circuits and precision SMT technology, with good electromagnetic interference resistance and stable performance.

Specification:
Material: Plastic
Model: DDS662
Accuracy: First Grade
Reference Voltage: 220V/230V  50/60Hz
Reference Current (Max. Current): 5(80)A
Insulating Property: 1min 4KV Alternating Voltage, 1.2/50us 6KV Waveform Impulse Voltage
Display: LCD Backlight / LCD Display
Installation: 35mm DIN Rail
Wiring Method: Up-out and down-in/up-in and down-out
Power: 17000W
Environment Temperature: -20C~+50C
Pole Width: 17.5mm/0.7in
Functions: Display electricity, voltage, current, frequency, power factors

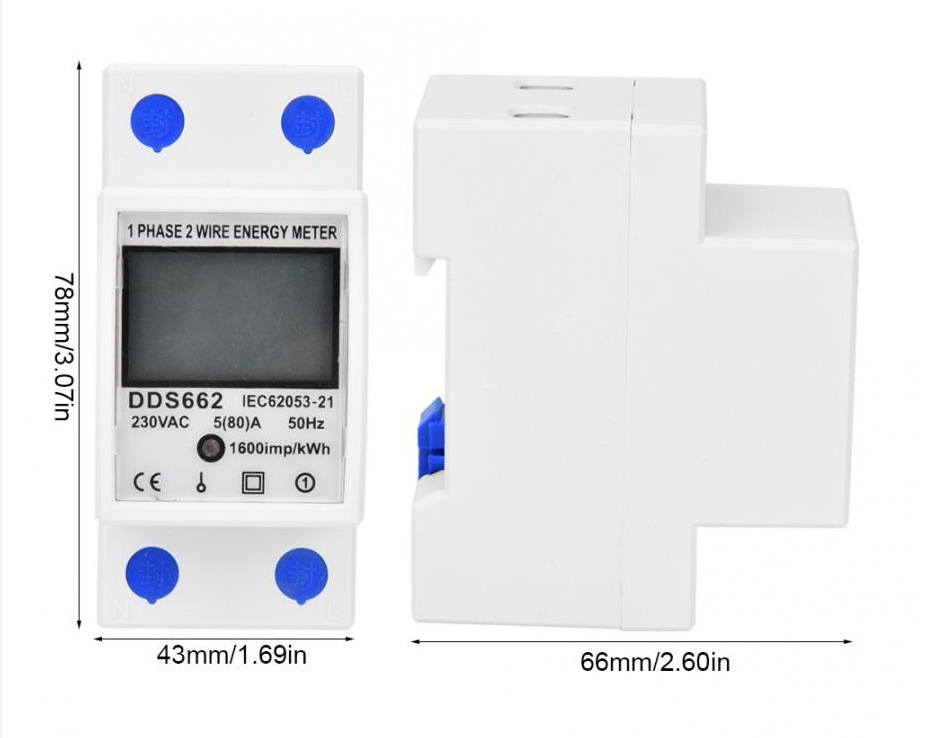

Package Size: Approx. 8.6 * 4.2 * 7.2cm/3.4 * 1.7 * 2.8in

Voltage :200-250VAC
Current: 0.1-80A
Energy: 0.1-99999.9 KWH
Power: 0.1-17000W\
