Измеритель плотности света решетки SDR504B Измеритель плотности света отражения чернильная пленка пластиковый тест оптической плотности
Вес:
0.48 кг
Всего продаж:
100 шт.
Минимальное количество для заказа:
1 шт.
Измеритель плотности света решетки SDR504B Измеритель плотности света отражения чернильная пленка пластиковый тест оптической плотности
от 372 500.00 ₽ за 1 шт.
-21%
372 500.00 ₽
Доставка по Китаю включена в цену
Оптом
от 1 шт.
372 500.00 ₽
Описание
光栅分光密度仪SDR504B简介
SDR504B是速德瑞公司独立开发的完全拥有自主知识产权的45/0几何光学结构的国产光栅分光密度仪，完全符合标准ISO 5-4，支持ISO 13655标准规定的MO,M1，M2,M3测试条件，可以准确实现ISO Status T、 E、A、I密度测量。
YD50系列仪器稳定、测量密度、色度数据准确、功能强大，便携式分光密度仪配备多种测量口径，在油墨印刷厂、造纸厂、交通路标行业、纺织服装印染等行业，在科研机构、质量检测机构、实验室领域均有广泛应用。
在CIE推荐的45/0几何光学照明条件下，基于ISO 13655标准规定的MO,M1，M2,M3测试条件，该仪器可准确测量样品的反射率数据，在多种颜色空间下，能够对各种密度指标、色差公式、颜色指数进行准确测量和表述。该仪器在在各类产品的色差品质管控方面也有广泛的应用。仪器配有高端颜色管理软件，连接电脑使用，实现更多功能扩展。
光栅分光密度仪SDR504B特点
1.45/0几何光学结构，符合CIE No.15，支持ISO 13655标准规定的MO,M1，M2,M3测试条件，准确实现ISO T、E、A、I密度测量；
2.优美的外观造型与符合人力力学的结构设计；
3.采用高寿命低功耗的组合LED光源，包含UV光;
4.Φ2/4/8mm口径任意选择，适应更多被测样品;
5.测量样品反射光谱,CMYK密度、Lab数据准确，可用于准确颜色传递;
6.电子硬件配置高:3.5吋TFT真彩屏,电容触摸屏,凹面光栅，256像元双阵列CMOS探测器等；
7.USB/蓝牙4.0双通讯模式，适应性更广；
8.耐脏、稳定的标准白板;
9.大容量存储空间，可存储20000条以上测试数据
10.两种标准观察者角度，多种光源模式，多种表色系，符合多种标准的色度指标，满足各种客户对颜色测密度量的需求；
11.特别适合印刷厂过程控制、品质管控；
12.PC端软件有功能强大的功能扩展；
技术参数（中文）
|
产品型号 |
SDR504B |
|
照明方式 |
45/0(45环形均匀照明0°接收); |
|
特性 |
高精度分光密度仪，广泛应用于油墨印刷、菲林加工、纺织印染、塑胶电子等行业准确颜色测量和品质控制，尤其适合油墨印刷中光学密度、网点增大等指标的准确测量和品质管控；根据产品特点，定制单一口径Φ2mm、Φ4mm、Φ8mm。 |
|
照明光源 |
组合LED光源，UV光源 |
|
分光方式 |
凹面光栅分光 |
|
感应器 |
256像元双阵列CMOS图像感应器 |
|
测量波长范围 |
400~700nm |
|
波长间隔 |
10nm |
|
半带宽 |
10nm |
|
测量条件 |
符合ISO 13655测量条件： |
|
密度标准 |
ISO Status T、 E、A、I |
|
密度指数 |
密度值、密度差、网点面积、网点增大、叠印、印刷特性、印刷反差、色调误差和灰度，密度扫描 |
|
测量口径 |
定制单一口径：Φ2mm、Φ4mm、Φ8mm可选 |
|
颜色空间 |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
|
色差公式 |
ΔE*ab,ΔE*94,ΔE*00,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE（Hunter） |
|
其它色度指标 |
WI(ASTM E313，CIE/ISO,AATCC,Hunter)， |
|
观察者角度 |
2°/10° |
|
观测光源 |
A,C,D50,D55,D65,D75,F2(CWF),F7(DLP),F11(TL84),F12(TL83/U30)，F1,F3,F4，F5，F6,F8,F9，F10(TPL5) |
|
测量时间 |
约1.5s |
|
重复性 |
密度值：0.01D以内 |
|
|
色度值：ΔE*ab 0.03以内（仪器预热校正后,以间隔5s测量白板30次平均值-M3除外） |
|
台间差 |
ΔE*ab 0.18以内（BCRA系列Ⅱ 14块色板测量平均值-M3除外） |
|
测量方式 |
单次测量，平均测量（2~99次） |
|
尺寸 |
长X宽X高=184X77X105mm |
|
重量 |
约600g |
|
电池电量 |
锂电池，8小时内5000次 |
|
照明光源寿命 |
5年大于300万次测量 |
|
显示屏 |
TFT 真彩 3.5inch，电容触摸屏 |
|
接口 |
USB，蓝牙®4.0双模（兼容2.1） |
|
存储数据 |
20000条 |
|
语言 |
简体中文，English，繁体中文 |
|
操作温度范围 |
0~40℃，0~85%RH（无凝露），海拔：低于2000m |
|
存储温度范围 |
-20~50℃，0~85%RH（无凝露） |
|
标准附件 |
电源适配器、数据线、内置锂电池、说明书、品管软件（官网下载）、黑白校正盒、保护盖、偏振滤色盒、定位板 |
|
可选附件 |
微型打印机 |
|
注： |
技术参数仅为参考，以实际销售产品为准 |
产品介绍（英文）

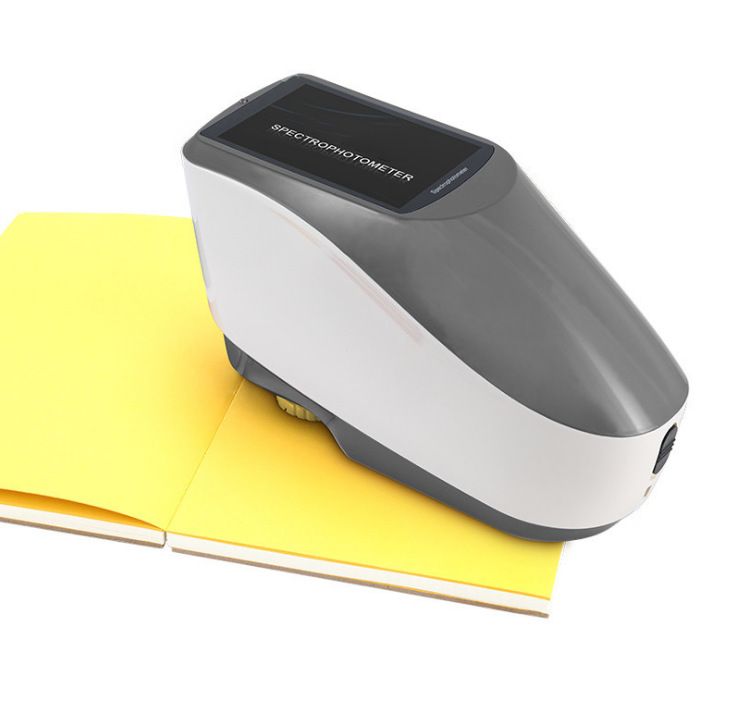

SPEEDRE launched new model SDR504B Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing.
Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.
Product Features
1. 45/0 geometrical optics structure, comply with CIE, the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters.
2. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

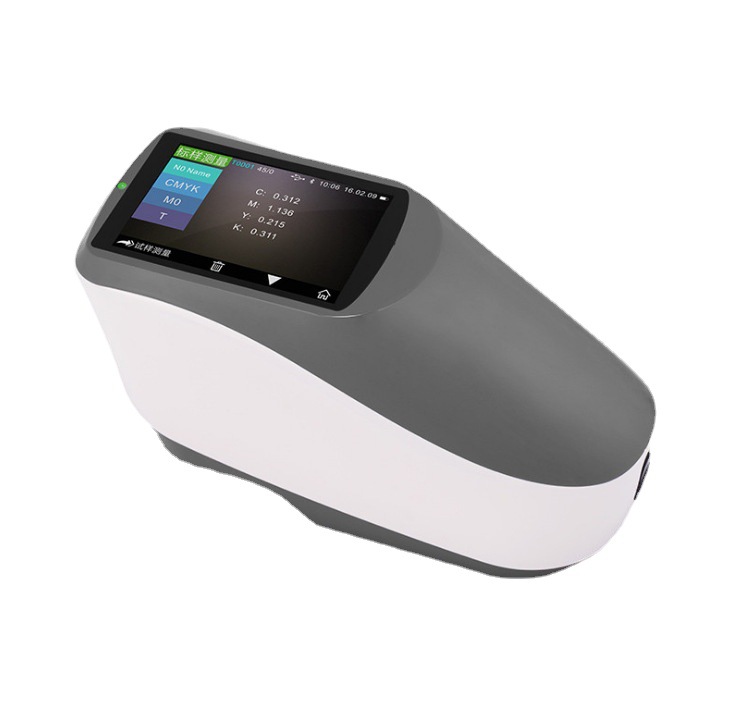

3. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；
4. Perfect combination of the beautiful appearance and the ergonomic structure design;
5. Optional apertures: Φ2/4/8mm, adapt to more samples;
6. Large-capacity storage space, over 20,000 test data
7. Combined LED light sources with long life and low power consumption, including UV light;
8. USB/Blue2.1 dual communication mode is widely useful;
9. Especially suitable for process control and quality control of printing plants;
10. PC software has powerful function expansion.
技术参数（英文）
|
Model |
SDR504B |
|
Measurement Geometry |
45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15 |
|
Features |
high accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm. |
|
Light Source |
Combined LED Light, UV Light |
|
Spectral separation device |
Concave Grating |
|
Detector |
256 Image Element Double Array CMOS Image Sensor |
|
Wavelength Range |
400~700nm |
|
Wavelength Pitch |
10nm |
|
Half Bandwidth |
10nm |
|
Measurement Conditions |
Compliance with ISO 13655 measurement conditions; |
|
Density Standards |
ISO Status A, E, I, T |
|
Density index |
Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning |
|
Measurement aperture |
Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional |
|
Color Spaces |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
|
Color Difference Formula |
ΔE*ab,ΔE*94,ΔE*00,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE(Hunter) |
|
Other Colorimetric Index |
WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
|
Observer Angle |
2°/10° |
|
Illuminants |
A,C,D50,D55,D65,D75,F2(CWF),F7(DLP),F11(TL84),F12(TL83/U30),F1,F3,F4,F5,F6,F8,F9,F10(TPL5) |
|
Measurement Time |
About 1.5s |
|
Repeatability |
Density: Within 0.01 D |
|
Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3 |
|
|
Inter-instrument Error |
Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles) Except M3 |
|
Measurement mode |
Single Measurement, Average Measurement(2-99) |
|
Size(L*W*H) |
184*77*105mm |
|
Weight |
About 600g |
|
Power source |
Li-ion battery. 5000 measurements within 8 hours |
|
Illuminant Life Span |
5 years, more than 3 million times measurements |
|
Display |
3.5-inch TFT color LCD, Capacitive Touch Screen |
|
Interface |
USB, Bluetooth 4.0 |
|
Data memory |
20000 pcs |
|
Language |
|
|
Working Environment |
Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
|
Storage Environment |
Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
|
Standard Accessory |

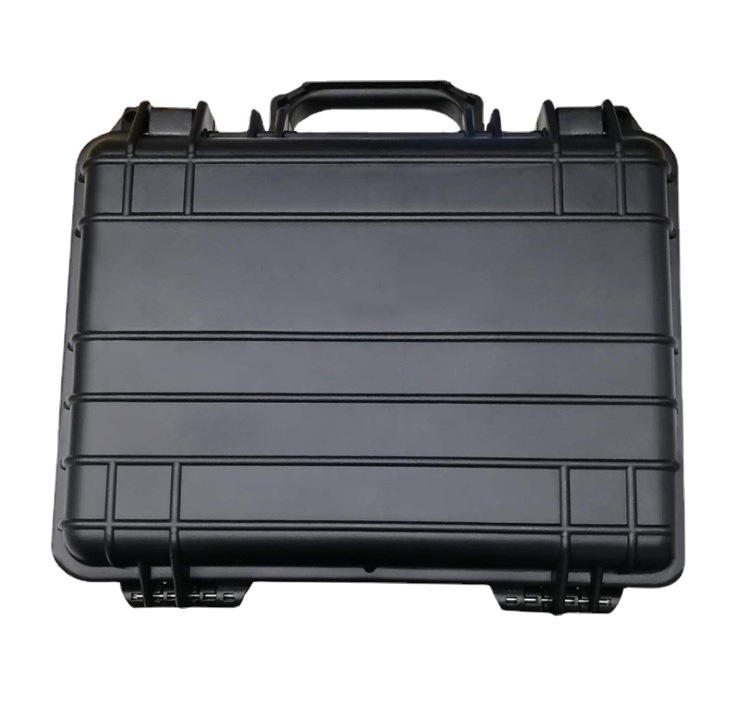

Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate |
|
Optional Accessory |
Micro Printer |
|
Notes: The specifications are subject to change without notice. |
|
Характеристики
Происхождение:
Шэньчжэнь
Импортировано ли оно?:
Нет
Обработка и настройка:
Нет
Бренд:
Су Деруй
модель:
SDR504B
тип:
Светоотражающий измеритель плотности света
Область применения:
Значение плотности, разница плотности, точка, увеличение точки сетки, перекрытие, характеристики печати, контраст печати, ошибка цвета и оттенки серого, сканирование плотности.
размер:
184X77X105 мм
вес:
600g
