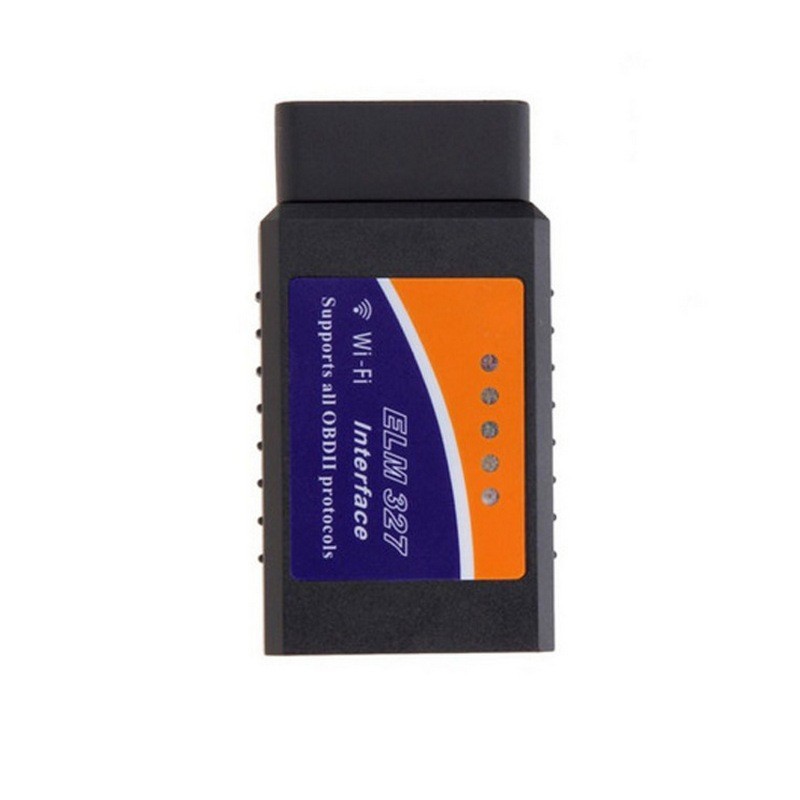

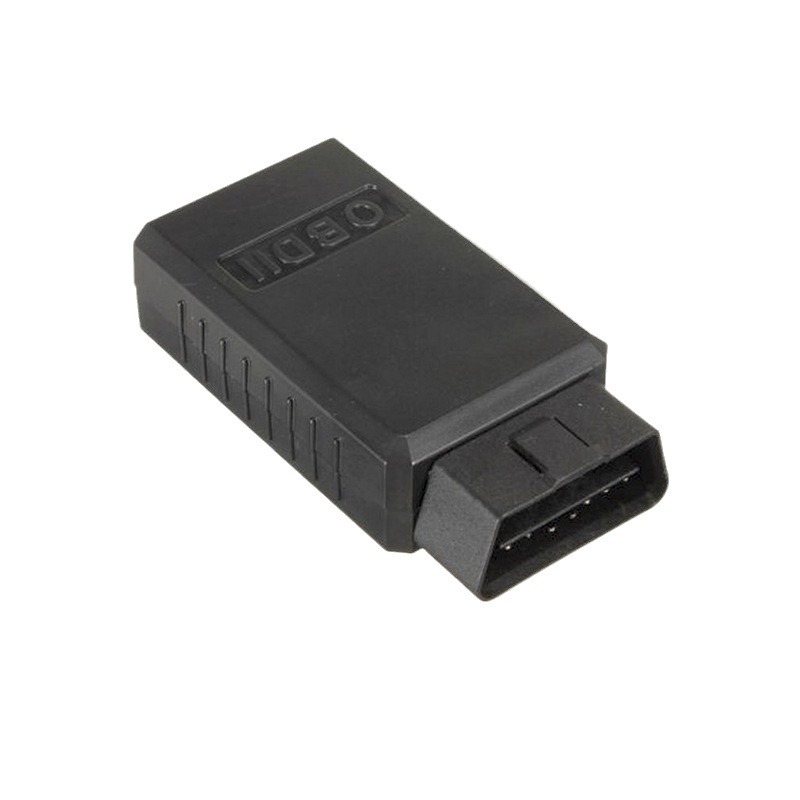

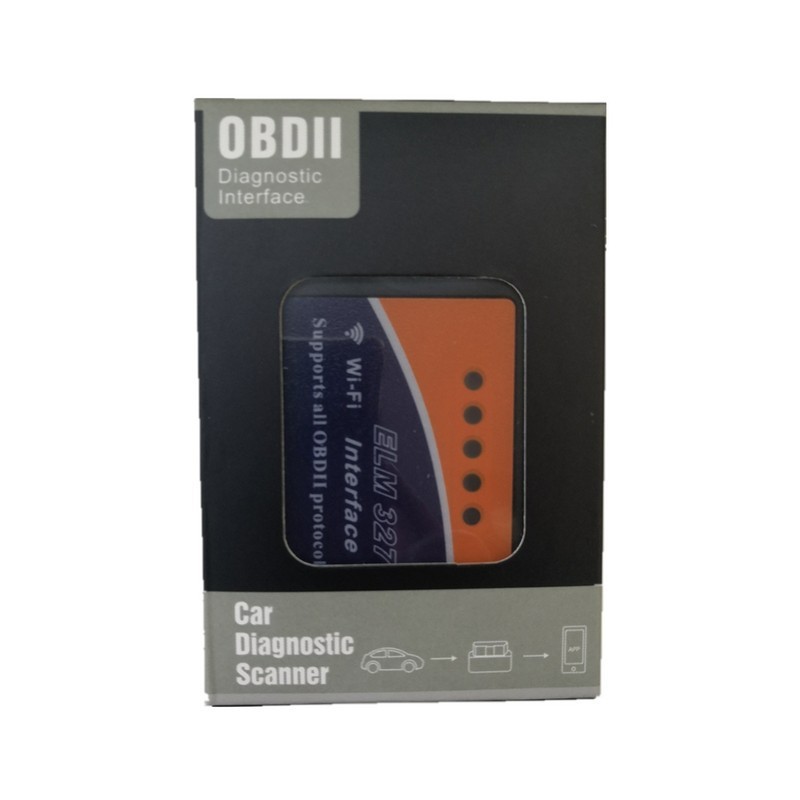

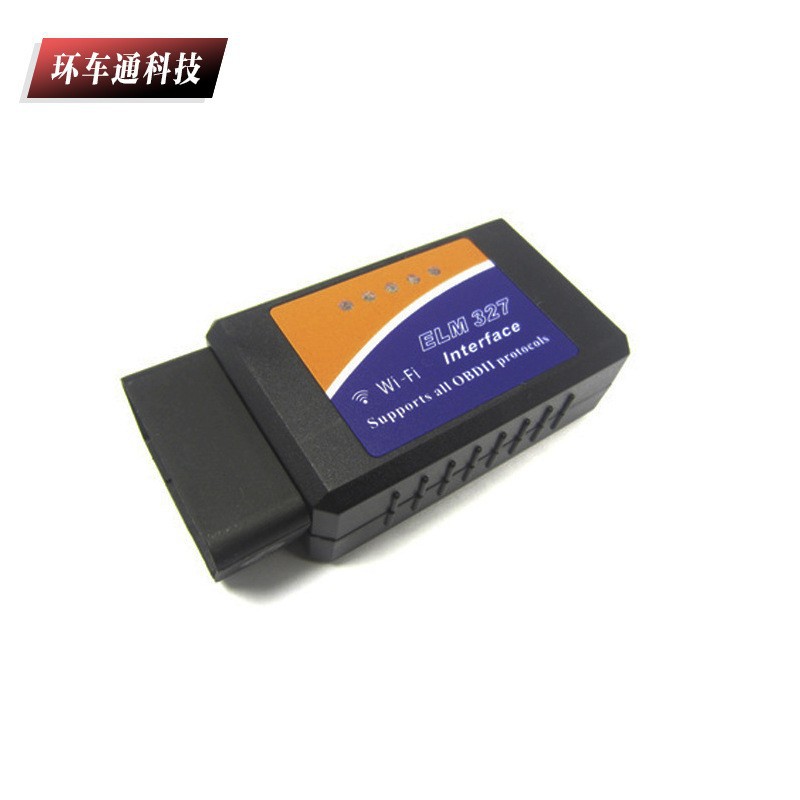

Трансграничный Специальный прибор для диагностики неисправностей автомобиля ELM327 WIFI OBD V1.5, обновленная версия для внешней торговли

SSID：WiFi-OBDII

IP：192.168.0.10
子网：255.255.255.0
端口：35000
范围：25米
天线：内置
耗电量：0.55瓦（带电源开关）
WiFi标准：802.11a/b/g无线
工作温度：-40至65℃左右
物理尺寸：2.75×1.25×1.2英寸
描述
WIFI- OBDII支持所有协议：I

SO 9141
ISO 11898（亦称CAN）
ISO 14230（亦称KWP2000）
ISO 15765（亦称CAN）
SAE J1939

Technical Specifications
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Support OBDII protocols:
1.ISO15765-4 (CAN)
2.ISO14230-4 (KWP2000)
3.ISO9141-2
4.J1850 VPW
5.J1850 PWM
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
