四.产品功能操作手法

1.开机/关机：长按 2秒/开机，长按 2 秒关机。

2.档位：双击换档

3.速度：档位1档10KM/H屏上图标“ECO”点亮，2档20KM/H屏上图标“D”点亮，3档30KM/H屏上图标“S”点亮（具有记忆功能，默认为上次关机前使用的档位）。

4.仪表前灯：单击按键开灯

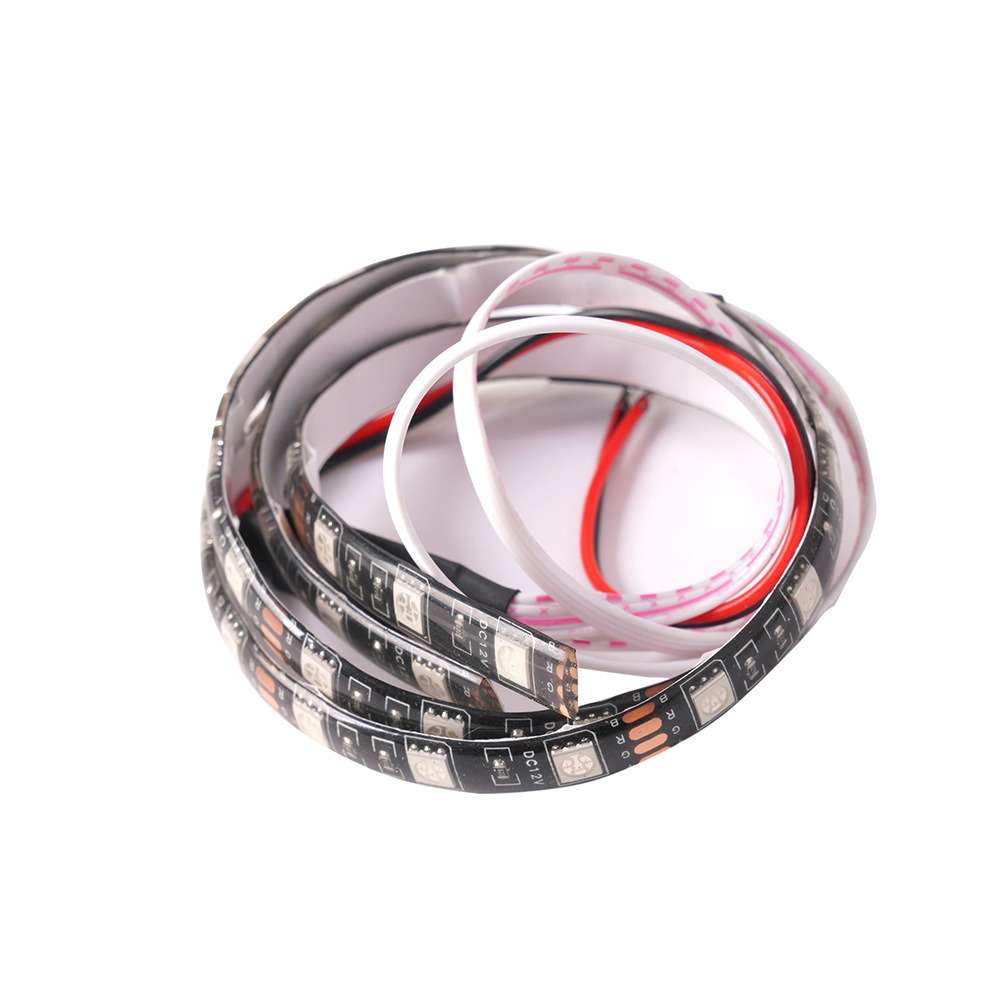

5.氛围灯：按3次按键开关氛围灯(跑马灯，9件套带灯里面有）

6.尾灯：单击仪表按键前灯/尾灯点亮，再单击仪表按键，前灯/尾灯灭，刹车尾灯闪。

7.公英里：按4次按键切换公英里

8.骑行方式：1.默认零启动模式，按5次切换零/非零启动。

9.刹车方式：霍尔 电子线性刹车。

10.清蓝牙:按8次按键听到长响一声（更换手机操作此功能）。

11.APP功能:1.开启/关闭定速巡航。2.公/英里切换。3.零/非零启动模式。4.故障检测。5.当前里程、总里程。6.开启关闭前灯。7.锁车防盗。8.骑行地图（手机要开定位）9.三个档位速度可设置。

12.无操作5分钟自动关机

13.电量显示

1）电压：32V以下第一格灯闪红灯

2) 电压 32V-33.8V  第一格灯常亮

3) 电压33.8V-35 .5V  第二格灯常亮

4）电压37V-35.5V  第三格灯常亮

5）电压37V-38.3V  第四格灯常亮

6) 电压 38.3V  第五格灯常亮

7) 电压低于31V正负1V电机停转

五．故障代码：

1）“E1”霍尔故障（电机与控制器霍尔故障）

2）“E2”油门故障

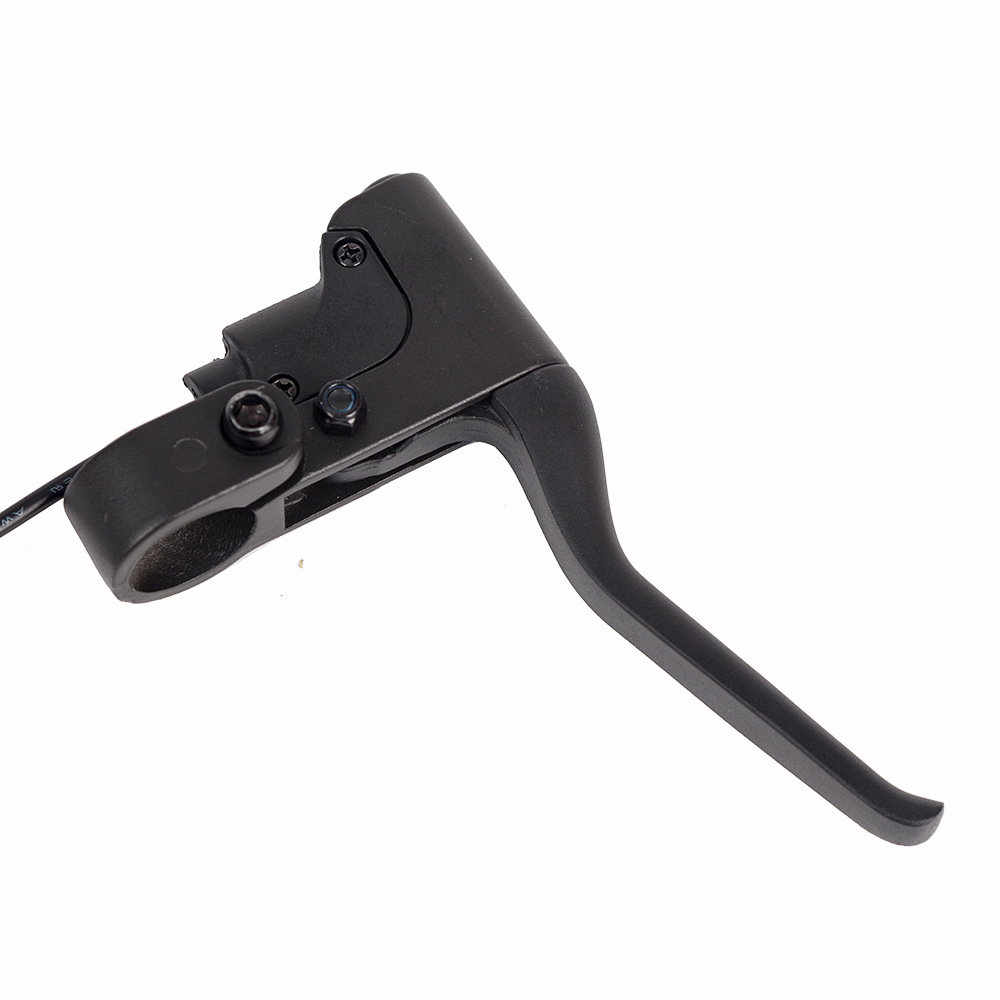

3）“E3”刹车故障：刹车把有三根功能的线，排列顺序有9种 ，排列顺序要和控制器的线一样才能用。客户用自己刹车把的话，要单独调整他自己三根线的顺序。最好用我们的刹车把套装不用调整顺序

      E4 欠压保护

4）“E5”过压保护

5）“E6”相线短路

6）“E8”通讯故障（仪表蓝色接收）（仪表绿线发送）

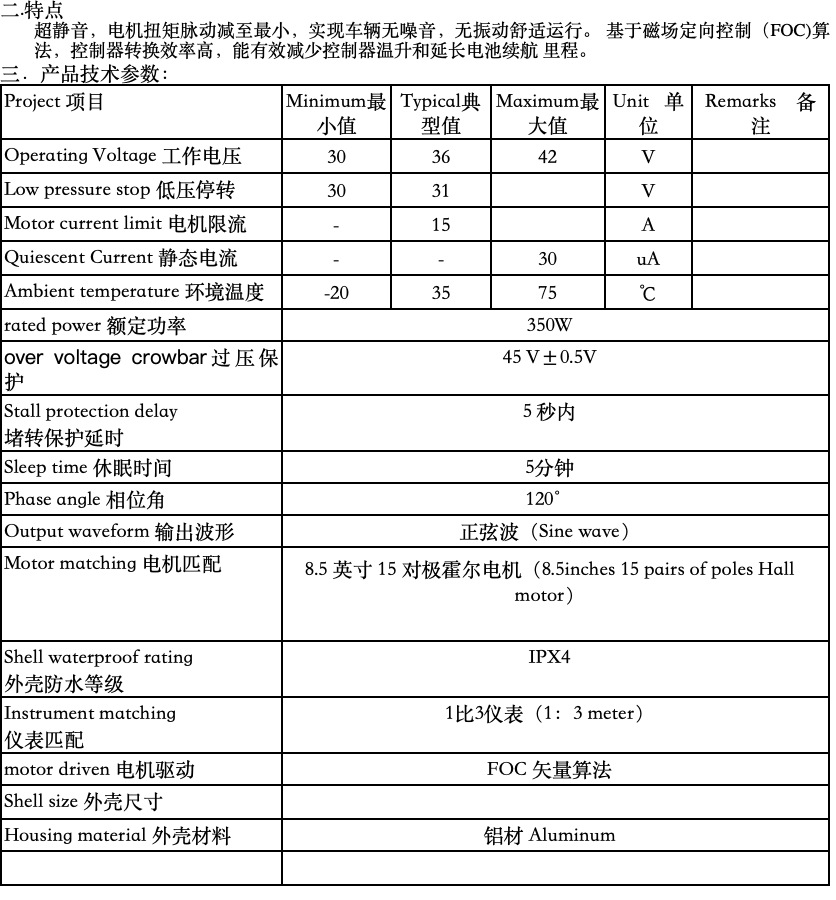

六．控制器参数

1.额定电压：36V；

2.输出功率：350W；

3.额定电流：限流15±1 A；

4.关机电流：< 50uA;

5.堵转保护：电机堵转3秒，关闭输出

6,三档速度分别为：10km/h  20km/h. 30km/h

链接app的操作方法：

first ,download the app(we have put the QR code in the package)
second open the phone Bluetooth.
third ,assemble the kit ,controller with the controller and battery
 ,open display with power.
fourth open app ,you can see it need code ,put 0000 it will work.

英文参考标题：

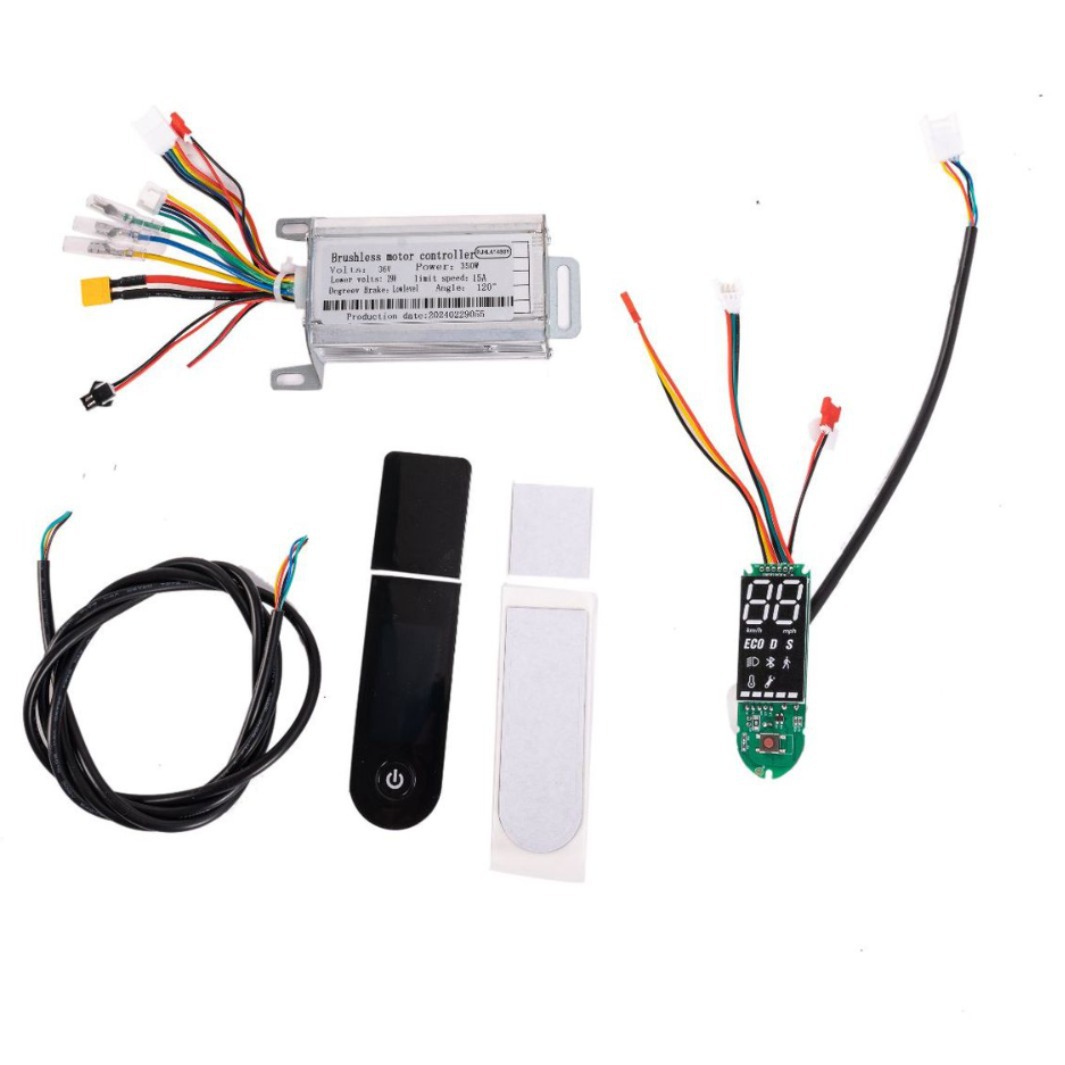

6PCS（可以更换为7PCS，8PCS看选的是哪个SKU) DC 36V 350W Motor Controller Brushless DC Motor Regulator Speed Controller For Xiaomi Electric Bicycle E-bike Scooter

350W 36V 15A Scooter Controller Board Matherboard with Bluetooth Led Display with APP Hover Board Controller

详情描述：

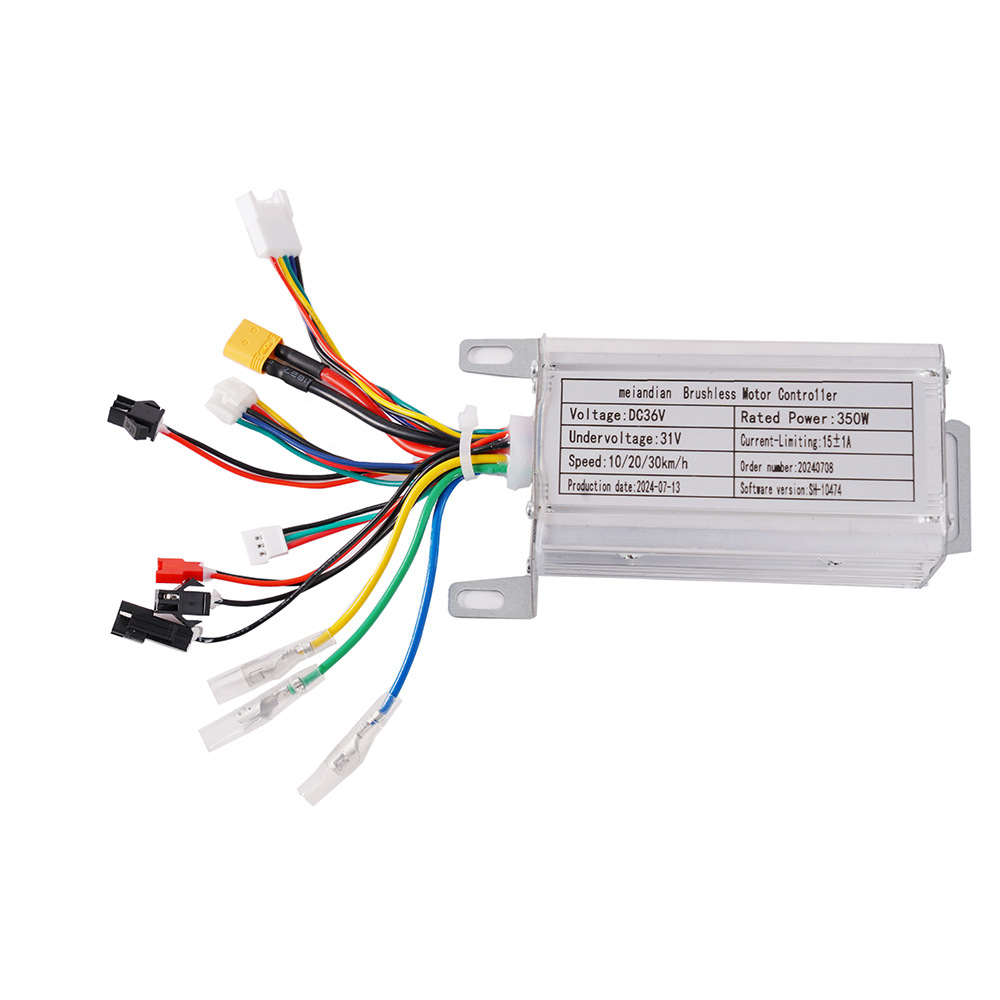

Specification:
Type:DC Motor/Speed Controller
Voltage:DC 36V
Rated Power:350W
Undervoltage:31V
Current-Limiting:15A±1
Quantity: 6PCS/Set(可以7PCS，8PCS根据不同SKU选项来写）
Fit For: Electric Motorcycle/E-bike/Scooter/Electric Bicycle/Balance Skateboard

Instruction:

6. Battery display:

1) Voltage: The first grid light flashes red below 32V

2) Voltage 32V-33.8V, the first grid light is always on

3) Voltage 33.8V-35.5V, the second grid light is always on

4) Voltage 37V-35.5V, third grid light is always on

5) Voltage 37V-38.3V, the fourth grid light is always on

6) Voltage 38.3V, the fifth grid light is always on

7) The motor stops running when the voltage is below 31V plus or minus 1V

7. Low voltage alarm speed mode: The speed limit is about 15Km/h. When the power returns to 37V,the throttle must return to the initial position to release the low voltage and return to normal operation.
8. Constant speed cruise: The speed is stable for about 6 seconds to automatically start the cruise control after the cruise is fixed, the throttle can be released; press the brake or push the throttle again to release the cruise control and enter the manual mode.

9. Speed: The low speed is 10±2km/h; middle speed:20km/h,the high speed is 30km/h (maximum）
Note：Load has a certain effect on speed.
10.Automatic shutdown: Automatically shut down 10 minutes after no operation.

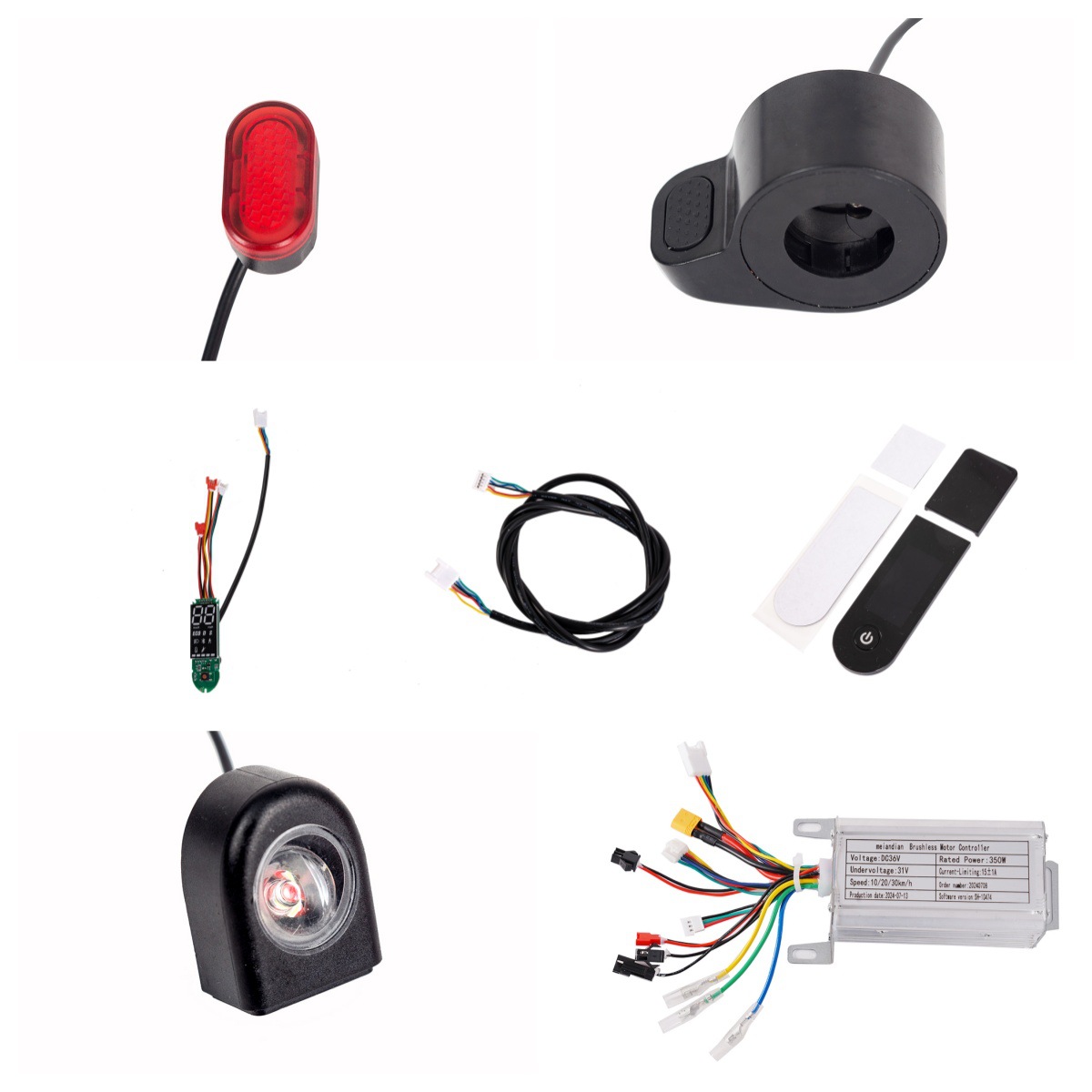

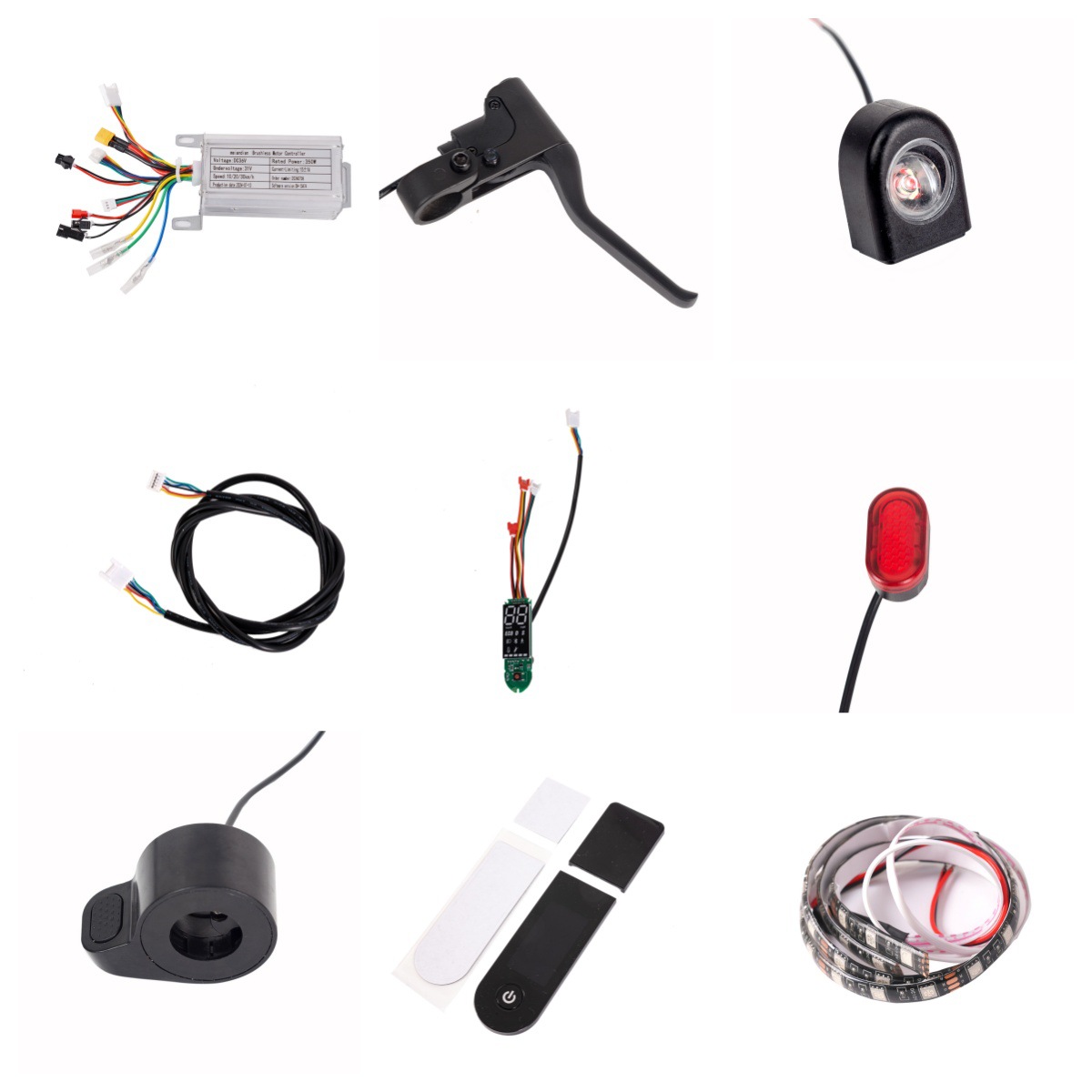

Package Included:

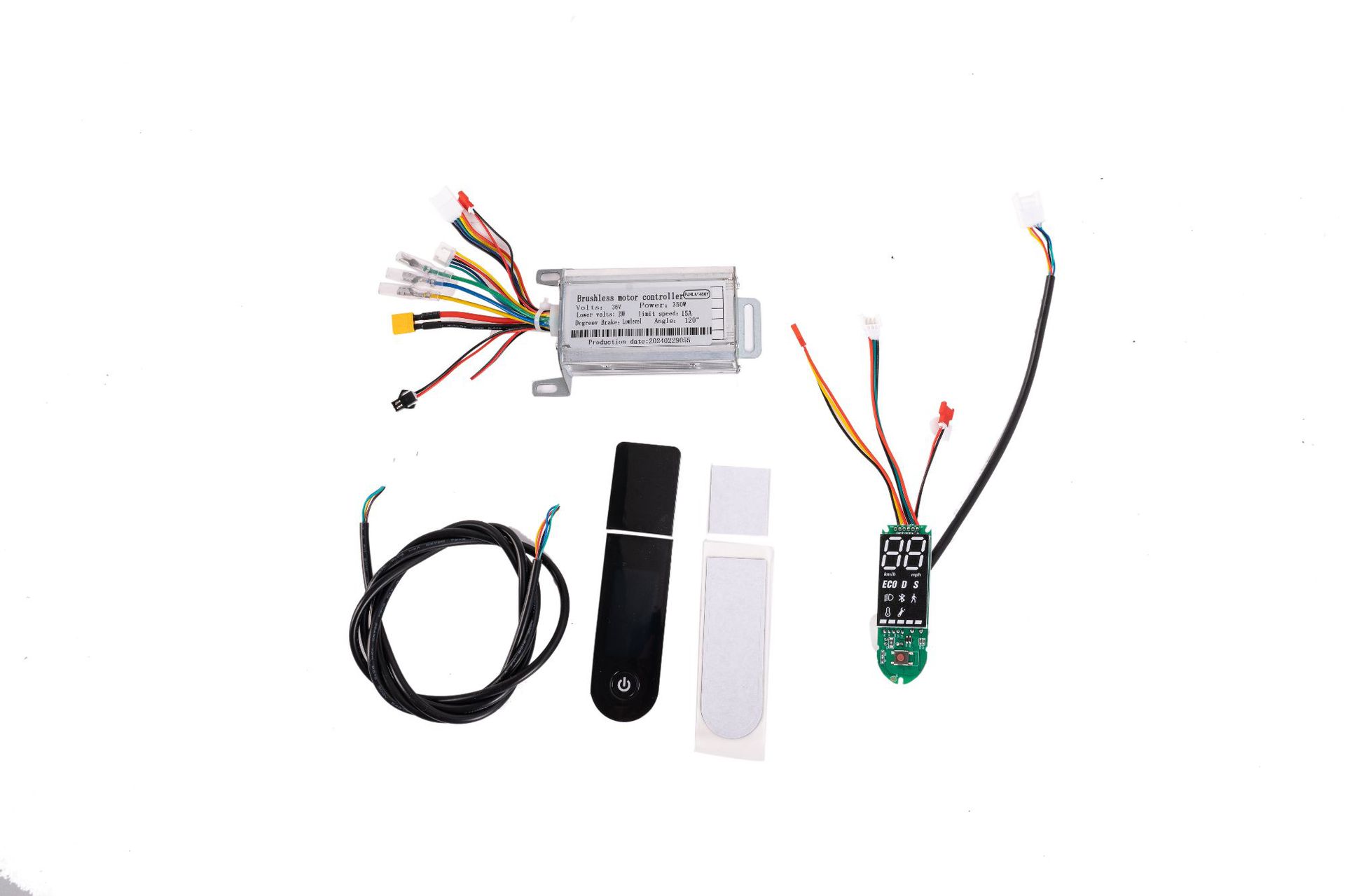

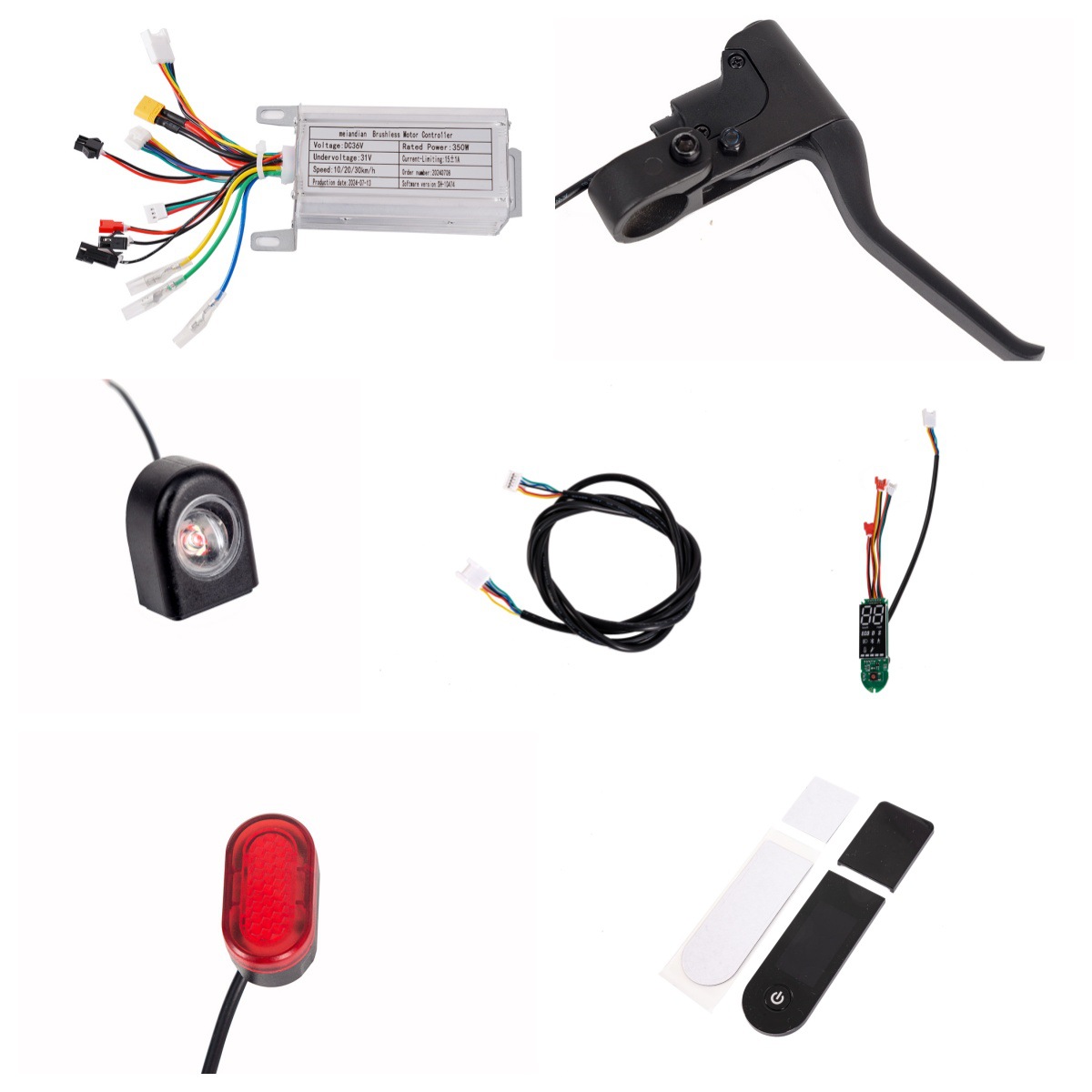

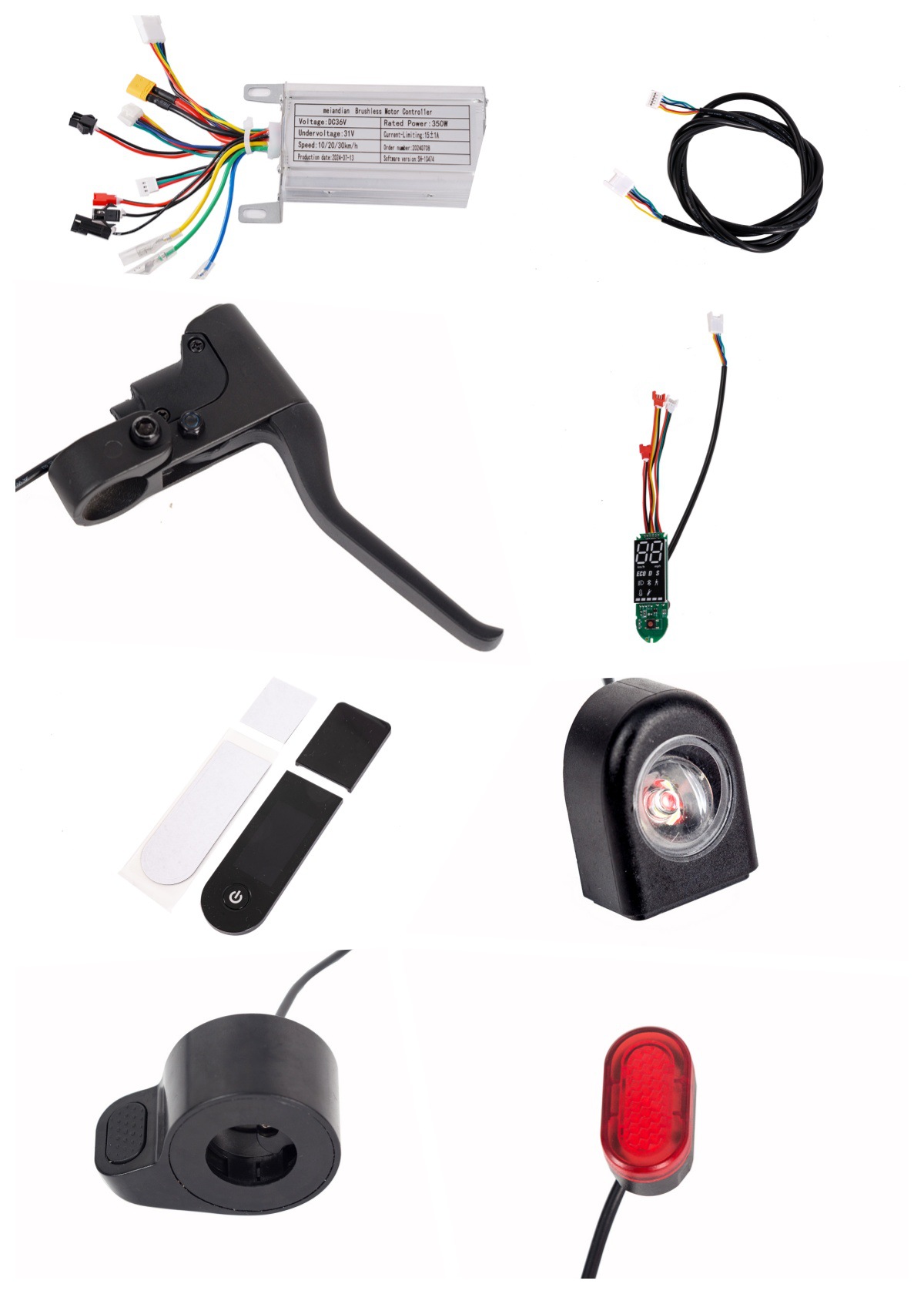

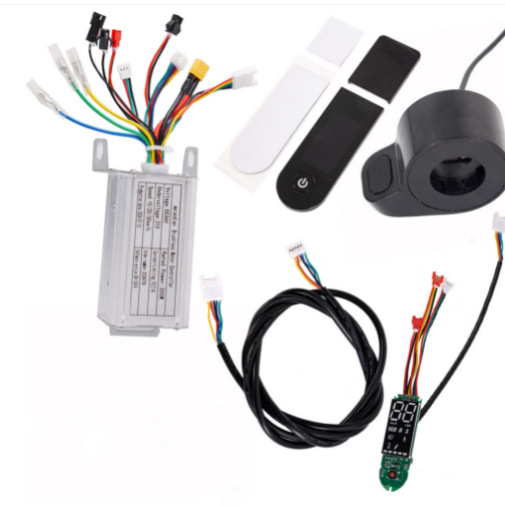

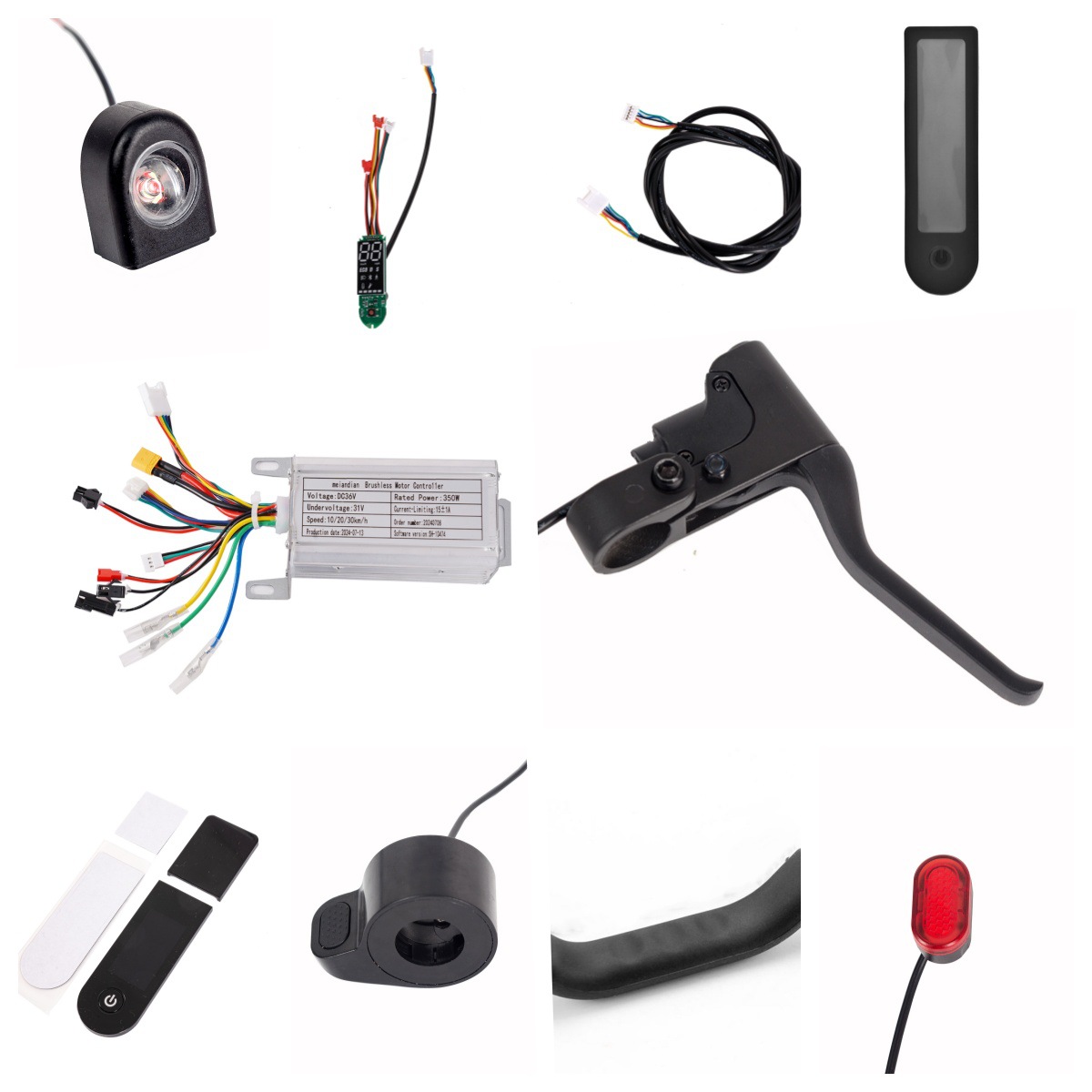

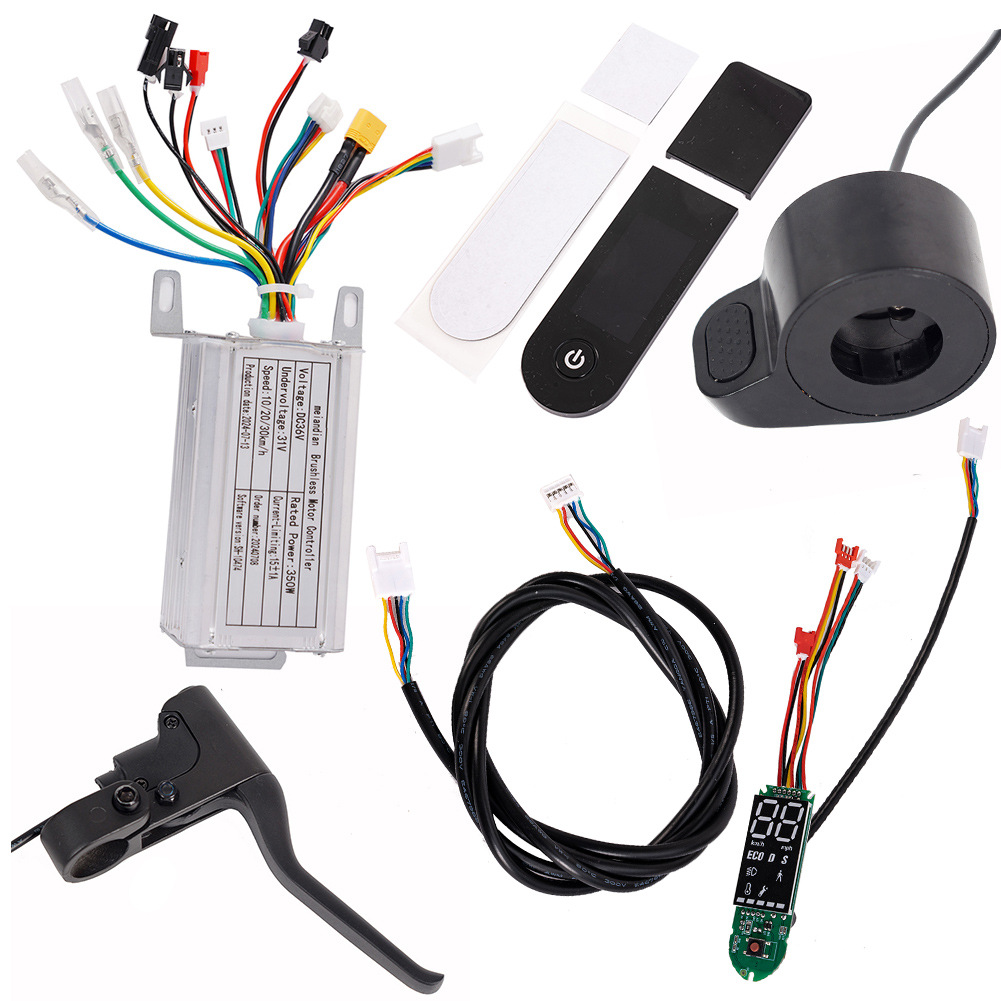

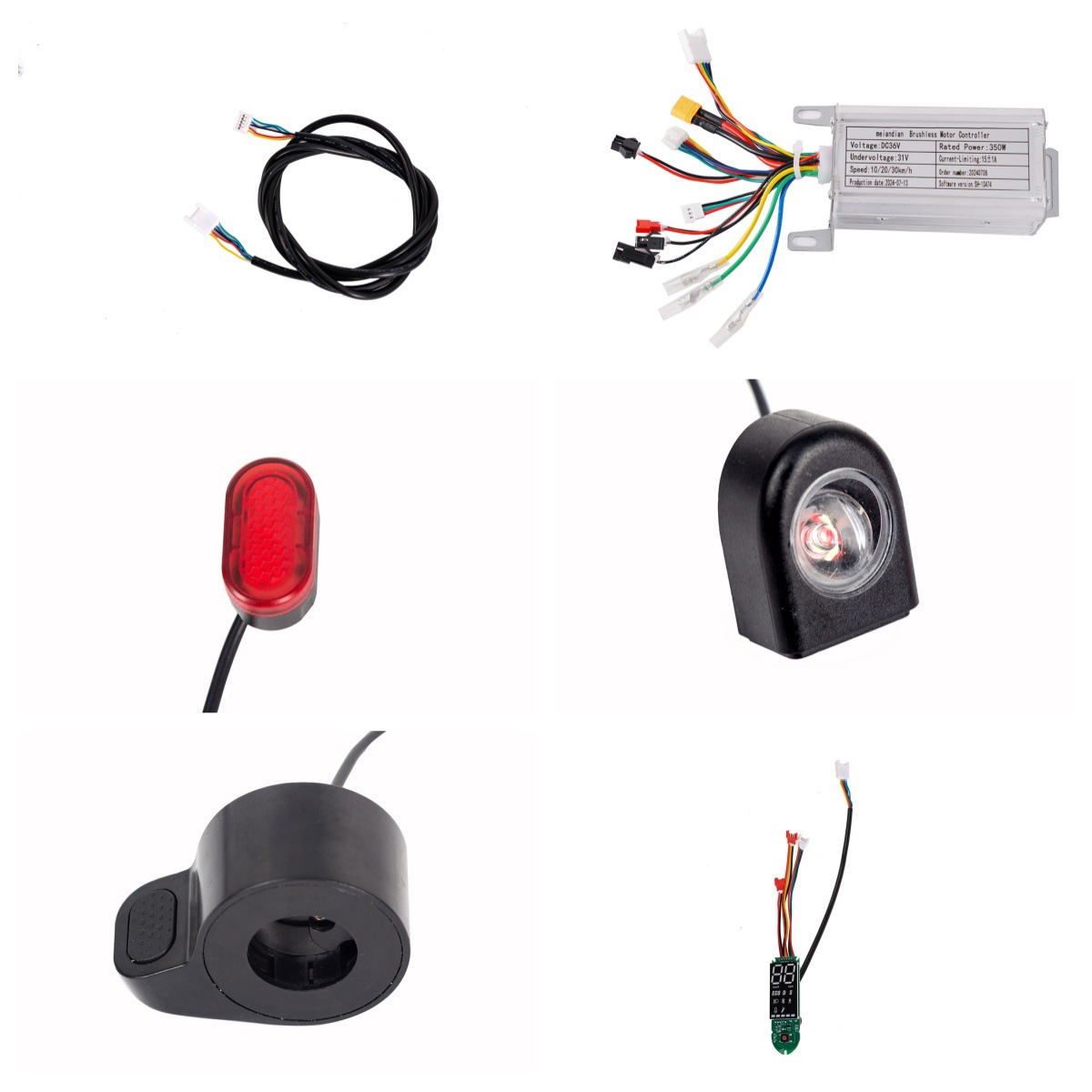

1 X Controller

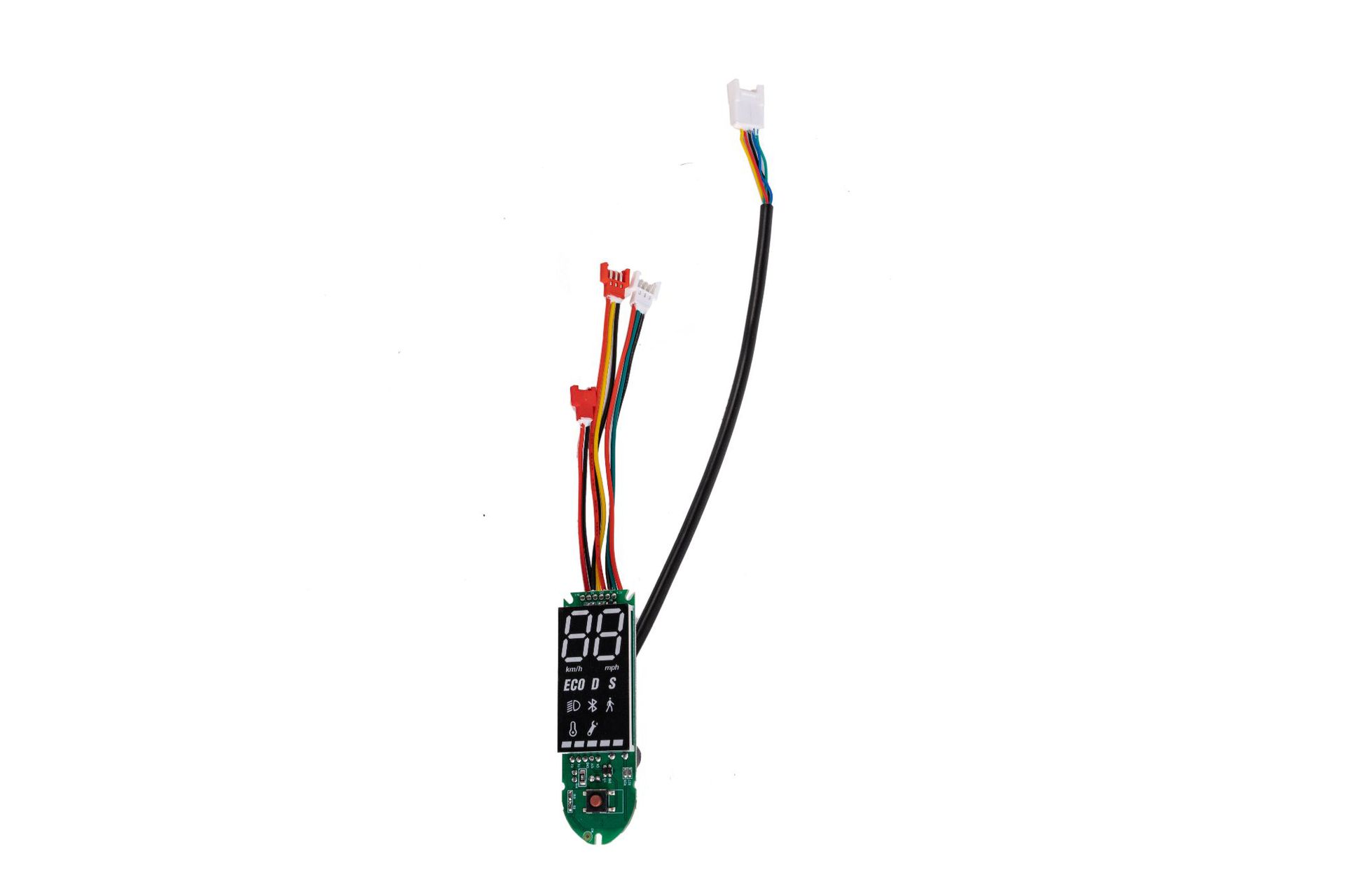

1 X Meter

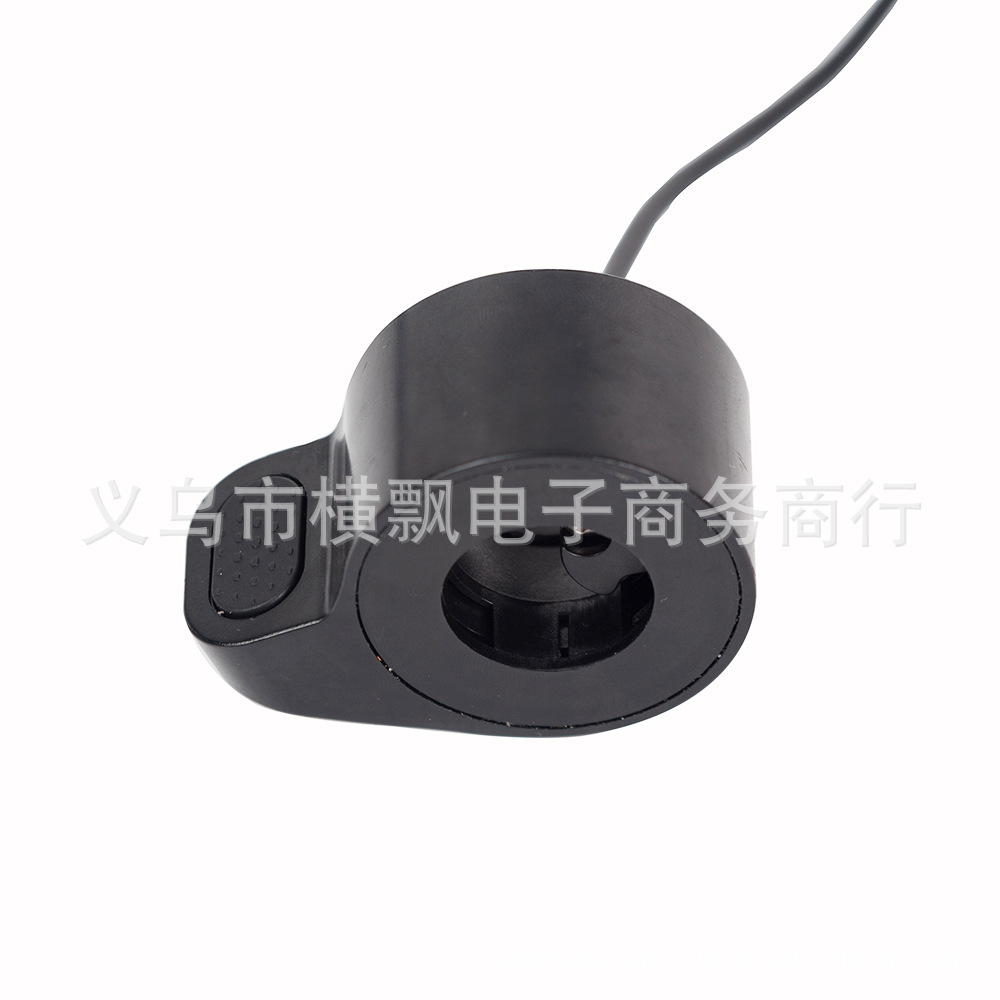

1 X Accelerator

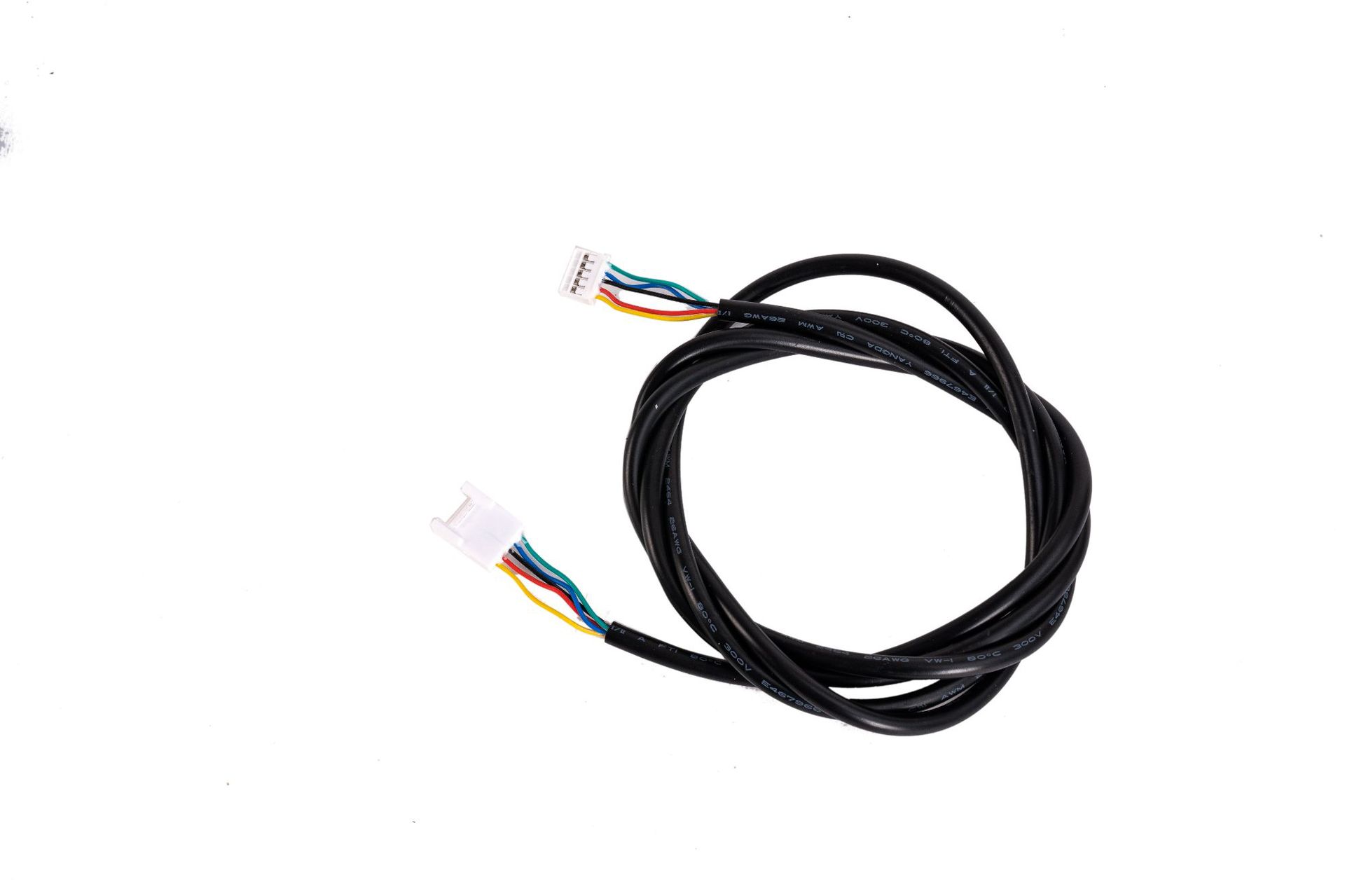

1 X Communication Line

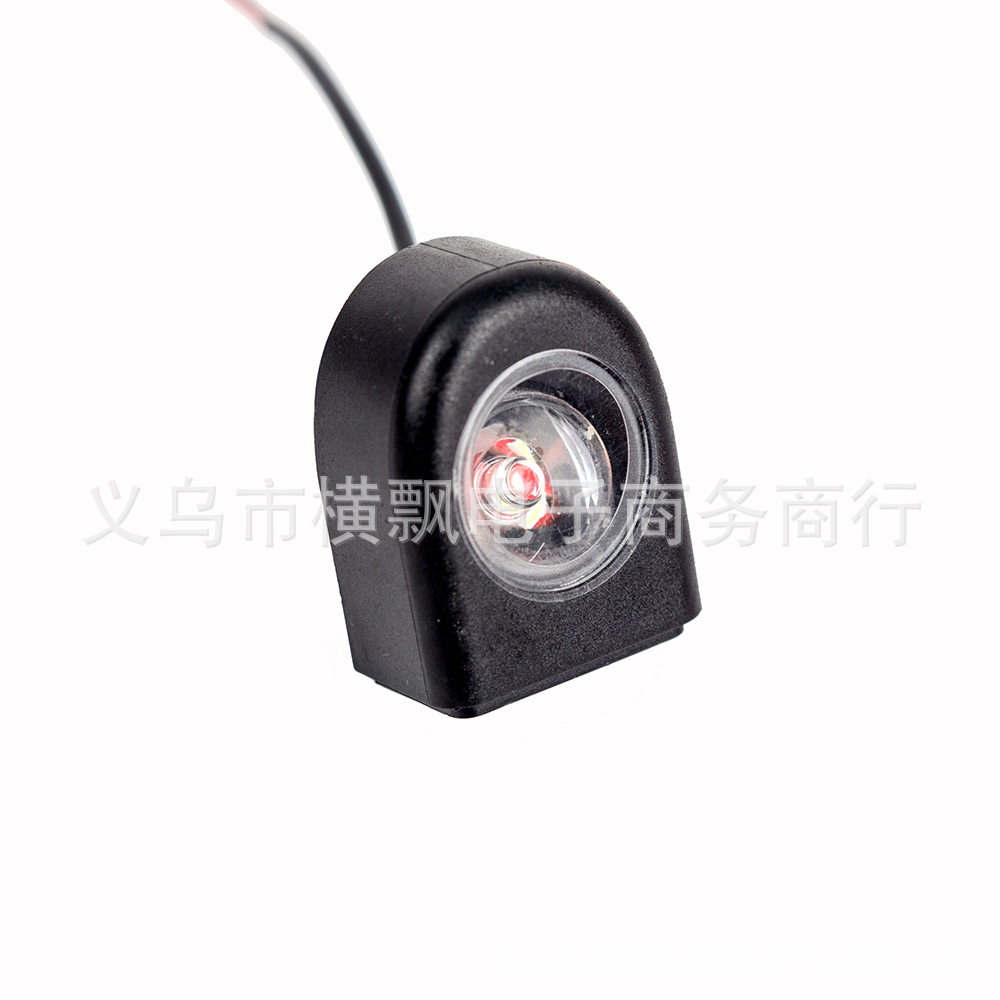

1 X Headlight

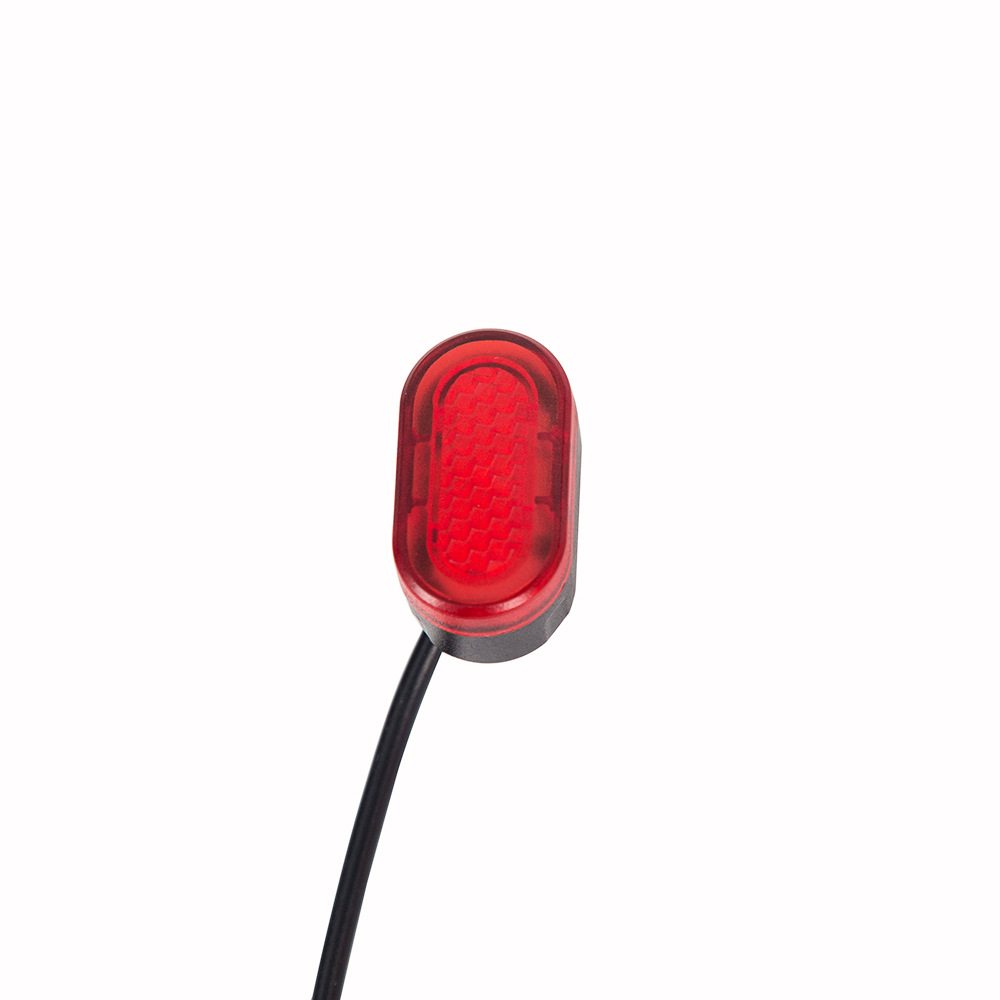

1 X Taillight

包装尺寸：14.5*8.5*10.5cm

50个装一箱  箱规56*32*50CM

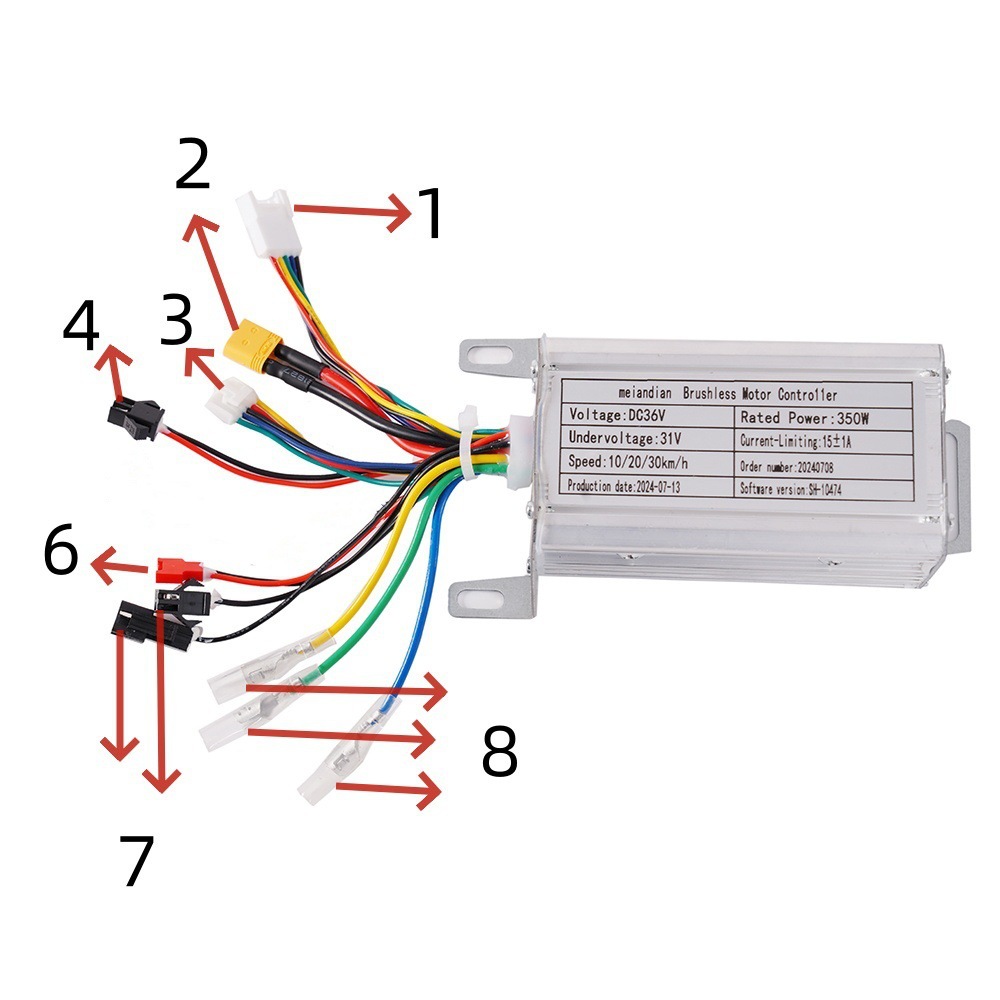

接线说明：

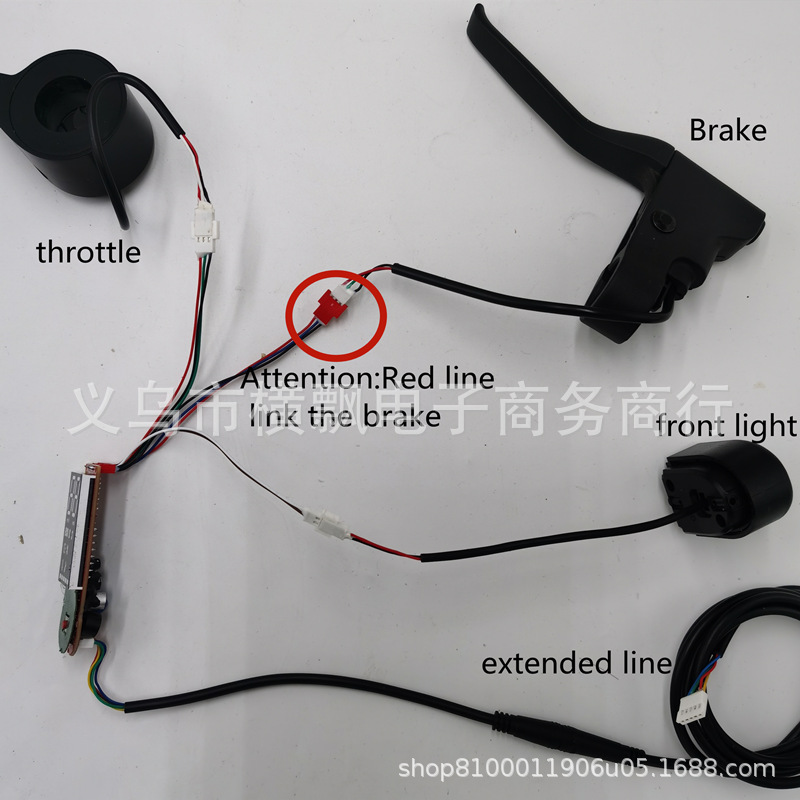

1,motor

2,battery(red：battery+, black：battery-)

3,display

4,horse race lamp line

6,rear light line

7,Self-learning line (debug line):The male and female heads are butted, rotate in the positive direction, and then separate. If it is not in the positive direction, unplug it, then plug it in again, turn it in the positive direction, and then separate.

8，motor line /phase line

各个配件，可以根据需要单独组装
