Арт. 838592994803

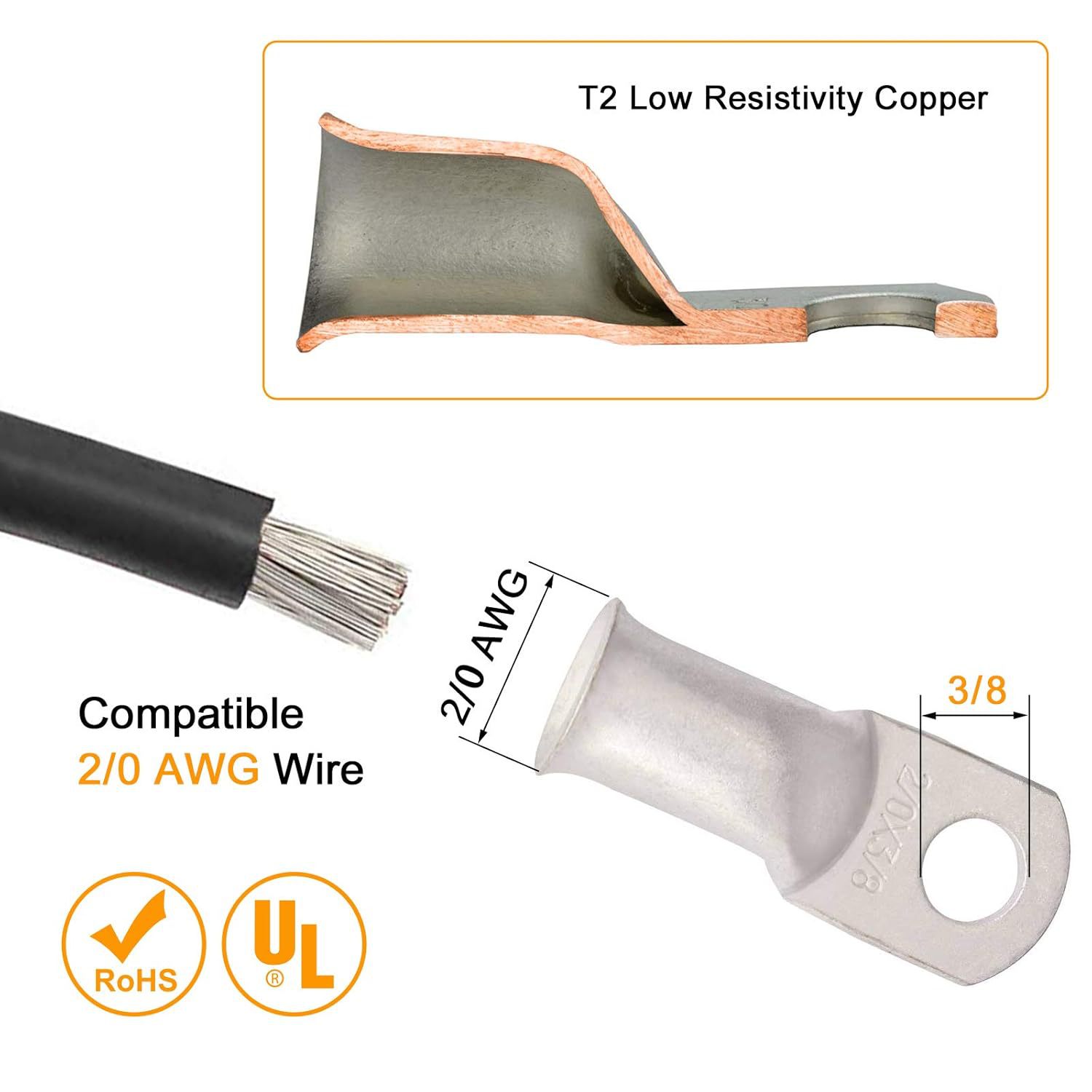

SVAAR 10pcs 2 \/0 AWG-3 \/8 ''Tinned Copper Cable Lu

Ссылка на оригинал

Технические характеристики:

Всего продаж:

37000 шт.

Минимальное количество для заказа:

1 шт.

SVAAR 10pcs 2 \/0 AWG-3 \/8 ''Tinned Copper Cable Lu

Ссылка на оригинал

Доставим до Москвы: 25.12 - 04.1

от 15.88 ₽ за 1 шт.

15.88 ₽

Оптом

от 1 шт.

15.88 ₽

Описание

部分产品标价非卖价，请先咨询客服询价！！感谢您的理解！

Bare Pure Copper Tube Lug

Copper Tube Terminals

	Pure Copper Material
	Heavy Duty
	With 3:1 Shrink Tube
	Marine Grade
	Humid Environments
	Crimped and Soldered
	Closed End Design

	Pure Copper Material
	Heavy Duty
	With 3:1 Shrink Tube
	Marine Grade
	Humid Environments
	Crimped and Soldered
	Closed End Design

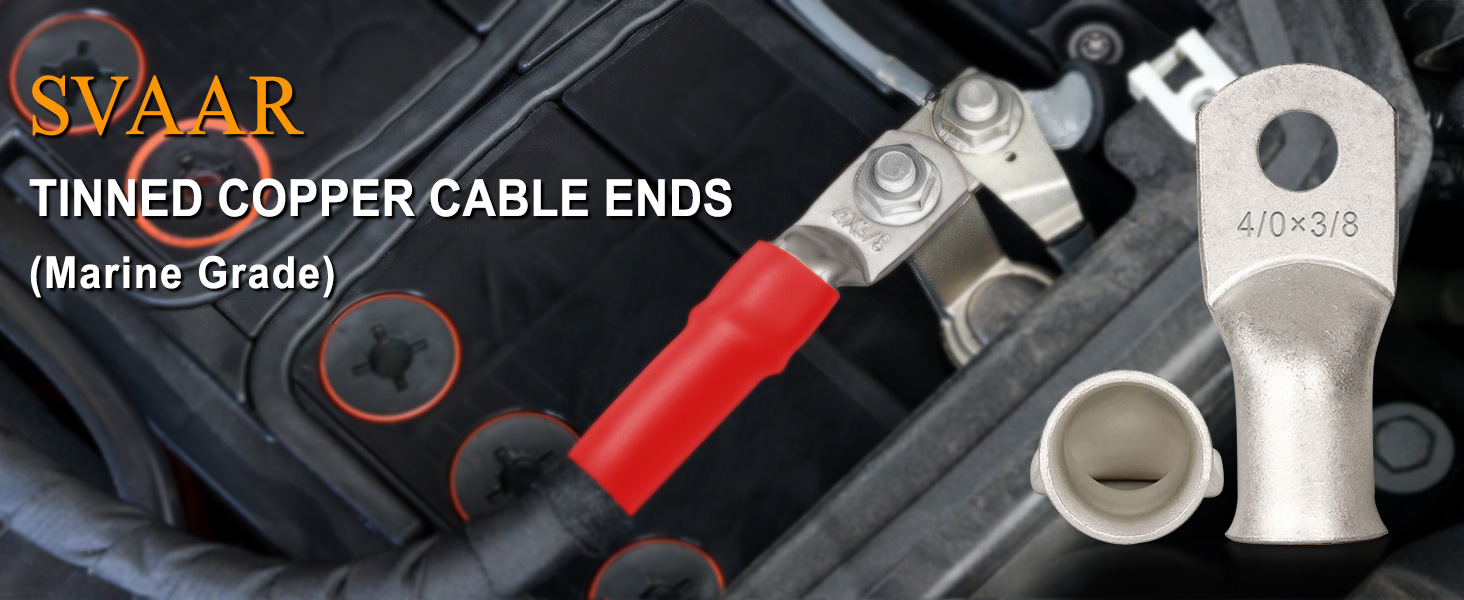

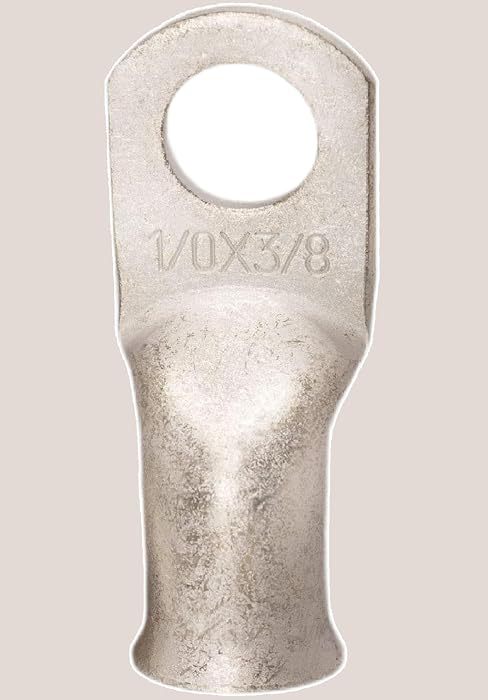

Tinned Copper Tube Lug

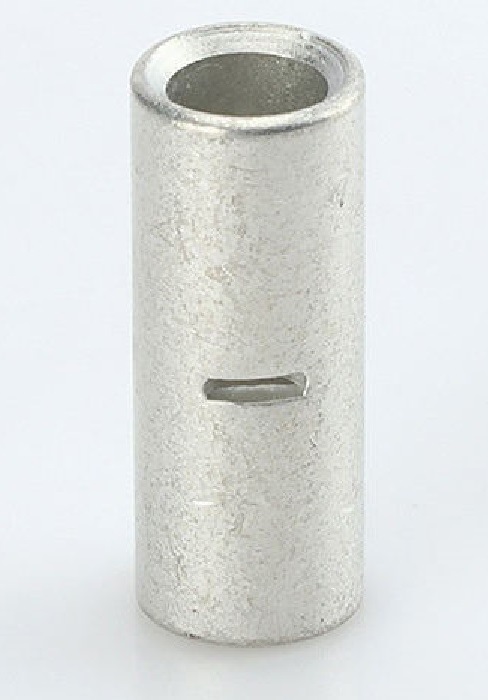

Butt Connectors

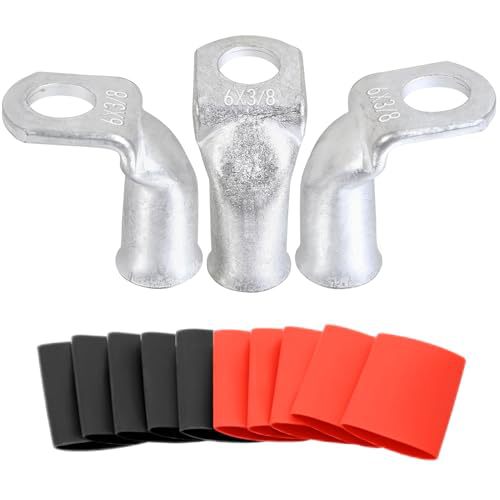

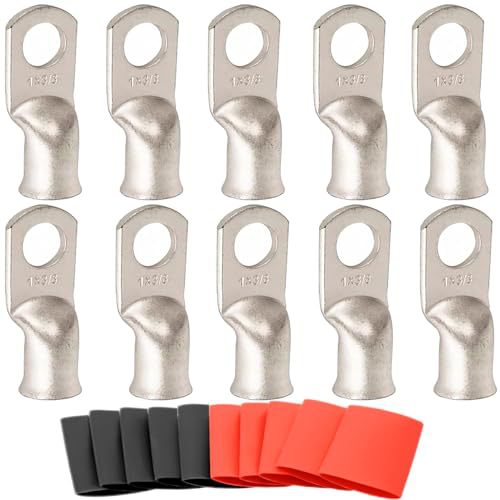

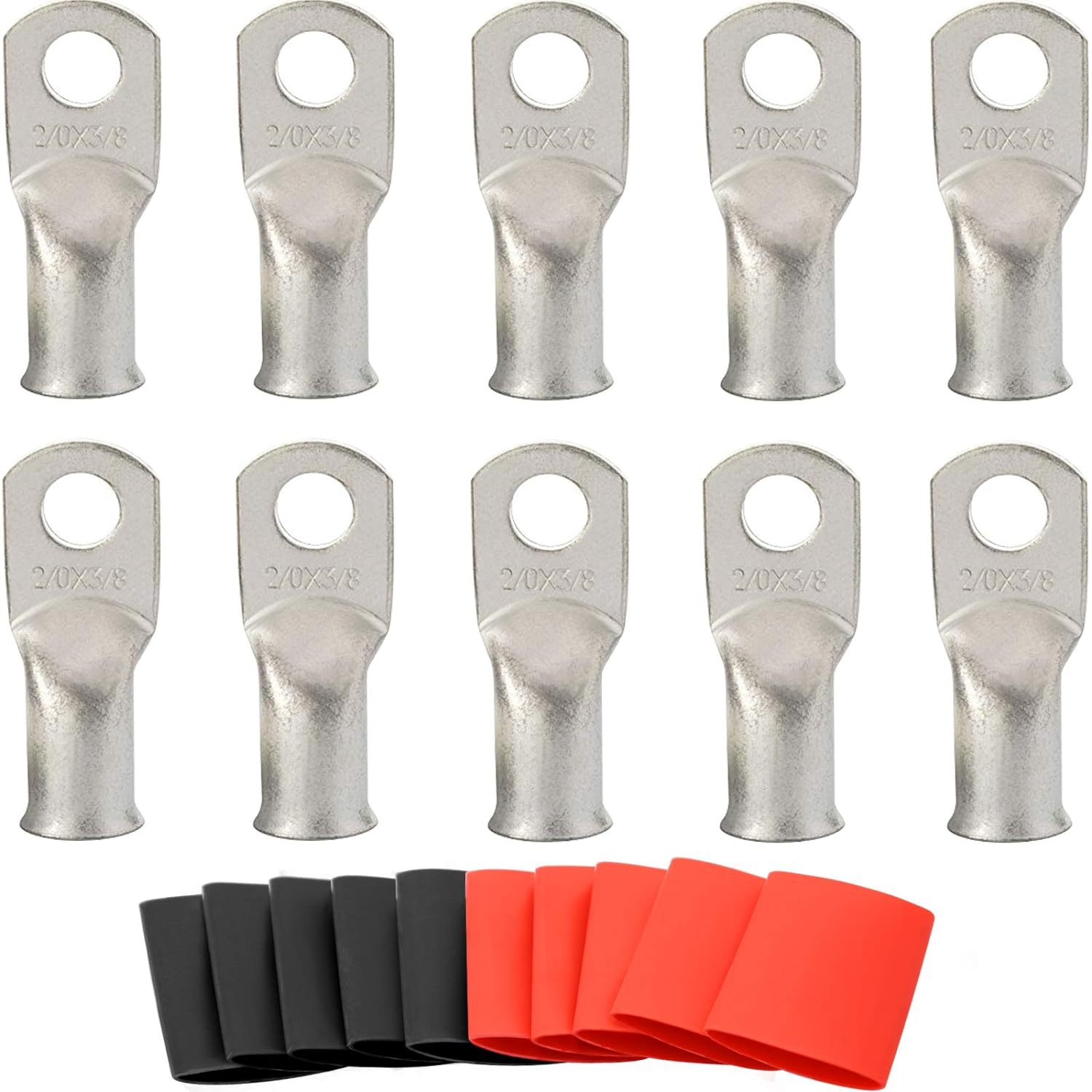

1 Tinned Copper Lugs 2 3:1 Heat Shrink Tubing

CRIMPING INSTALLATION INSTRUCTIONS

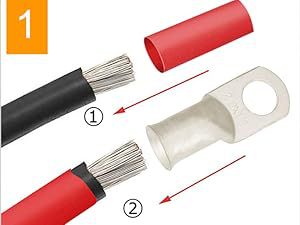

EASY TO USE heavy duty battery terminal connectors-1

HOW TO USE-STEP 1

Prepare Stripped Wire:The use of good wire strippers ensures clean stripping of the cable

Insert heat shrink tubing over the cable;
Insert copper lug.

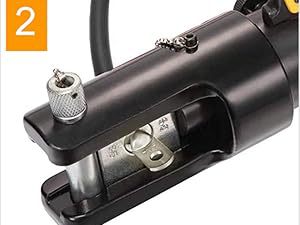

EASY TO USE heavy duty battery terminal connectors-2

HOW TO USE-STEP 2

Open Up Crimper And Set Lug Inside

Stick cable inside the lug and squeeze crimper to grip tightly around cable;
Crimp using tool for a tight connection

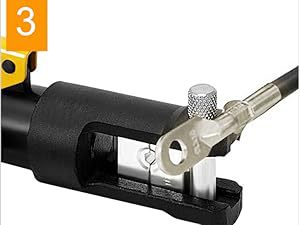

EASY TO USE heavy duty battery terminal connectors-3

HOW TO USE-STEP 3

Check Crimping

The crimping tool is the key element of any crimping process;
Ensure that all the wires are inserted into the long barrel.

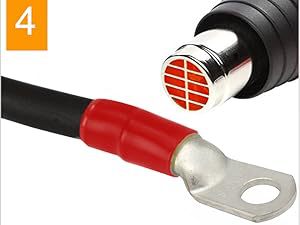

EASY TO USE heavy duty battery terminal connectors-4

HOW TO USE-STEP 4

Insulation Treatment

Clean the surfaces of the connection to avoid resistance and corrosion;
lt's suggested to use heatshrink tubing for insulation.

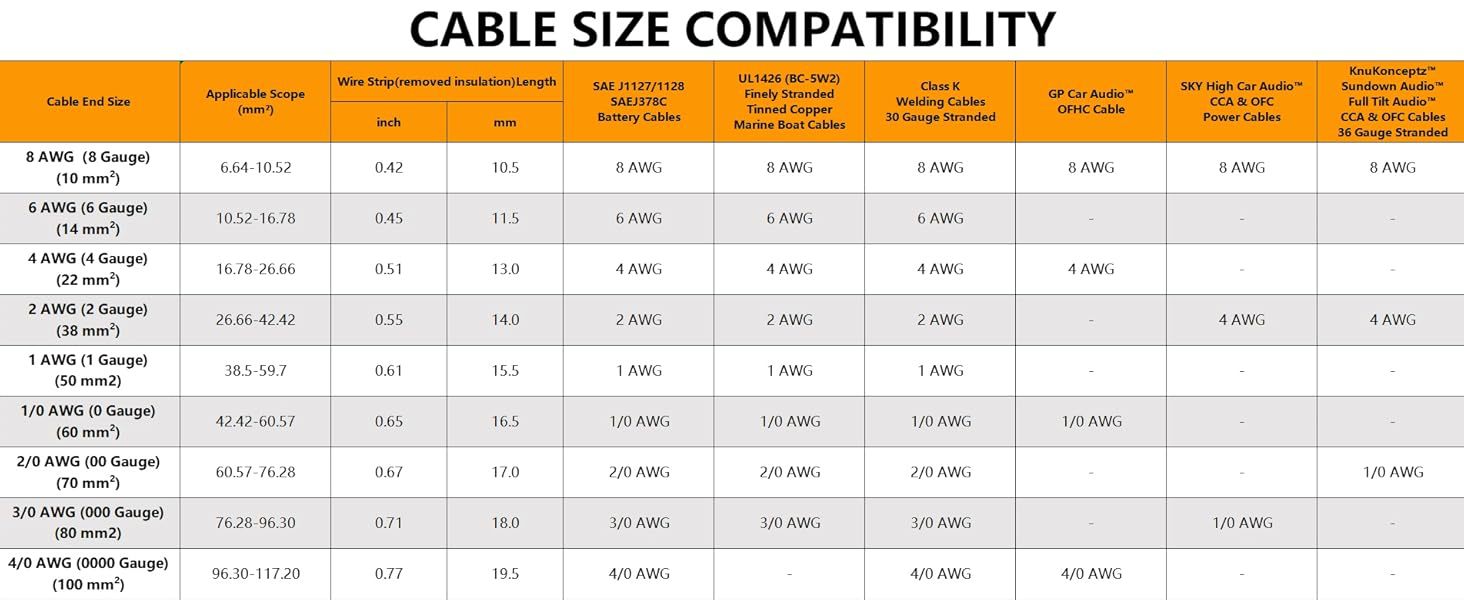

1、NOTICE: Cable size compatibility recommendations are based on publicly available cable size information. Sizing should also be verified with individual cable manufacturers before making a purchase.

2、WARNING: These lugs are not conducive for use with any aluminum cables apart from CCA cables.

3、DISCLAIMER: Some cable manufacturers oversize the gauge of their cables (especially common with audio cables). We always encourage customers to review our product dimensions before making a purchase.Cable Size should also be verified with individual cable manufacturers before making a purchase.

SVAAR COPPER LUGS FEATURES:

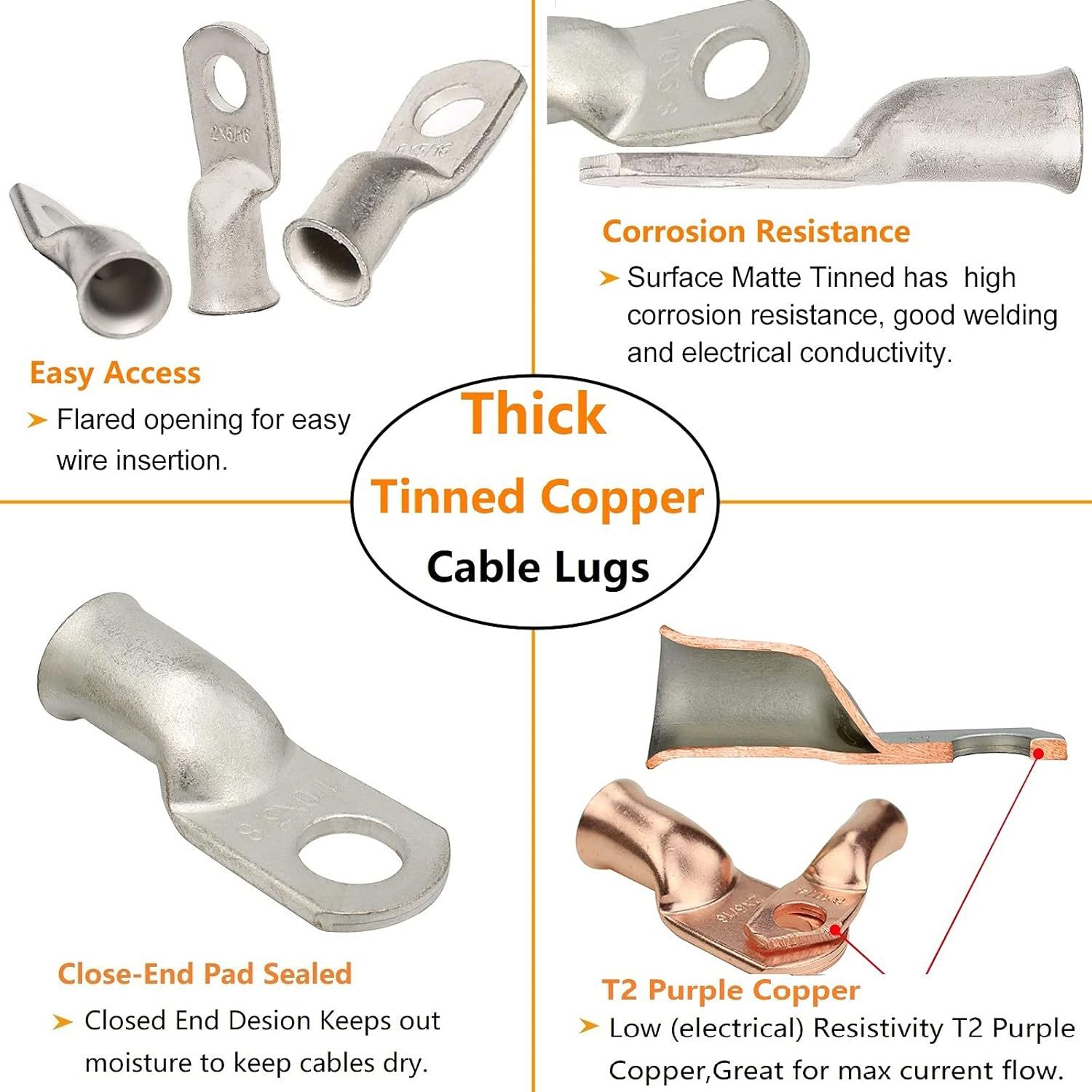

（1）Precisely flared barrel for easy cable insertion whilst avoiding sharp edges Prevents arching, over heating or breakage of the heat shrinks.

（2）Barrel to pad transition slope kept to a minimum for max cable entry.

（3）Wire stud size stamped on pad for easy identification

（4）Flat transition slope end provides added space for installing a washer.

（5）Malleable：Can be crimped or soldered.

THICK SEAMLESS BARREL: These wire lugs are crafted from high quality thick pure copper With Matte Tin Plating for maximum current flow and make super strong crimps. UL listed.

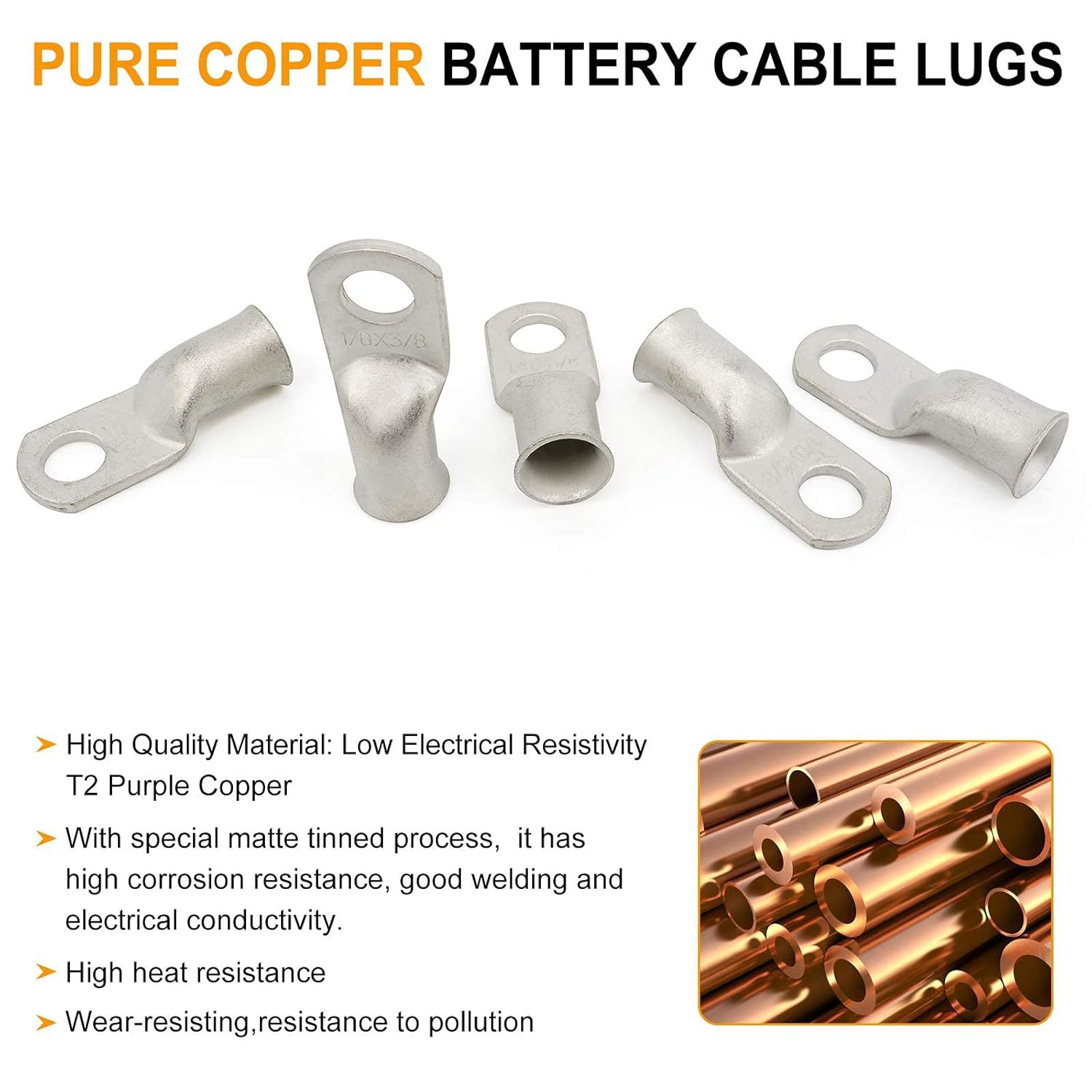

Pure Copper Heavy Duty Cable Lugs

HEAVY DUTY PURE COPPER: We offer Bare Pure Copper Lugs and Tinned Copper Lugs.with various wire diameters and eyelet sizes. Pick the exact copper lug size you need.These wire lugs are crafted from pure copper for maximum current flow. UL listed.

（1）Pure copper cable lugs are heavy-duty, pure copper, electrical connectors designed for high amperage applications.

（2）Tin coated copper cable lugs are ideal for marine and humid environments because the tin coating protects the copper cable lug from oxidation and corroding.

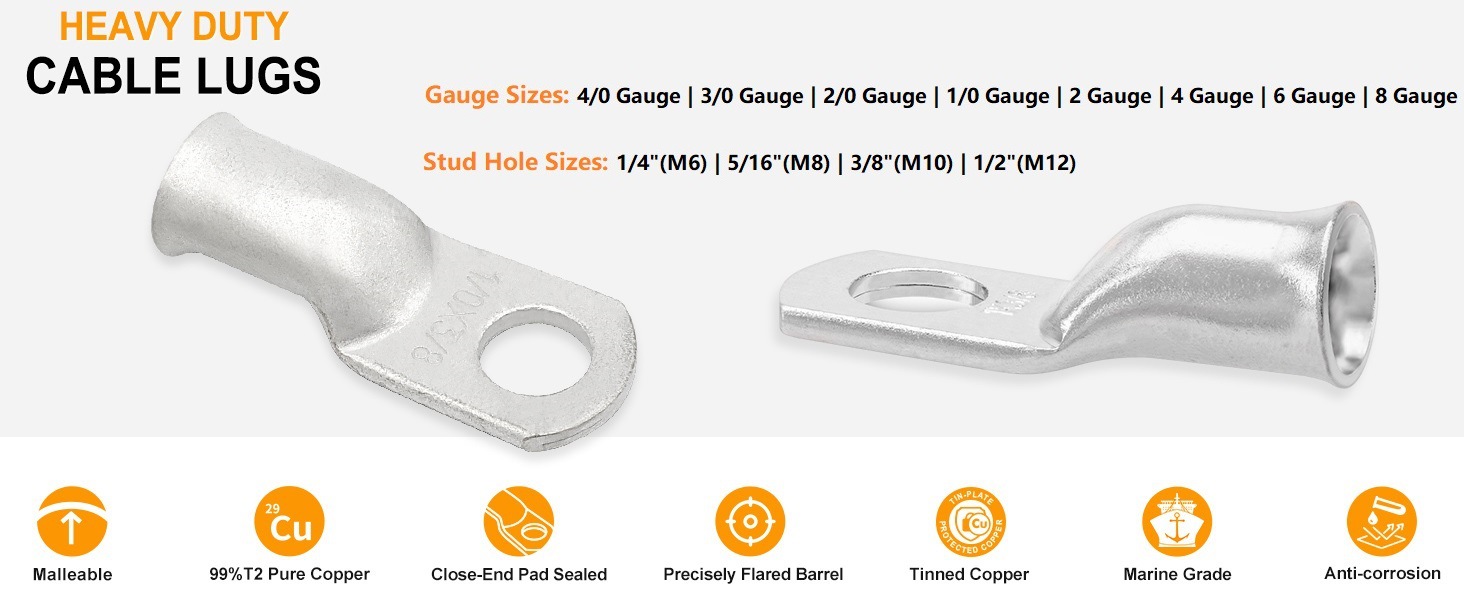

VARIETY OF SIZES: We offer a broad selection of wire diameters and eyelet sizes. Pick the exact copper lug size you need.

（2）Stud Hole Sizes: 1/4"(M6) | 5/16"(M8) | 3/8"(M10) | 1/2"(M12).

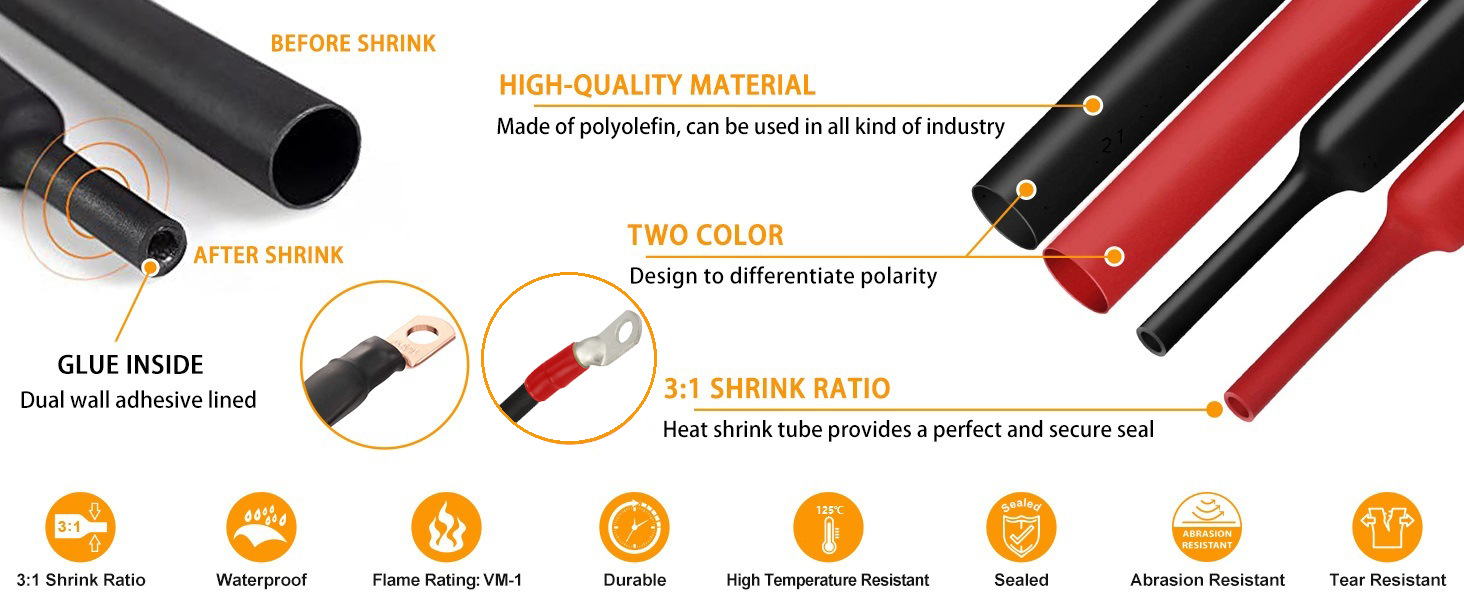

Dual Wall Adhesive Lined Heat Shrink Tubing: The kit includes Dual wall heat shrink tubing(half black and half red).Contains a heat activated adhesive/glue which creates a seal.Ratio is approximately 3 to 1 (shrinks to 1/3 of its original diameter).

WARNING: THE PRODUCT DOESN'T SUITABLE FOR CHILDREN,PLEASE KEEP THEM AWAY FROM KIDS.

NOTICE: WHEN CRIMPING,MAKE SURE TO SELECT THE COPPER WIRE THAT MATCHES THE WIRE GAUGE.

SERVICES: IF YOU HAVE ANY QUESTIONS,PLEASE FEEL FREE LET US KNOW,WE WILL RESPOND TO YOU AND TRY OUR BEST TO HELP YOU WITHIN 24 HOURS.

Характеристики

Бренд:

другое

Материал:

Товары по умолчанию

Область применения:

другое

Технические характеристики:

Ring 3/8"(M10)-0 Gauge (1/0 AWG) Tinned Copper-4; Ring 1/2"(M12)-0000 Gauge (4/0 AWG) Tinned Copper-; Ring 5/16"(M8)-6 Gauge (6 AWG) Tinned Copper-10; Ring 3/8"(M10)-6 Gauge (6 AWG) Tinned Copper-10; Ring 1/2"(M12)-0 Gauge (1/0 AWG) Tinned Copper-10; Ring 3/8"(M10)-2 Gauge (2 AWG) Tinned Copper-10; Ring 3/8"(M10)-8 Gauge (8 AWG) Tinned Copper-10; Ring 3/8"(M10)-0 Gauge (1/0 AWG) Tinned Copper-10; Ring 5/16"(M8)-90 Degree Bent-6 Gauge (6 AWG) Tinn; Ring 1/4"(M6)-0 Gauge (1/0 AWG) Tinned Copper-10; Ring 3/8"(M10)-90 Degree Bent-6 Gauge (6 AWG) Tinn; Ring 3/8"(M10)-90 Degree Bent-4 Gauge (4 AWG) Tinn; Ring 3/8"(M10)-90 Degree Bent-00 Gauge (2/0 AWG) T; Ring 5/16"(M8)-8 Gauge (8 AWG) Tinned Copper-10; Ring 5/16"(M8)-00 Gauge (2/0 AWG) Tinned Copper-10; Ring 5/16"(M8)-4 Gauge (4 AWG) Tinned Copper-10; Ring 5/16"(M8)-000 Gauge (3/0 AWG) Tinned Copper-8; Ring 5/16"(M8)-90 Degree Bent-2 Gauge (2 AWG) Tinn; Ring 1/2"(M12)-00 Gauge (2/0 AWG) Tinned Copper-10; Ring 1/4"(M6)-00 Gauge (2/0 AWG) Tinned Copper-10; Ring 5/16"(M8)-0000 Gauge (4/0 AWG) Tinned Copper-; Ring 3/8"(M10)-000 Gauge (3/0 AWG) Tinned Copper-8; Ring 3/8"(M10)-1 Gauge (1 AWG) Tinned Copper-10; Ring 5/16"(M8)-0 Gauge (1/0 AWG) Tinned Copper-10; Ring 3/8"(M10)-90 Degree Bent-0 Gauge (1/0 AWG) Ti; Ring 5/16"(M8)-1 Gauge (1 AWG) Tinned Copper-10; Ring 5/16"(M8)-2 Gauge (2 AWG) Tinned Copper-10; Ring 5/16"(M8)-90 Degree Bent-0 Gauge (1/0 AWG) Ti; Ring 3/8"(M10)-0000 Gauge (4/0 AWG) Tinned Copper-; Ring 3/8"(M10)-4 Gauge (4 AWG) Tinned Copper-10; Ring 5/16"(M8)-90 Degree Bent-00 Gauge (2/0 AWG) T; Ring 3/8"(M10)-00 Gauge (2/0 AWG) Tinned Copper-10; Ring 3/8"(M10)-90 Degree Bent-8 Gauge (8 AWG) Tinn; Ring 5/16"(M8)-90 Degree Bent-4 Gauge (4 AWG) Tinn; Ring 5/16"(M8)-0 Gauge (1/0 AWG) Tinned Copper-4; Ring 1/2"(M12)-000 Gauge (3/0 AWG) Tinned Copper-8; Ring 5/16"(M8)-90 Degree Bent-8 Gauge (8 AWG) Tinn
