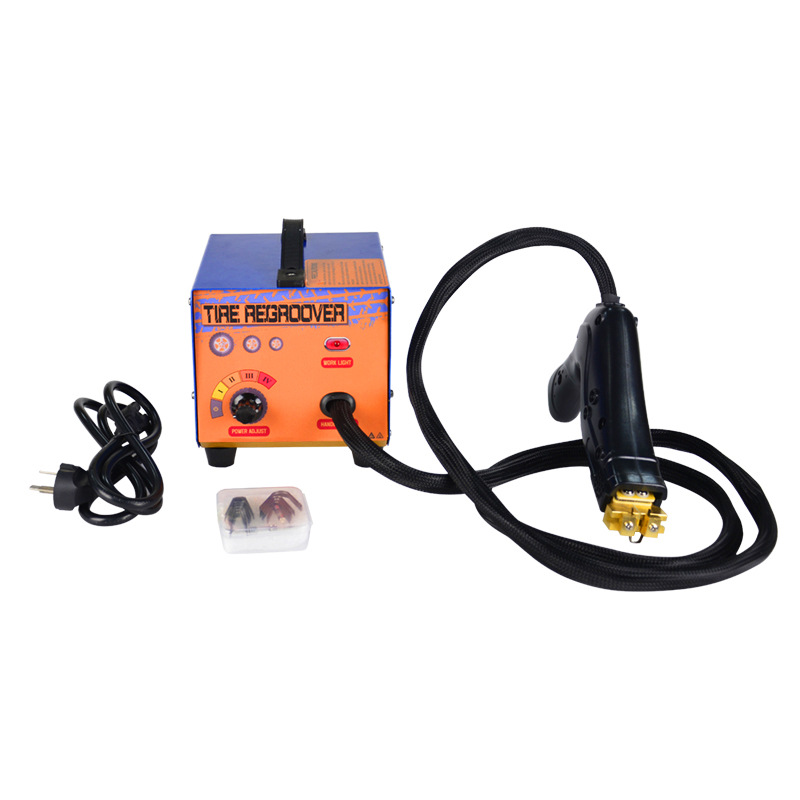

TR-1KW-AC-S серии ручных резных машин для шин основной блок плюс 10 лезвий

Описание

TR-1KW-AC-S系列交流简易款手持便携式轮胎开槽器

TR-1KW-AC-S Series Handheld Simple Portable Tyre Regroover

The Tyre Regroover is mainly used for recutting and regrooving the truck or tractor type by the resistance heating way,it is one kind of very useful tool for big tyre,especially for truck solid tire and other rubber product to regrove and reuse.

Very easy to use and control:

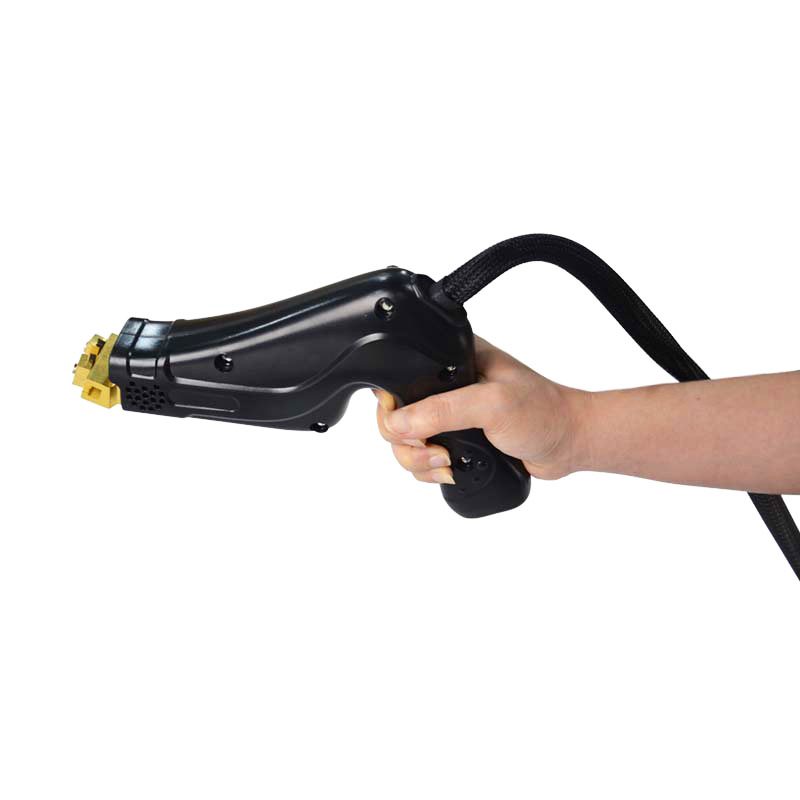

The Portable Regrooving Machine with lower weight is an easy to use and comfortable pocket-sized tool for regrooving various tyres and rubber sheet.

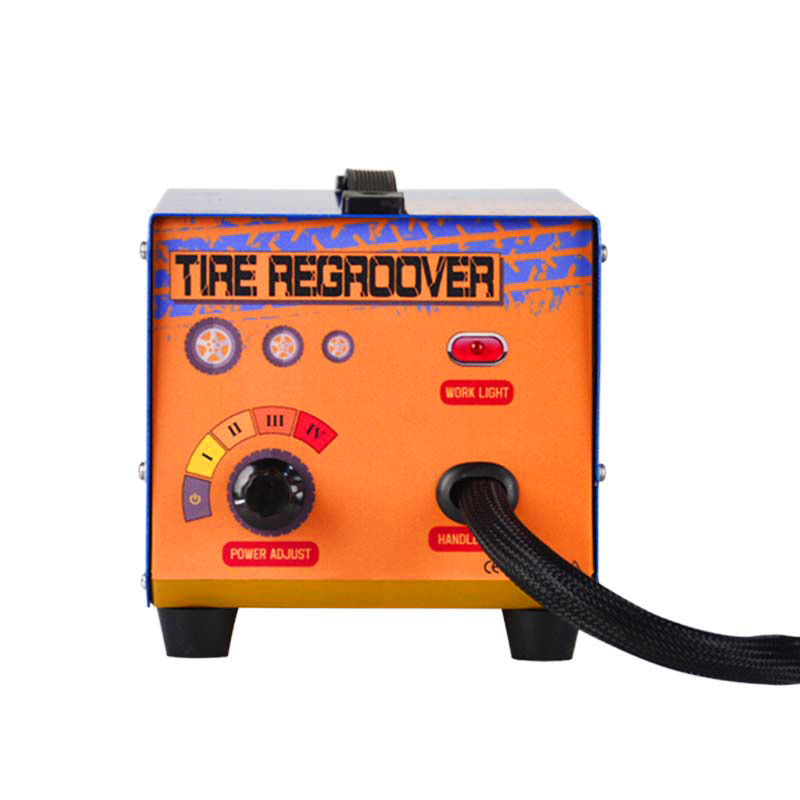

To cut different size of tyre groove,the output heating power is digital adjustable through output voltage knob by stepless way,the setted value of output voltage is displayed on the controlling panel by LCD screen,can cut the rubber very easily.

High performance and multi-functions:To meet different kinds of tyre groove request,the tire grooving equipment comes with 10 kinds of tire blades including U-type and V-type blades which can cut the groove in rubber with width from 2 mm to 10 mm and depth from 9mm to 14mm as the following form:

(R-1,R-2,R-3,R-4,R-5;W-1,W-2,W-3,W-4,W-5) as following:

The cutting grooves in rubber from 3-20mm wide and 7-16 mm deep. The low weight of the regrooving machine and the individual heating control for the blades allow effortless cutting.

轮胎开槽器主要通过电阻加热开槽刀的方式对卡车或拖拉机的轮胎进行切割和开槽出纹路，恢复轮胎的抓地能力，这是一种非常实用的翻新工具，特别是对于实心卡车轮胎和其他橡胶制品的翻新和再利用。

手持式轮胎开槽器是一种操作简单、体形轻便，便于携带的小型工具，用于对各种轮胎和橡胶板进行开槽，使用和控制都非常方便。

加热功率通过旋钮可实现无级可调输出，输出电压的数值可通过液晶屏显示在控制面板上。切割不同尺寸的轮胎槽，可选择使用合适的功率去切割。

高性能多功能：为满足不同类型的轮胎开槽要求，手持式轮胎开槽器配备U型和V型等10种轮胎刀片，可在橡胶上切割的宽度可从2毫米到10毫米，深度可从 9 毫米到14毫米。

如下表：

(R-1,R-2,R-3,R-4,R-5;W-1,W-2,W-3,W-4,W-5) 如下：

橡胶的切割开槽范围：宽3-20毫米，深7-16毫米。开槽器的重量轻，刀片的单独加热控制能让使用者轻松完成橡胶切割工作。

Cutting Blade Dimensions

轮胎切刀尺寸：

主要技术参数

Main Specifications and Parameters
