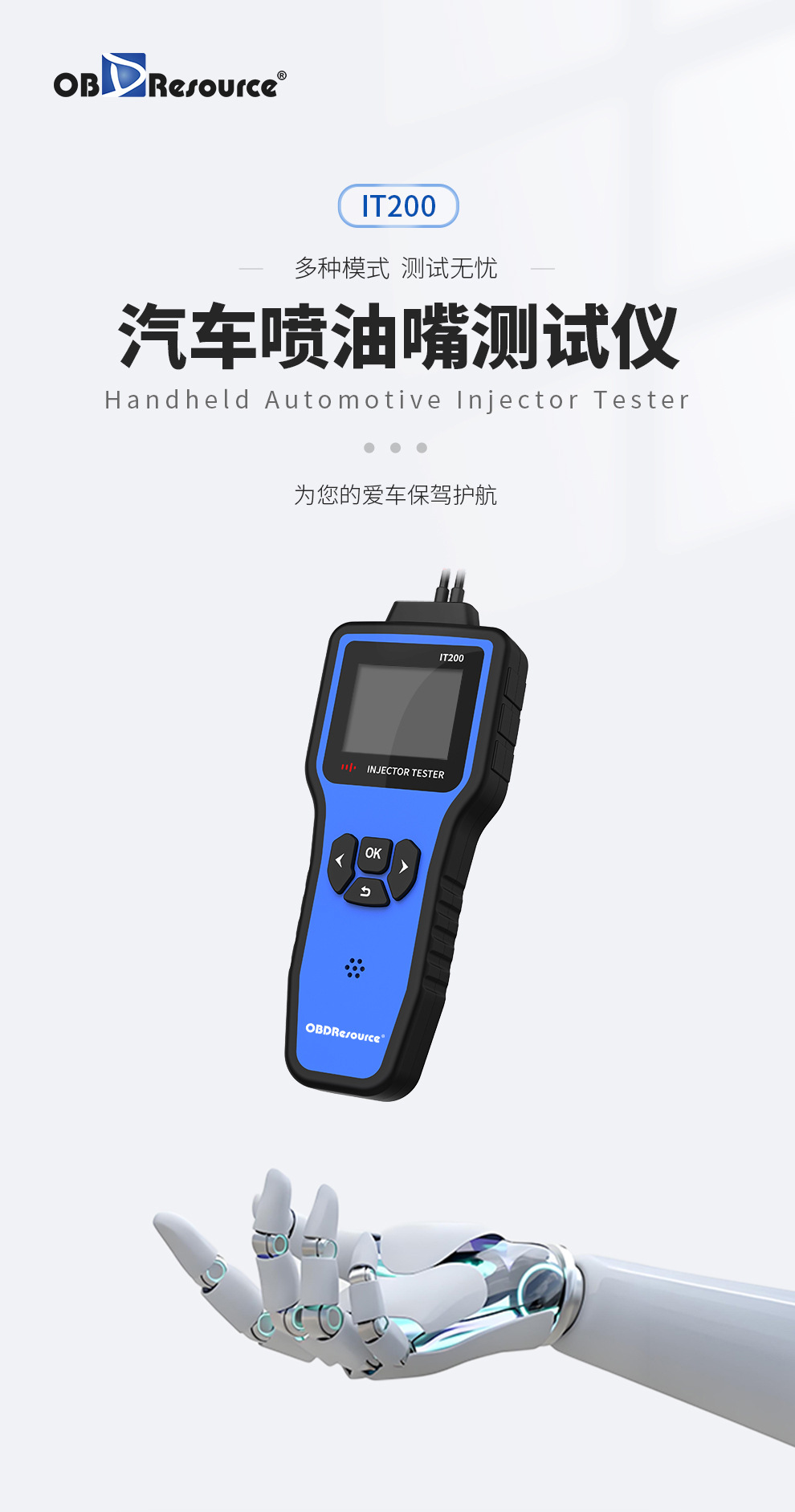

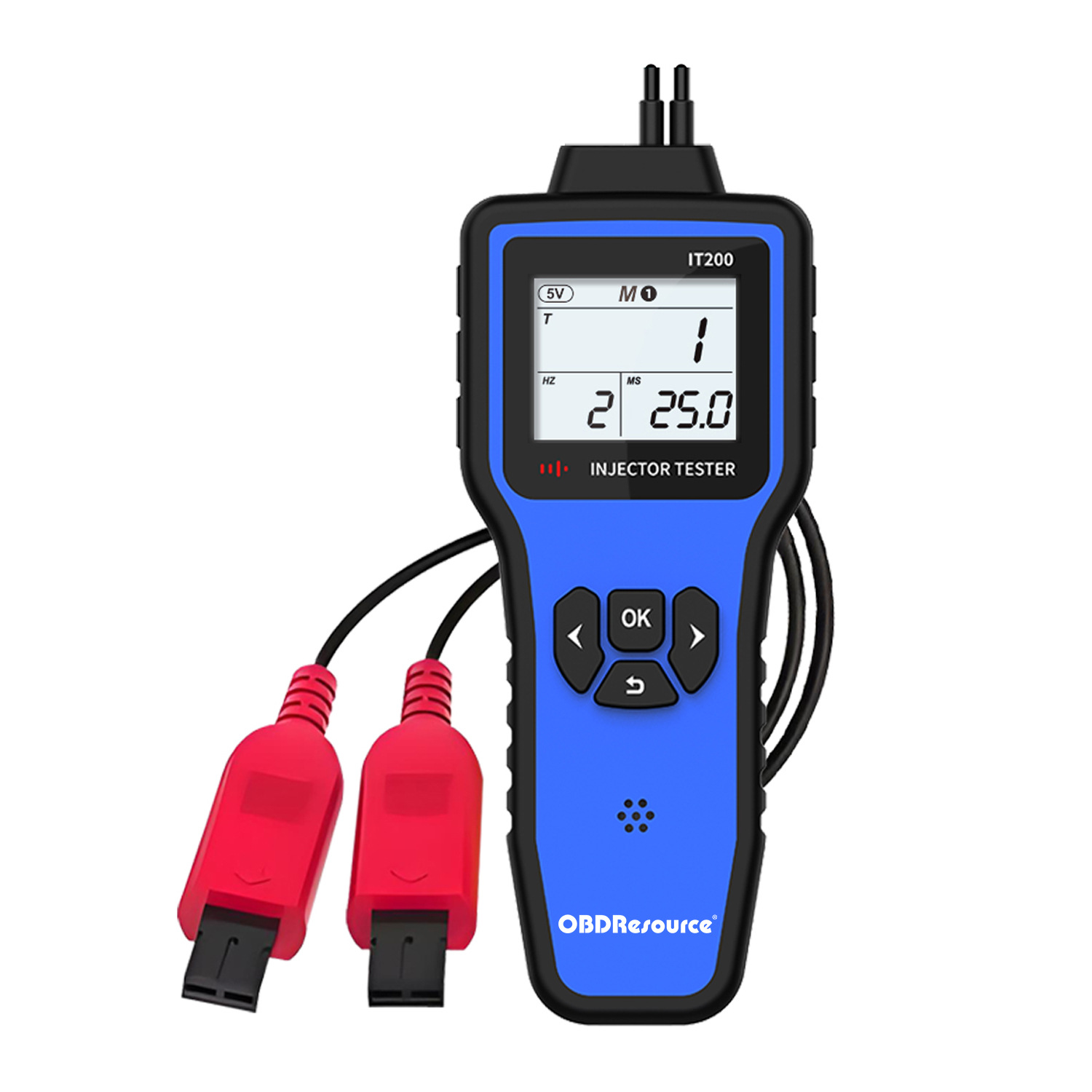

Тестер автомобильных топливных форсунок 5В/12В, модель IT200, с защитой от короткого замыкания, может быть настроен для работы с двойным напряжением.

Описание

包装尺寸：136x177x52mm

含包装重量：350g

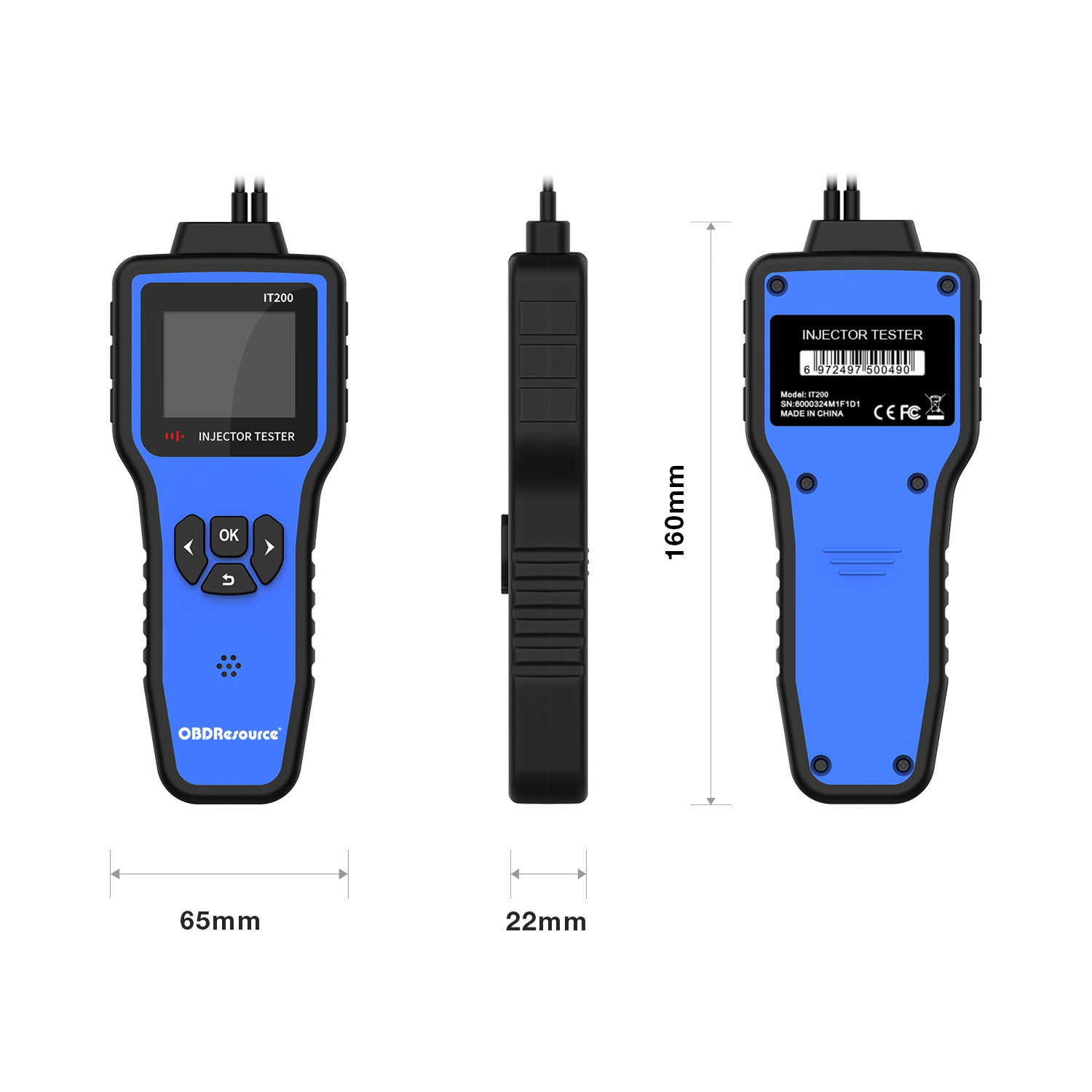

产品尺寸：160x65x22mm

标准箱尺寸：375x290x330mm

内含数量：22 pcs

海外平台限价，详情请咨询在线客服！

优点

IT200便携式双喷油嘴测试仪是OBDResource于2024年研发的一款测试喷油嘴工作状态的产品。设备通过对喷油嘴进行不同预设模式的发送PWM脉冲信号，从而可以观测喷油嘴在工作时的状态，从而判断喷油嘴的好坏。

应用

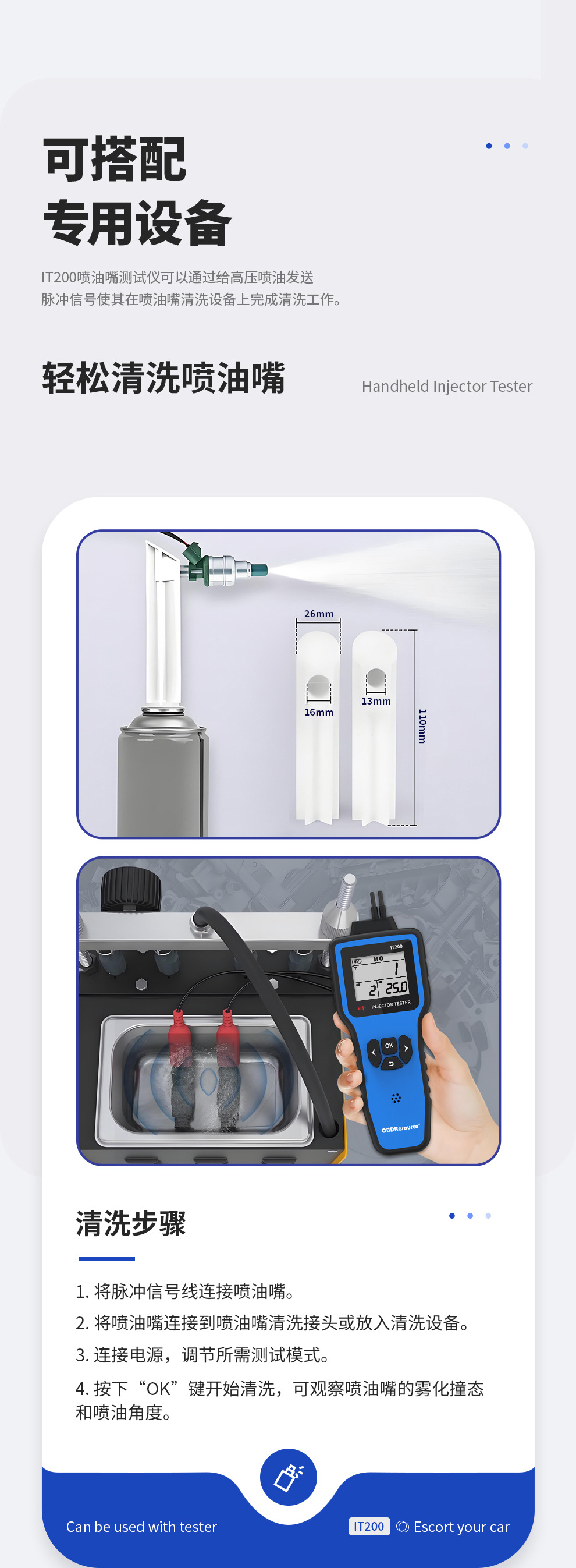

产品支持5V/12V两种电压喷油嘴，通过预设的频率和脉冲值对喷油嘴进行测试。本仪器可帮助你诊断喷油嘴问题，可以逐个测试喷油嘴以帮助确认卡滞、泄漏或燃烧完毕状况。使用DC插孔电源适配器供电，连续工作模式可以在发动机关闭的情况下识别喷油嘴的好坏，本仪器可与任何燃油压力测试仪配合使用。

技术参数

手持式喷油嘴测试仪-IT200产品简述

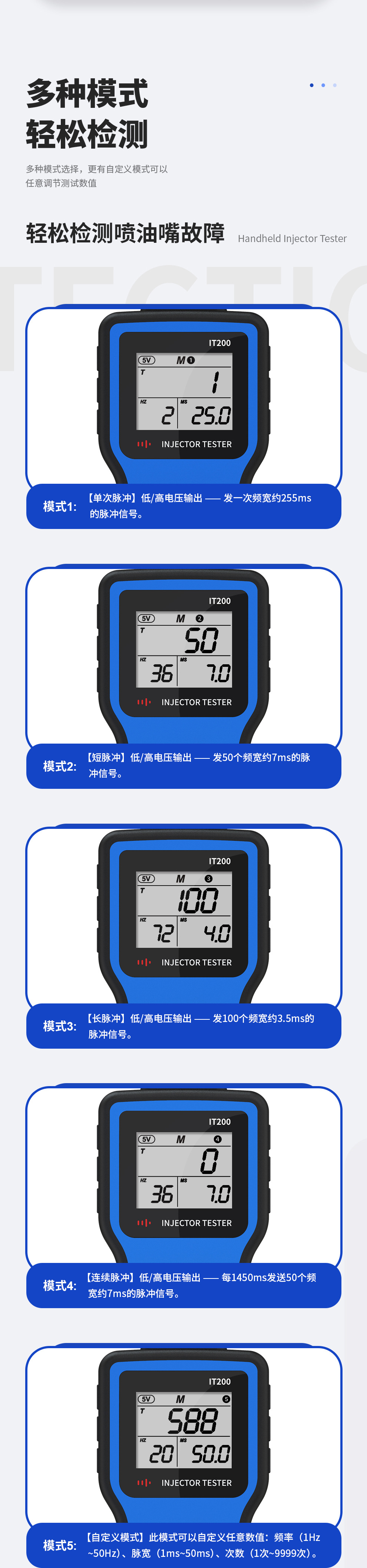

1. 支持5种工作模式 （模式1~模式4为预设模式，模式5为自定义模式【自定义脉宽、频率、测试次数】）

2. 支持5V/12V两种不同电压喷油嘴测试

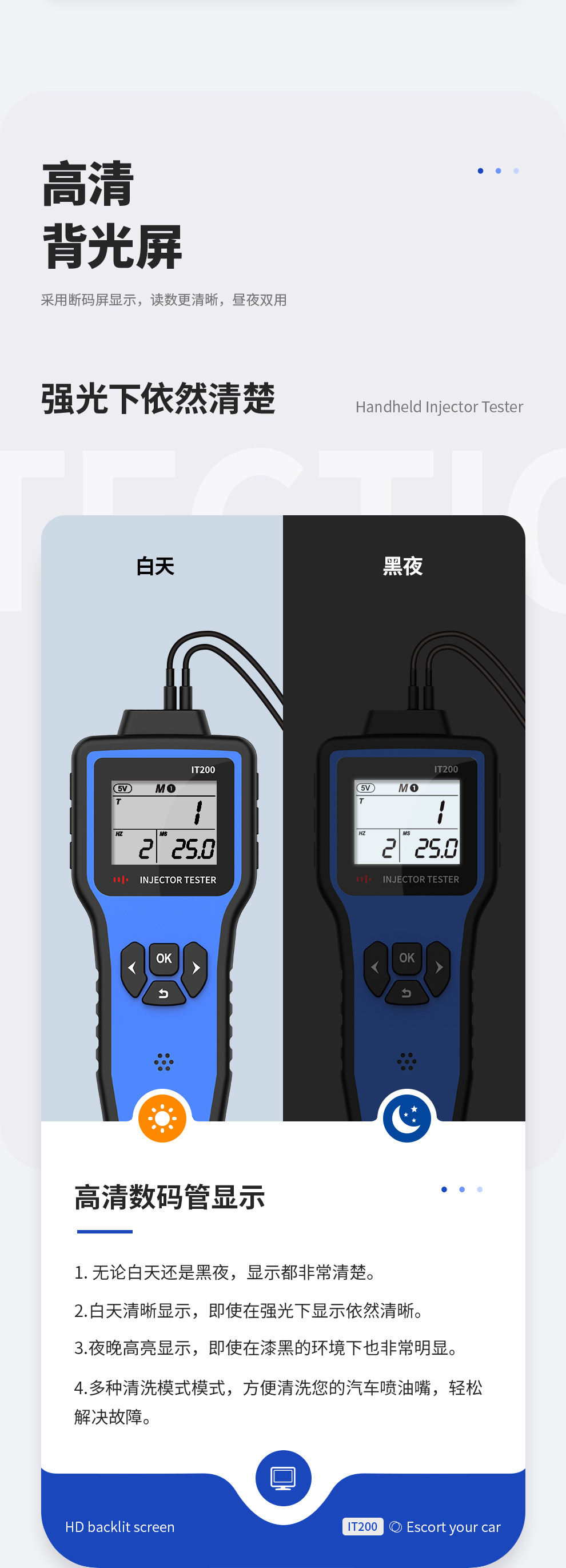

3. 高清屏幕显示，显示频率、脉宽、测试次数等参数信息，测试结果清晰可见

4. 喷油嘴对插专用接头（市面上多数为端子线，寿命短）品质保证

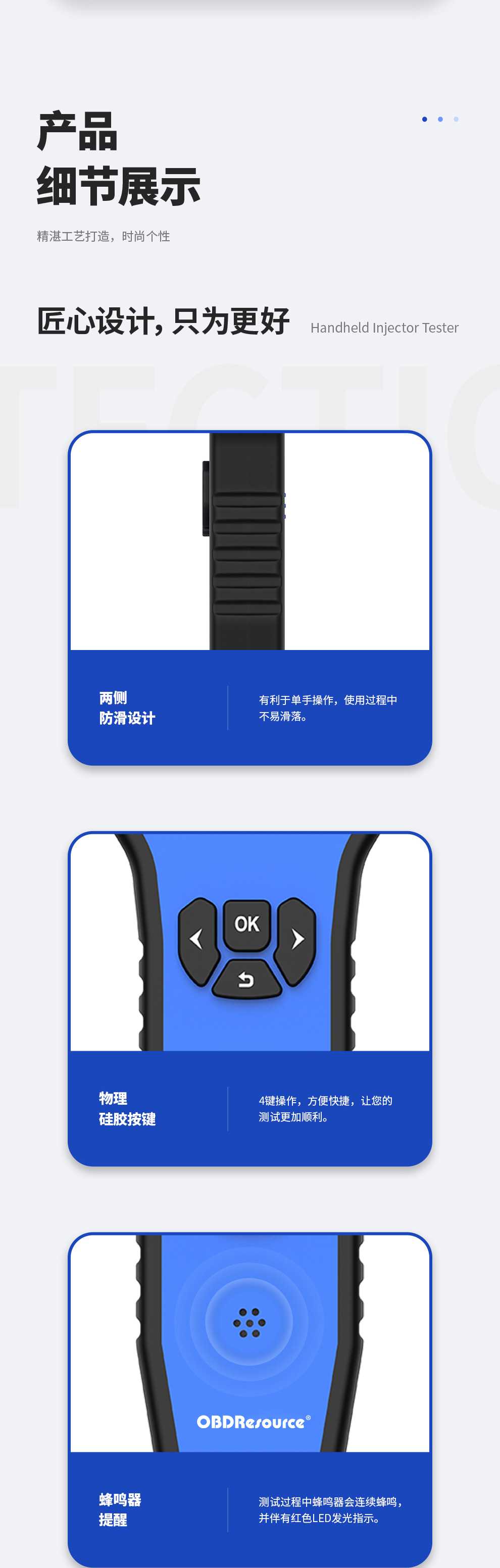

5. 蜂鸣器提示，测试过程种提示

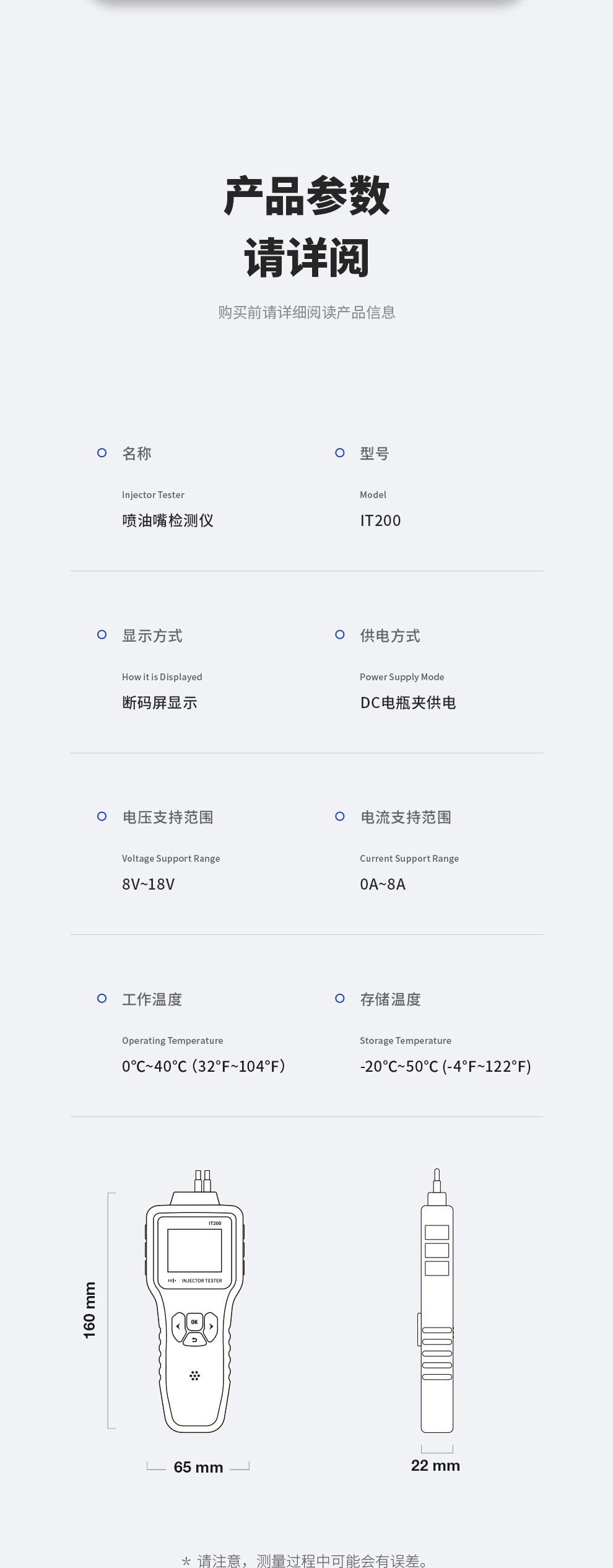

6. 输入电压支持VDC 8V~18V

7. 输出电压支持VDC 0V~80V

8. 电流支持 0A~8A

9. 短路保护（测试过程中有短路情况，毫秒级保护设备）

10. 支持12V 2A电源适配器供电和外部汽车电瓶供电2种供电方式

11. 一拖二，可同时测试2个喷油嘴，便于比对

======================================================

Advantage

The IT200 Portable Dual Injector Tester is a product developed by OBDResource in 2024 to test the operating condition of fuel injectors. The device sends PWM pulse signals to the injectors in different preset modes, allowing for the observation of the inj

Application

The device supports both 5V and 12V fuel injectors and tests them using predefined frequencies and pulse values. This instrument can help you diagnose injector issues by testing each injector individually to identify sticking, leaking, or complete burnout

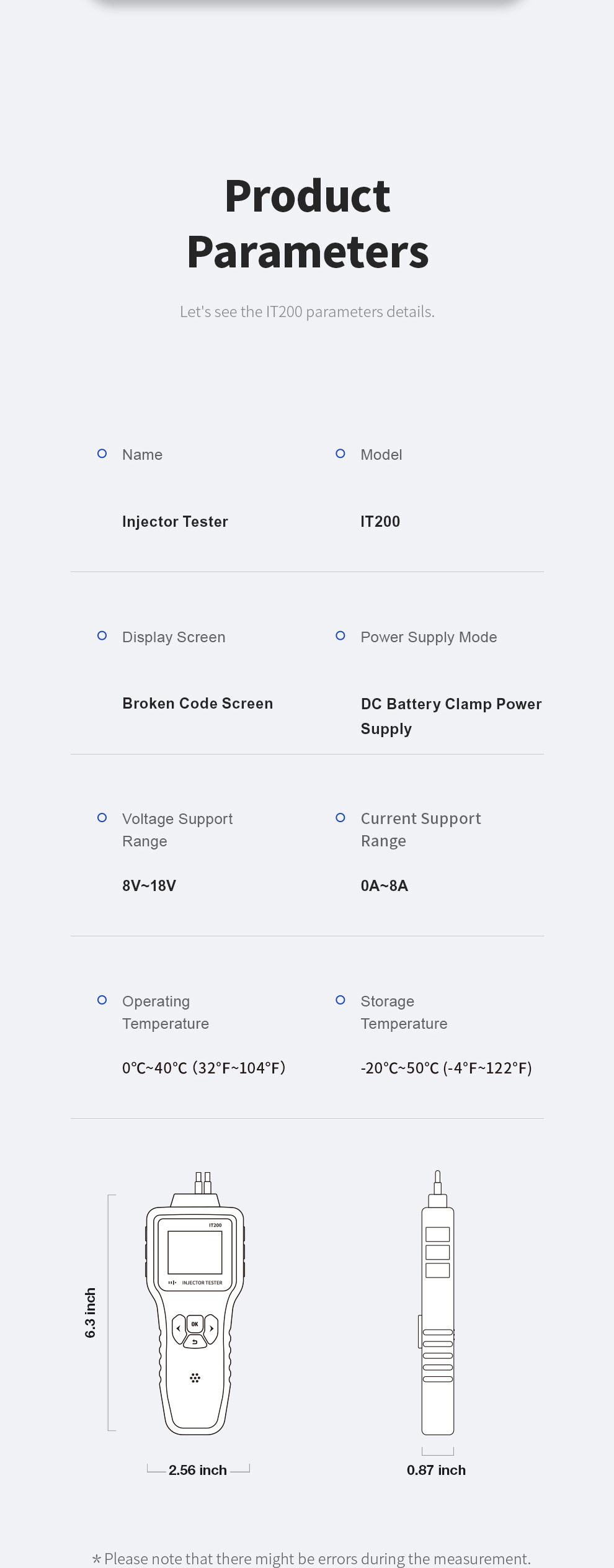

Technical parameter

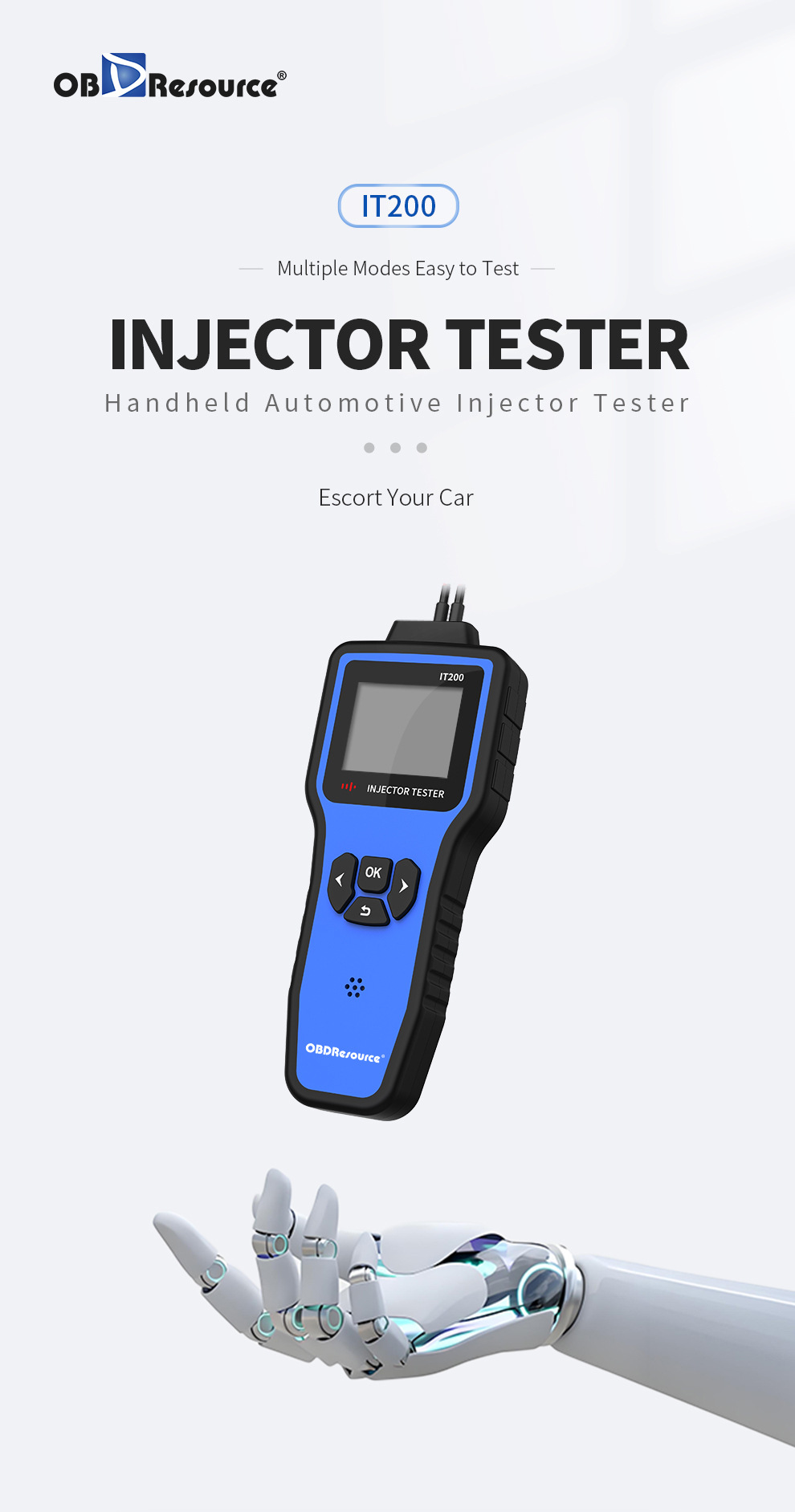

IT200 Portable Dual Injector Tester

 - IT200 Product Overview

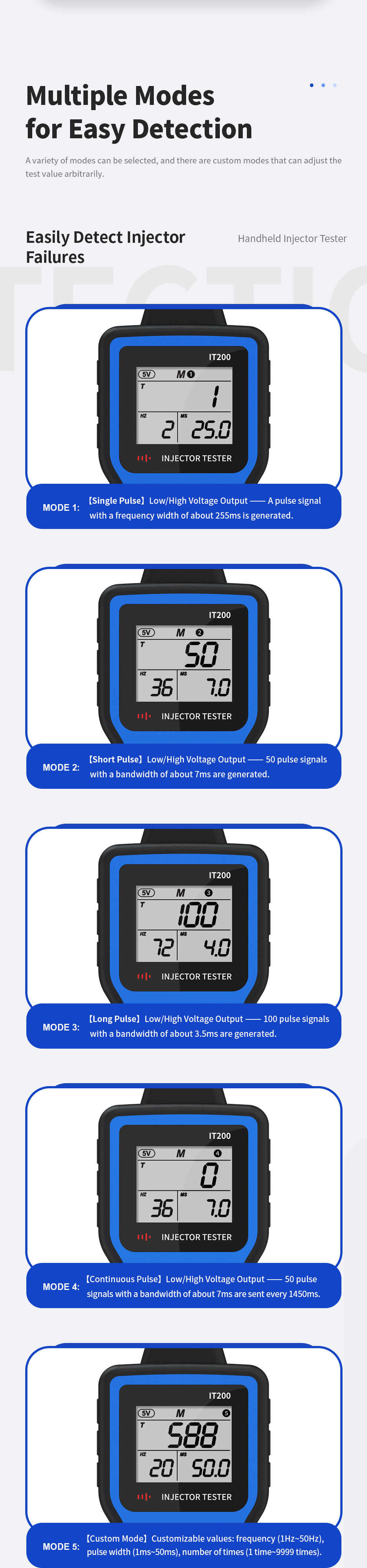

1. Supports 5 Operating Modes

• Modes 1 to 4 are preset modes, Mode 5 is a custom mode (customizable pulse width, frequency, and test count).

2. Supports 5V/12V Fuel Injectors

• Supports testing of fuel injectors at 5V and 12V voltages.

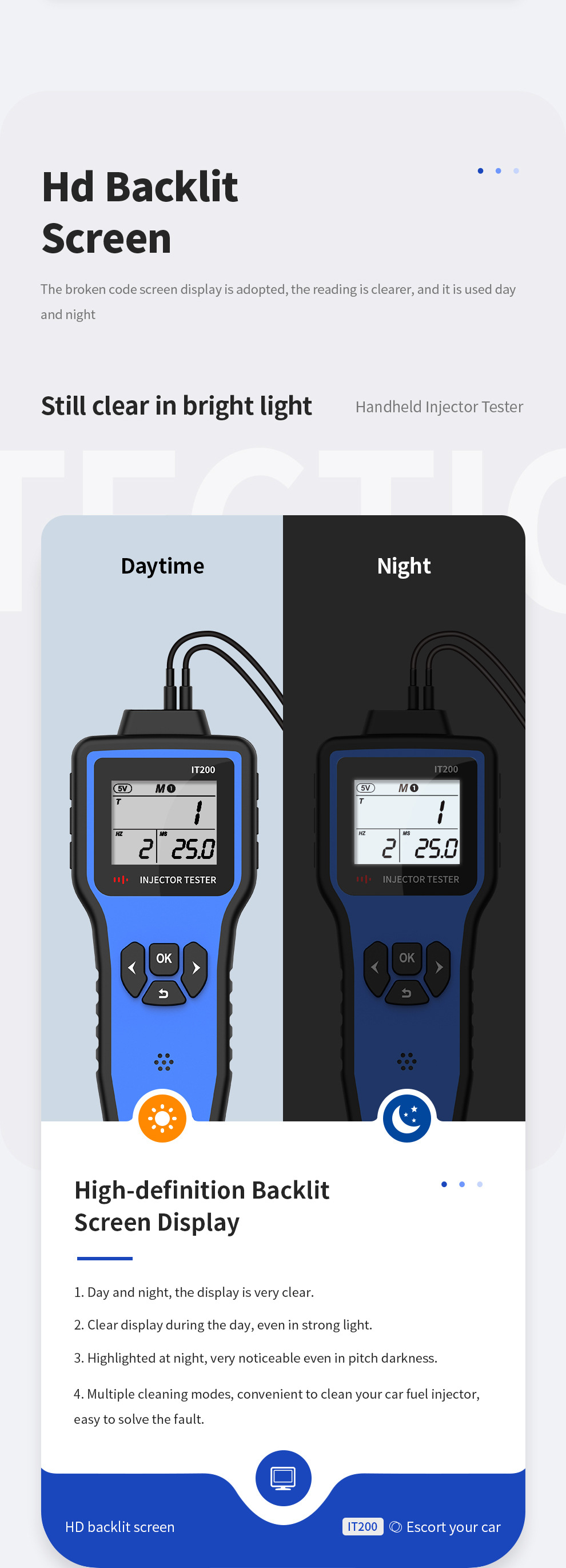

3. High-Definition Display

• Displays parameters such as frequency, pulse width, and test count, ensuring clear visibility of test results.

4. Dedicated Fuel Injector Connectors

• Uses dedicated connectors for fuel injectors (most on the market use terminal wires, which have a shorter lifespan), ensuring quality.

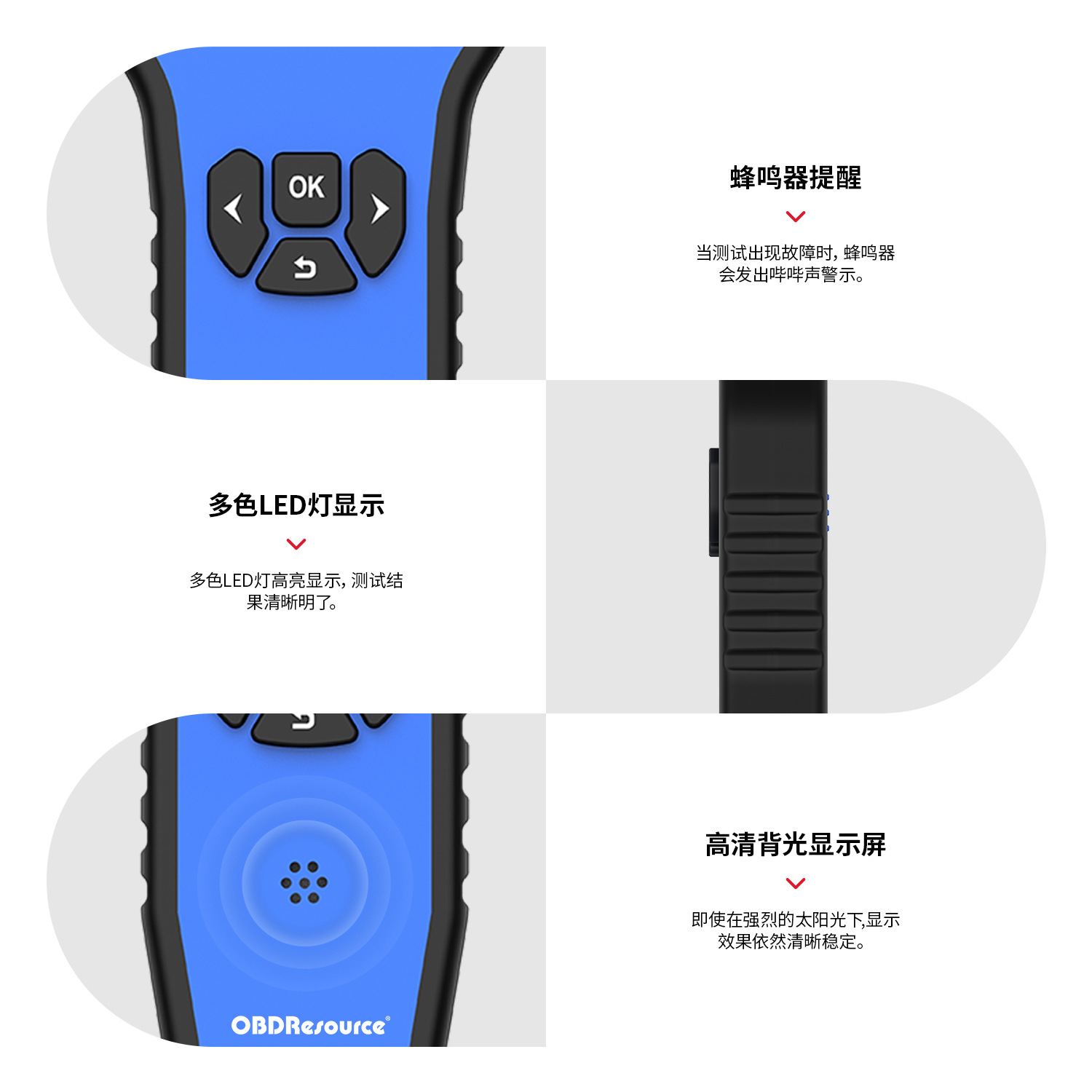

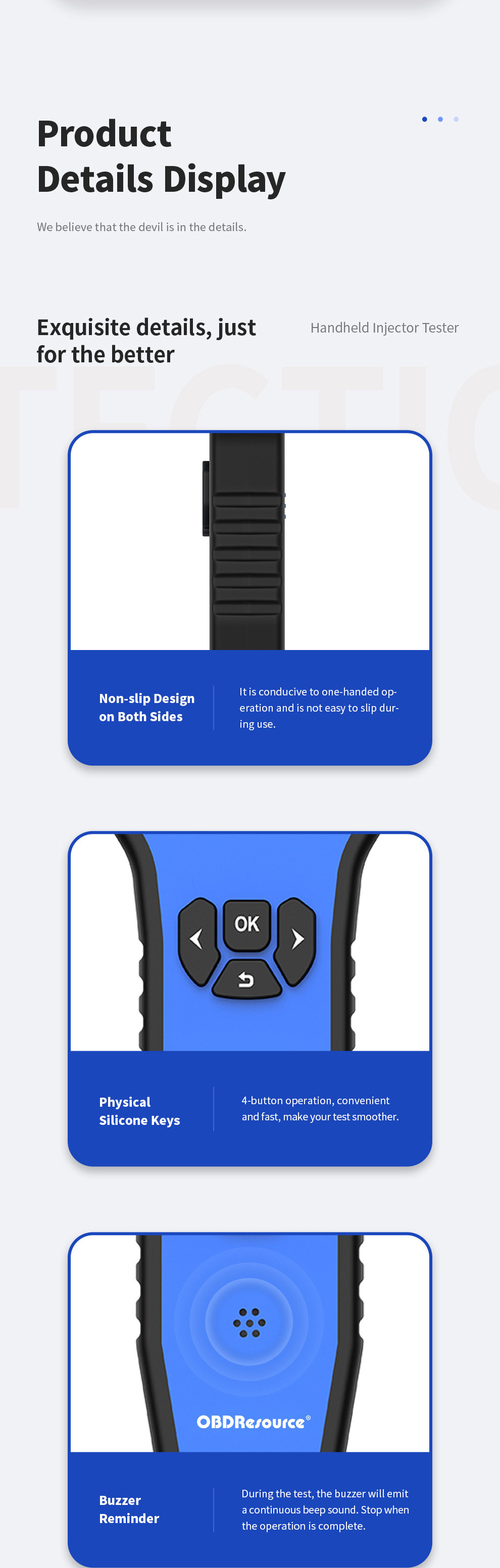

5. Buzzer Alerts

• Provides buzzer alerts during the testing process.

6. Input Voltage Support: VDC 8V~18V

• Supports input voltage from VDC 8V to 18V.

7. Output Voltage Support: VDC 0V~80V

• Supports output voltage from VDC 0V to 80V.

8. Current Support: 0A~8A

• Supports current from 0A to 8A.

9. Short-Circuit Protection

• Provides millisecond-level protection for the device in case of a short circuit during testing.

10. Two Power Supply Methods

• Supports power supply via a 12V 2A power adapter and an external car battery.

11. Simultaneous Testing of Two Injectors

• Can test two fuel injectors simultaneously, making it easy to compare results.
