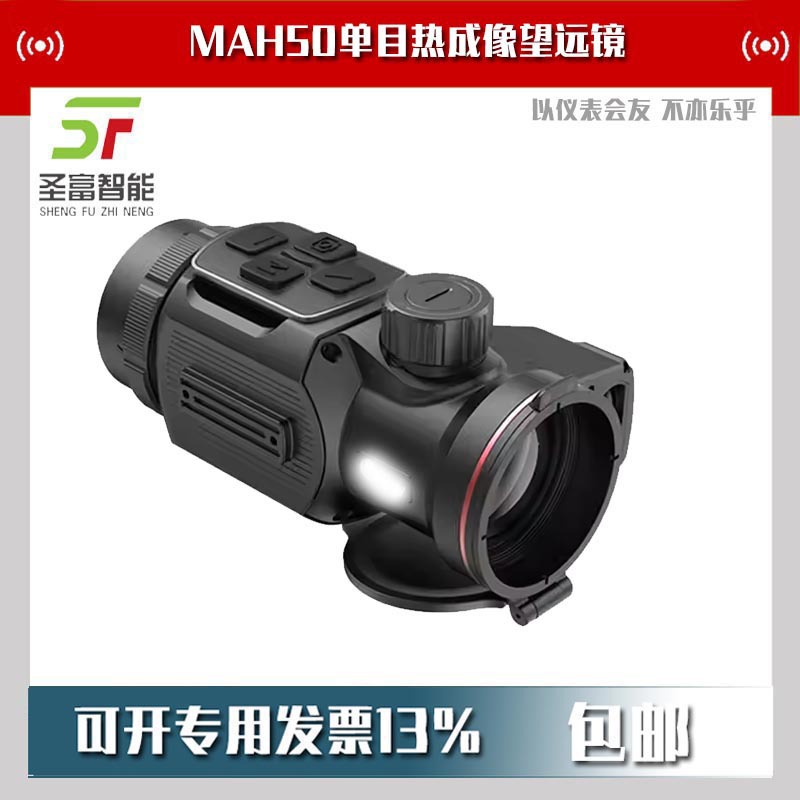

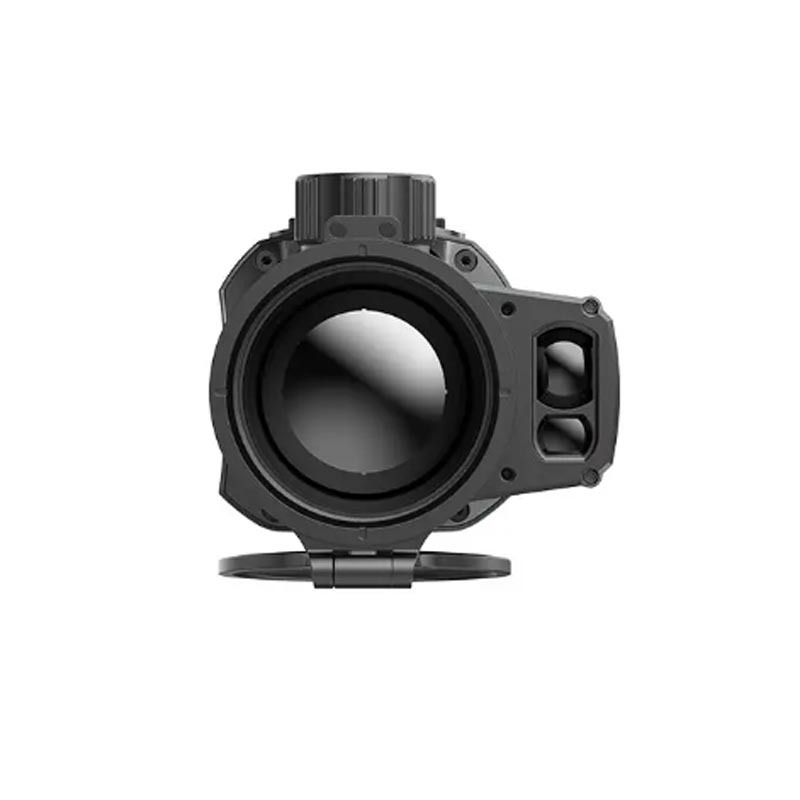

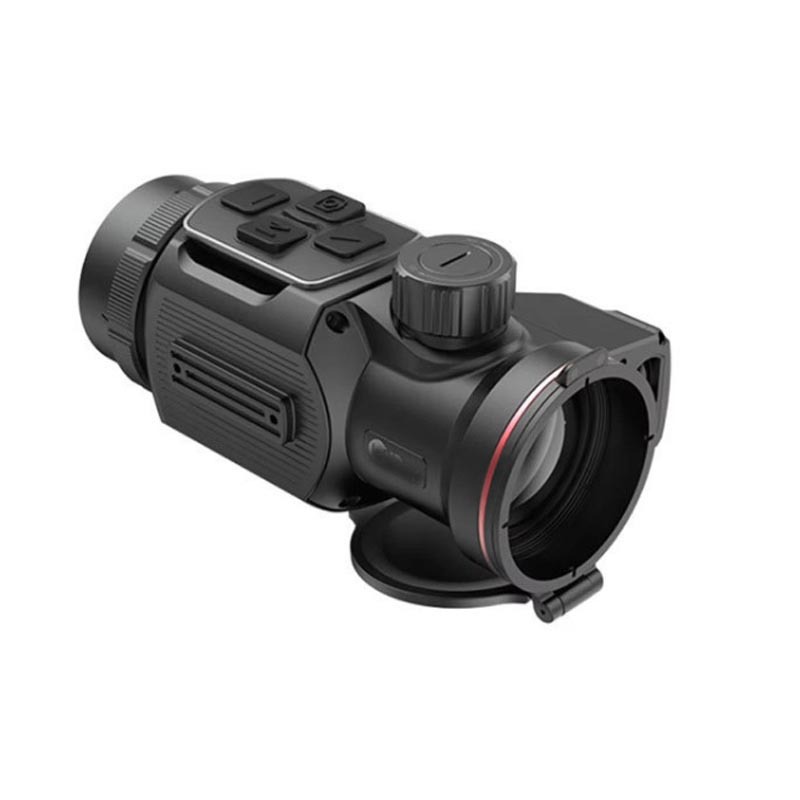

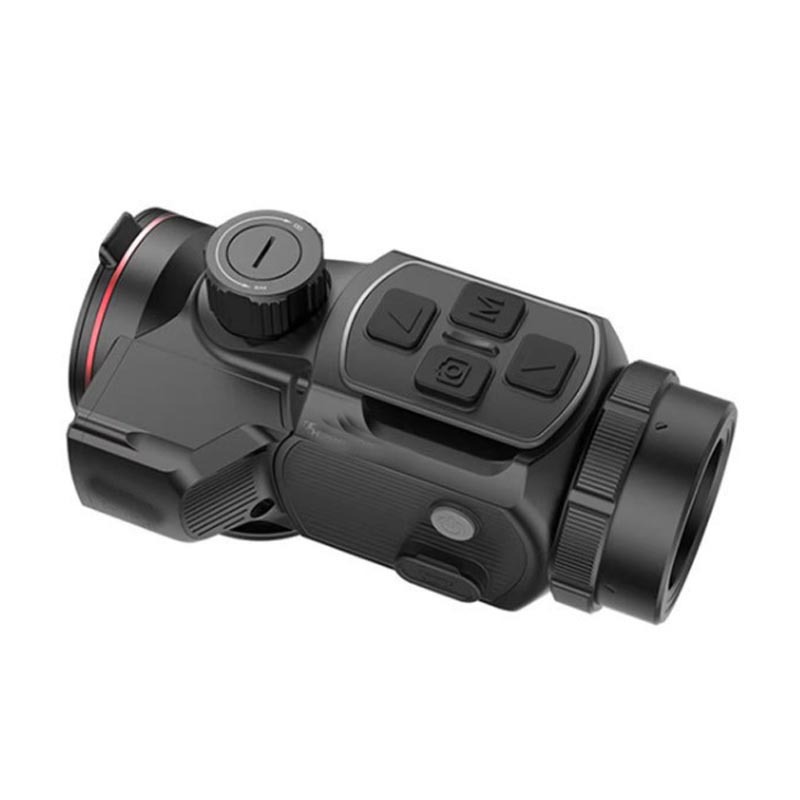

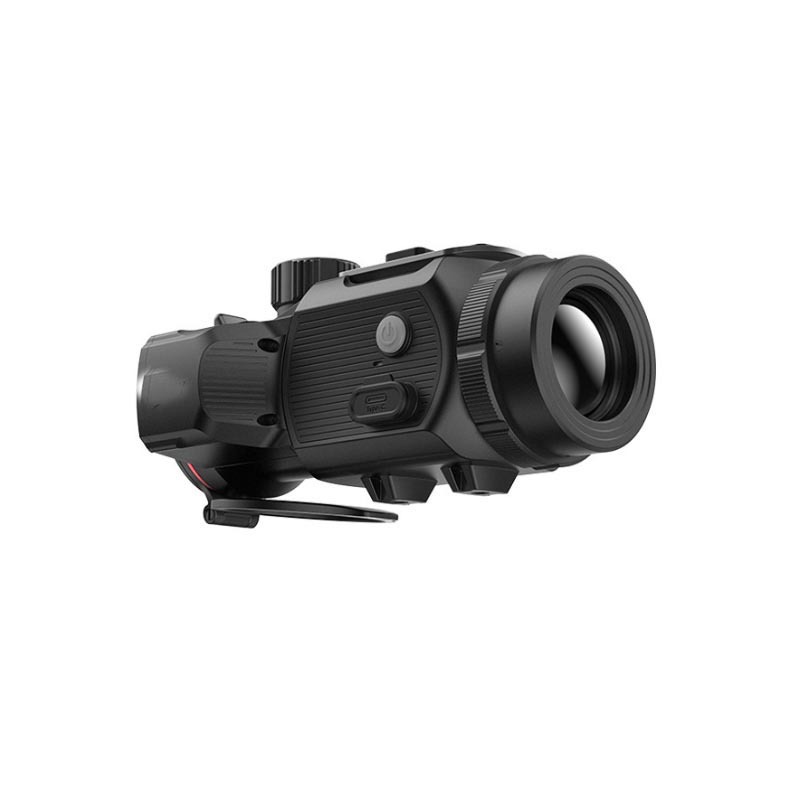

Инфракрасный тепловизор AiRui MAH50R

Mate MAH50R

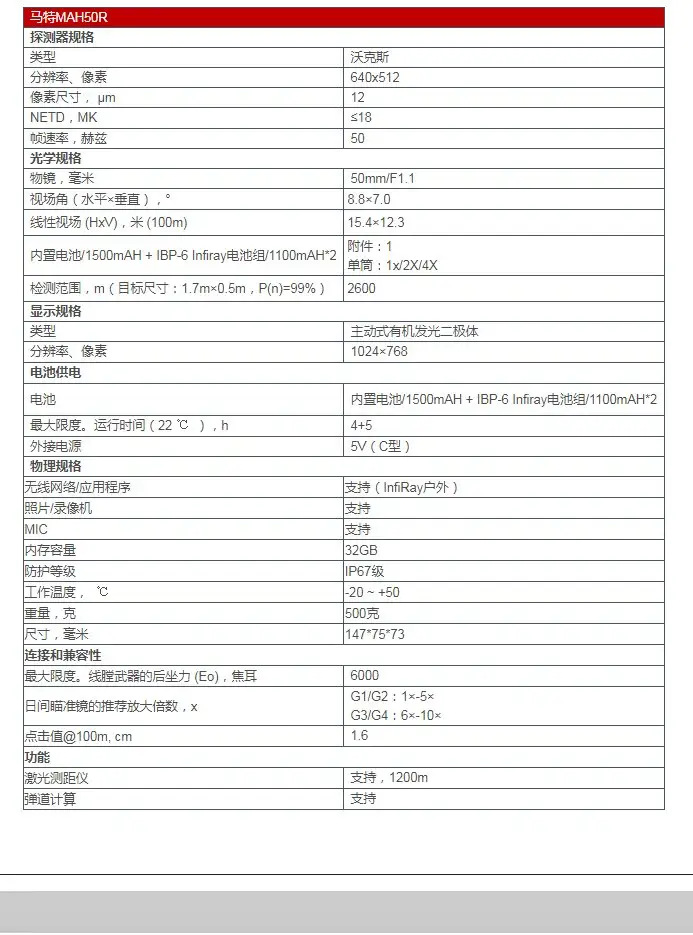

Detector Specifications

Type

Vox

Resolution, pixel

640x512

Pixel Size, μm

12

NETD, mk

≤18

Frame Rate, Hz

50

Optical Specifications

Objective Lens, mm

50mm/F1.1

Field of View (H×V), °

8.8 × 7.0

Linear Field of View (HxV), m at 100m

15.4 x 12.3

Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2

Attachment: 1

Monocular: 1x/2X/4X

Detection range, m (Target size: 1.7m×0.5m, P(n)=99%)

2600

Display Specifications

Type

AMOLED

Resolution, pixels

1024×768

Battery Power Supply

Battery

Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2

Max. operating time (22℃),h

4+5

External power supply

5V (Type C)

Physical Specifications

Wi-Fi/APP

Support (InfiRay outdoor)

Photo/video recorder

Support

MIC

Support

Memory capacity

32GB

IP rating

IP67

Operating temperature, ℃

-20 ~ +50

Weight, g

500g

Dimension, mm

147*75*73

Connections and Compatibilities

Max. recoil power on rifled weapon (Eo), Joules

6000

Recommended magnification of the day sight, x

G1/G2: 1×-5×

G3/G4: 6×-10×

Click value@100m, cm

1.6

Functions

Laser rangefinder

Support, 1200m

Ballistic calculation

Support
